Parts Location [05/2013 - ]: Illustration

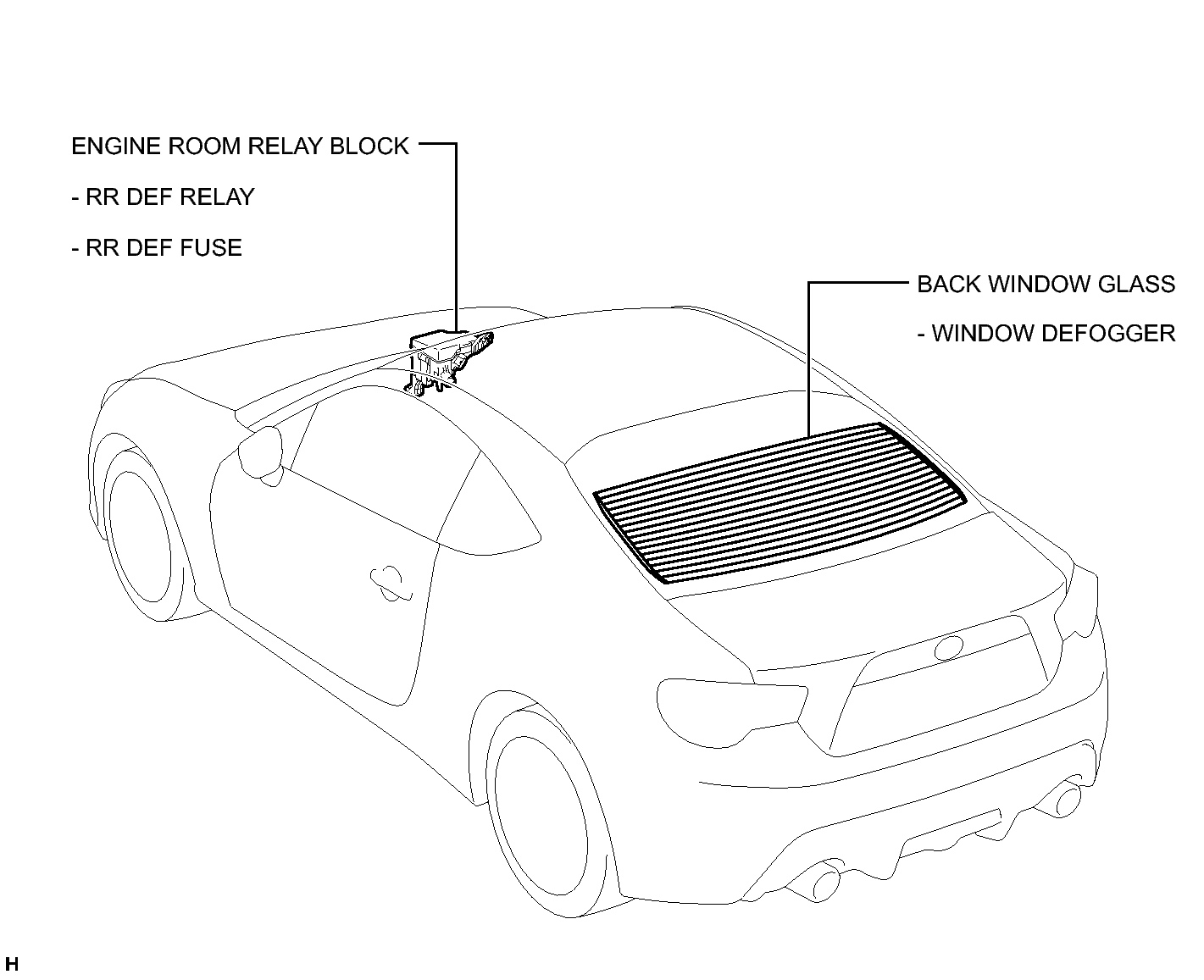

Fig 1: Identifying Window Defogger Components Location (1 Of 2)
GTY386350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

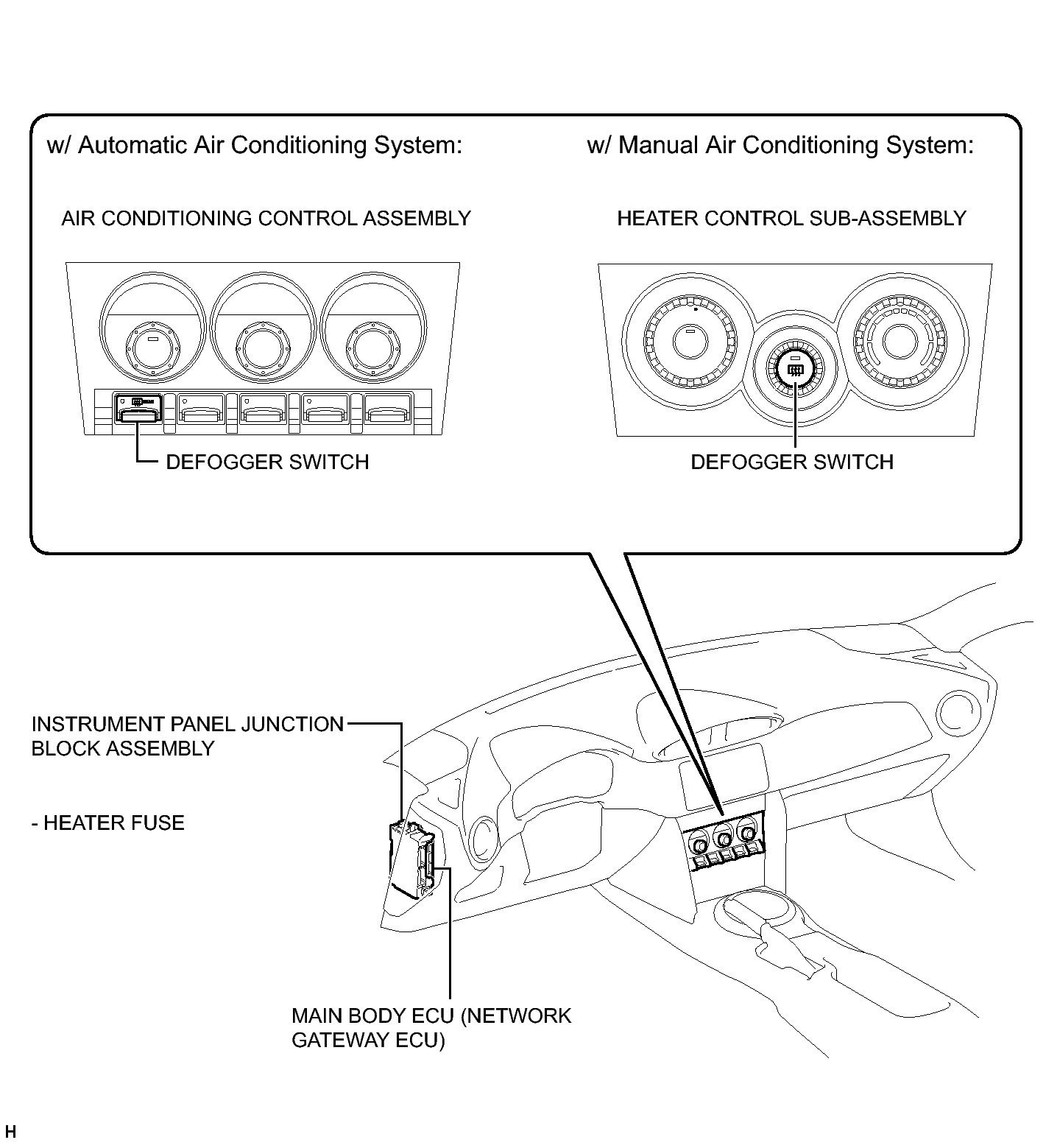

Fig 1: Identifying Window Defogger Components Location (2 Of 2)
GTY388298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
