System Diagram [05/2013 - ]

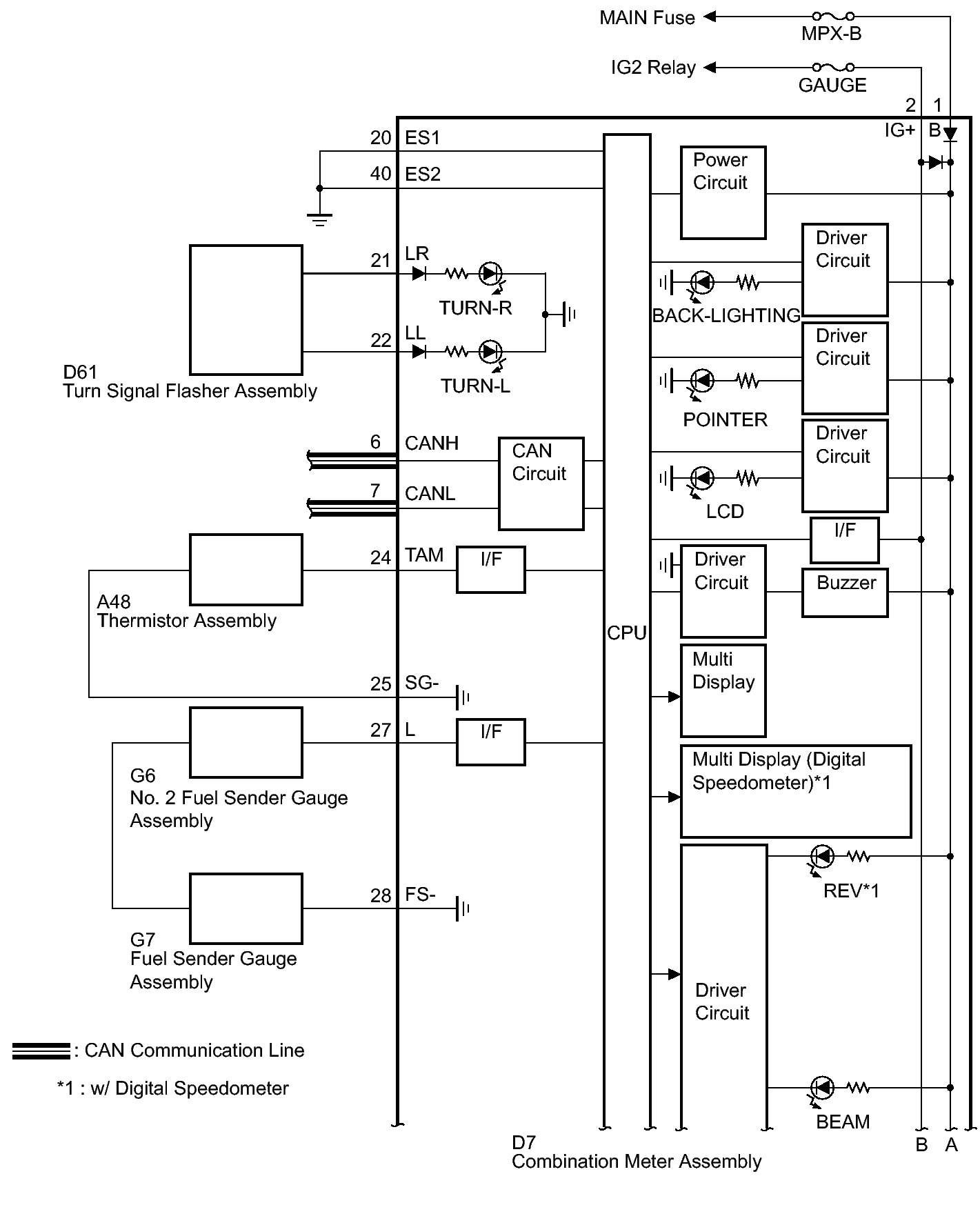

Fig 1: Identifying Meter/Gauge System Wiring Diagram (1 Of 3)
GTY388560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

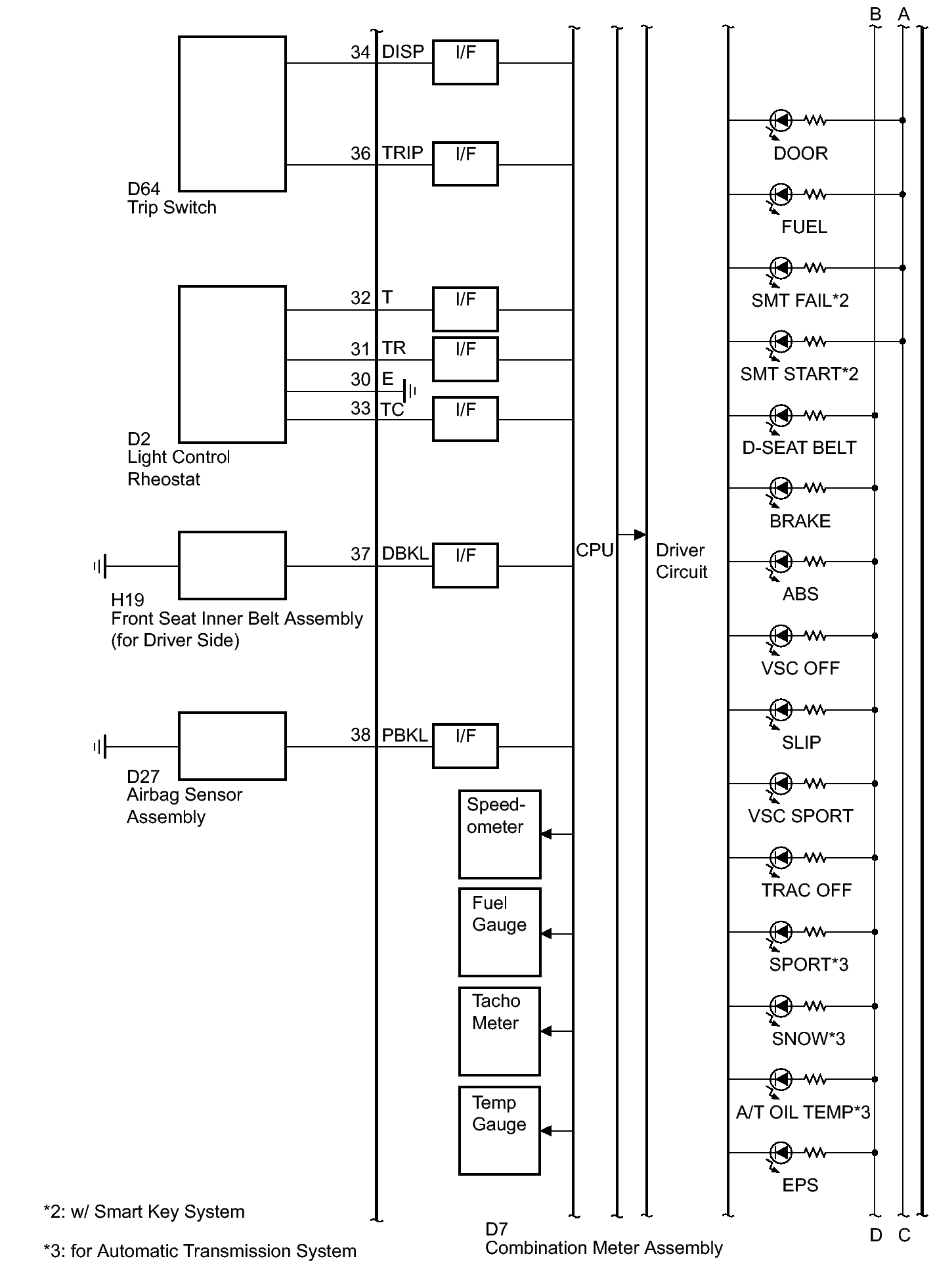

Fig 2: Identifying Meter/Gauge System Wiring Diagram (2 Of 3)
GTY389649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

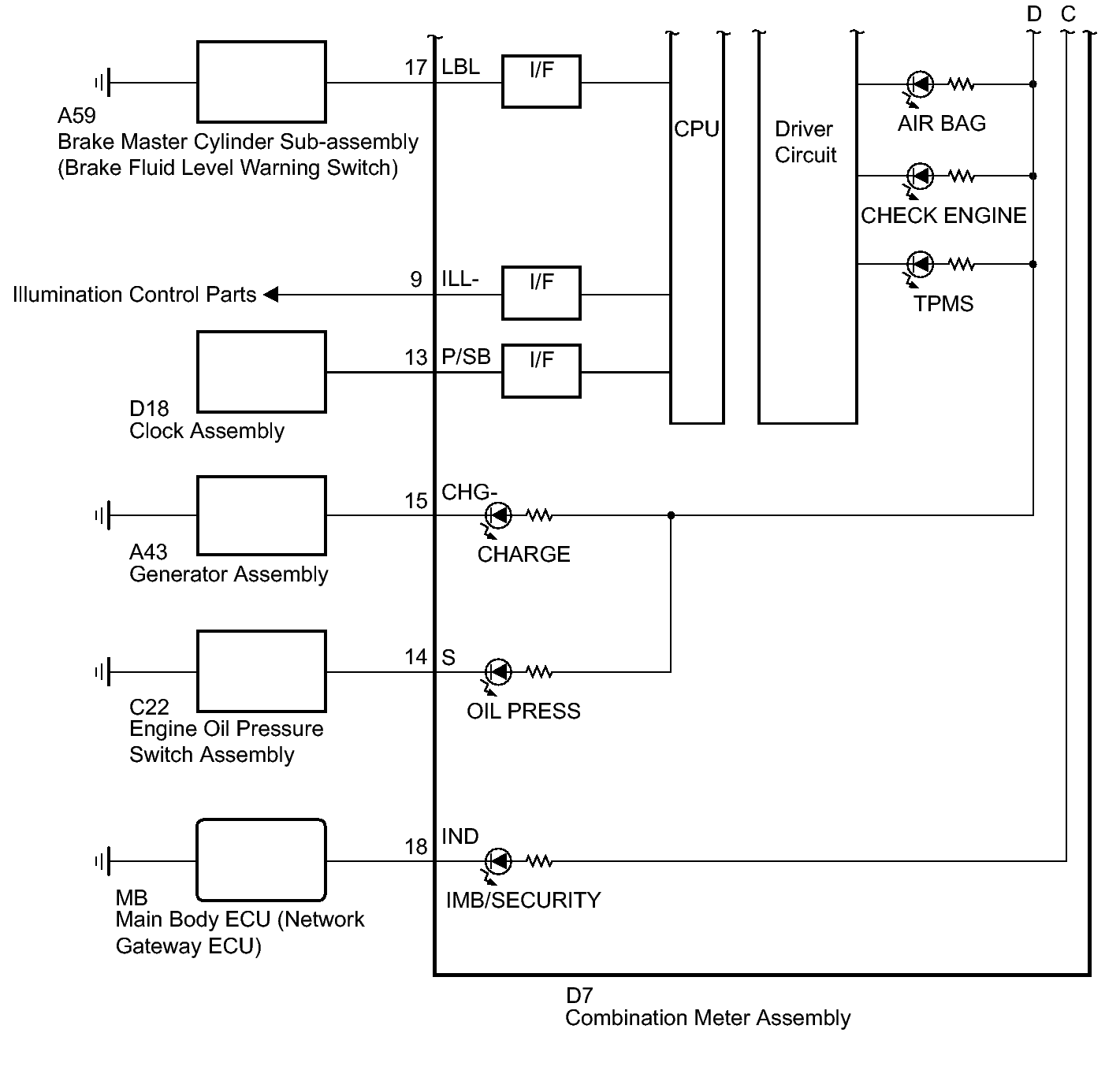

Fig 3: Identifying Meter/Gauge System Wiring Diagram (3 Of 3)
GTY387618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
