System Diagram [05/2013 - ]

  1. HEADLIGHT (w/ HID Headlight)

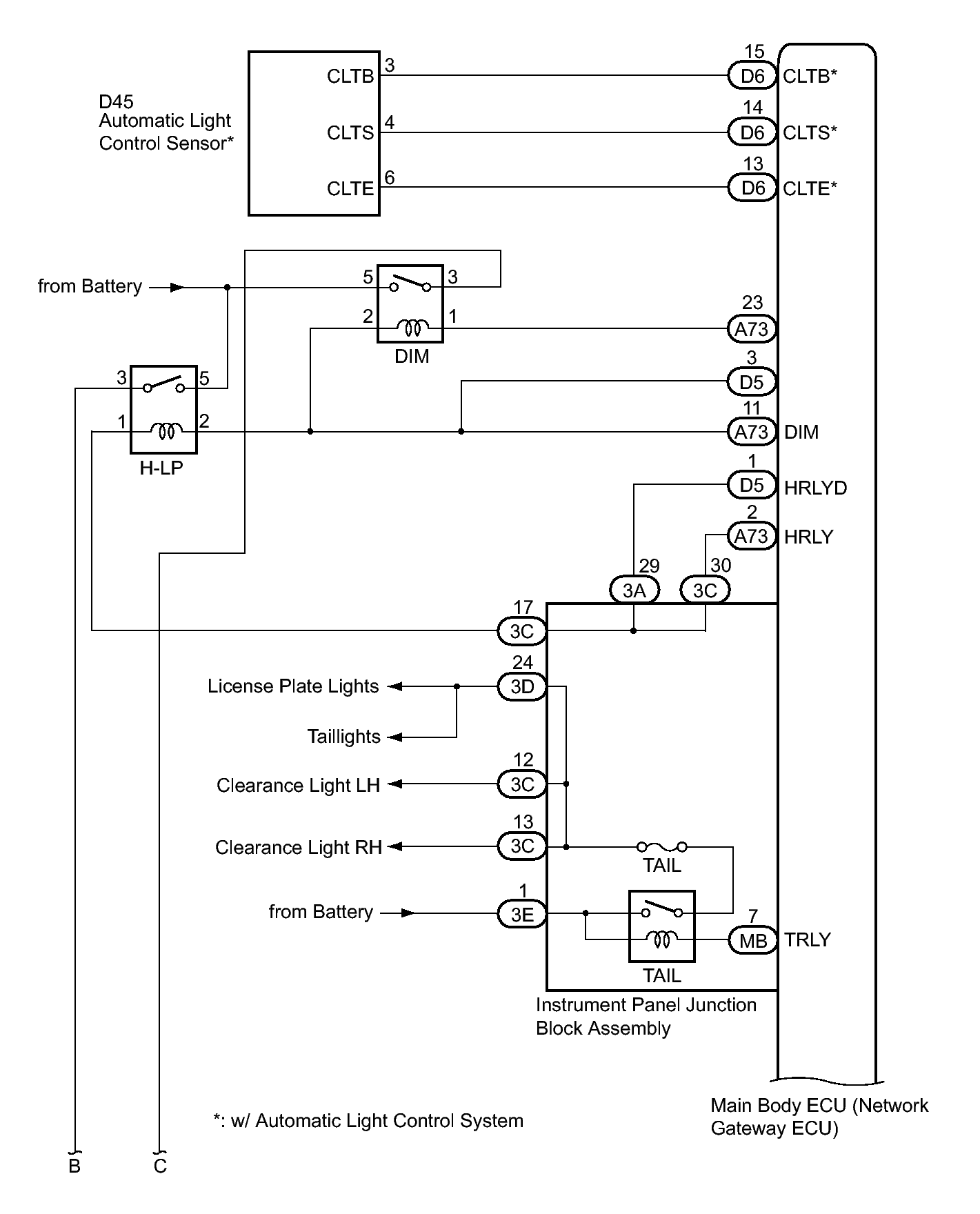

    Fig 1: Headlight (w/ HID Headlight) Circuit Diagram [05/2013 - ] (1 Of 2)
    GTY391014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

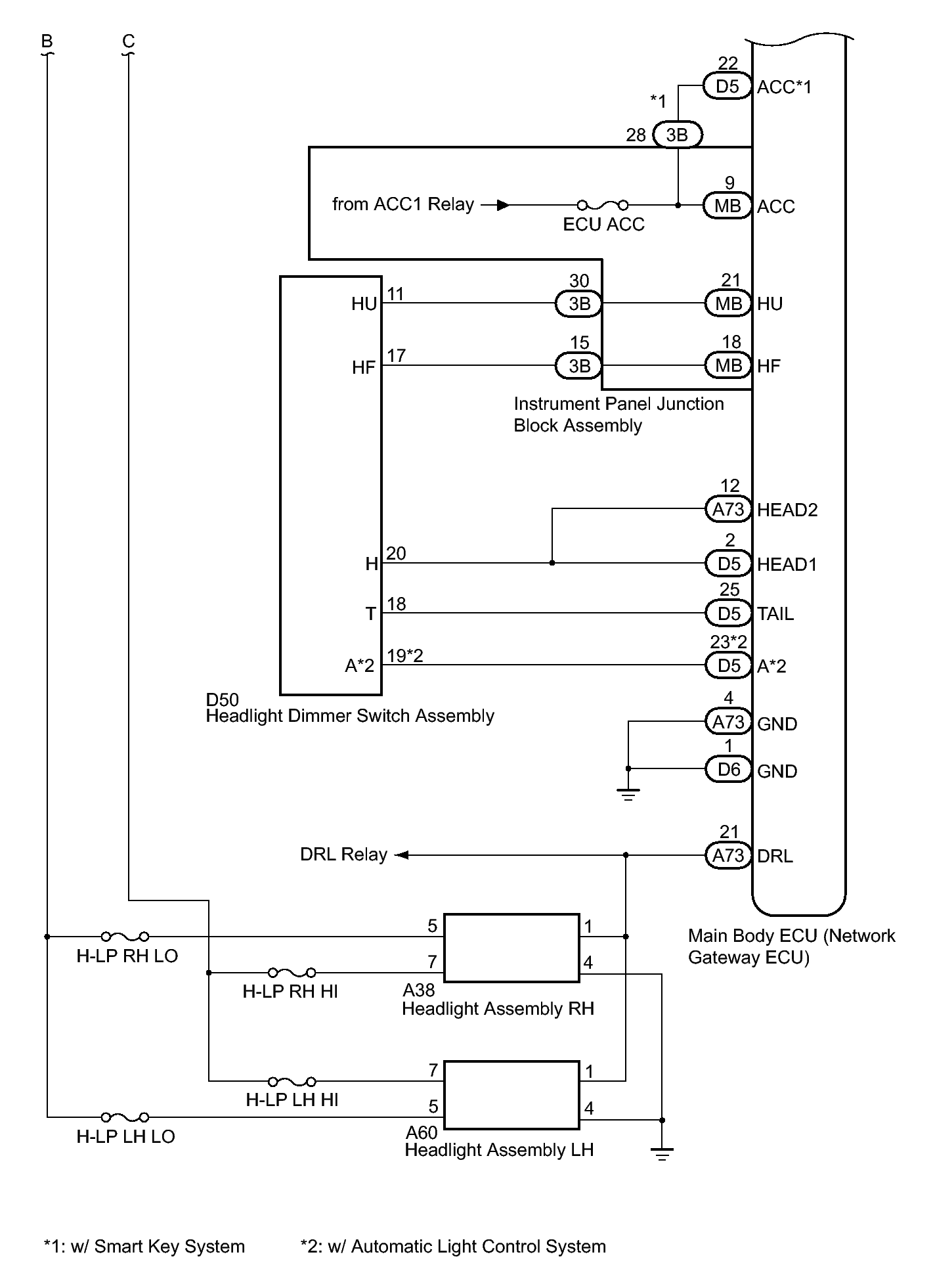

    Fig 2: Headlight (w/ HID Headlight) Circuit Diagram [05/2013 - ] (2 Of 2)
    GTY391222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. HEADLIGHT (w/o HID Headlight)

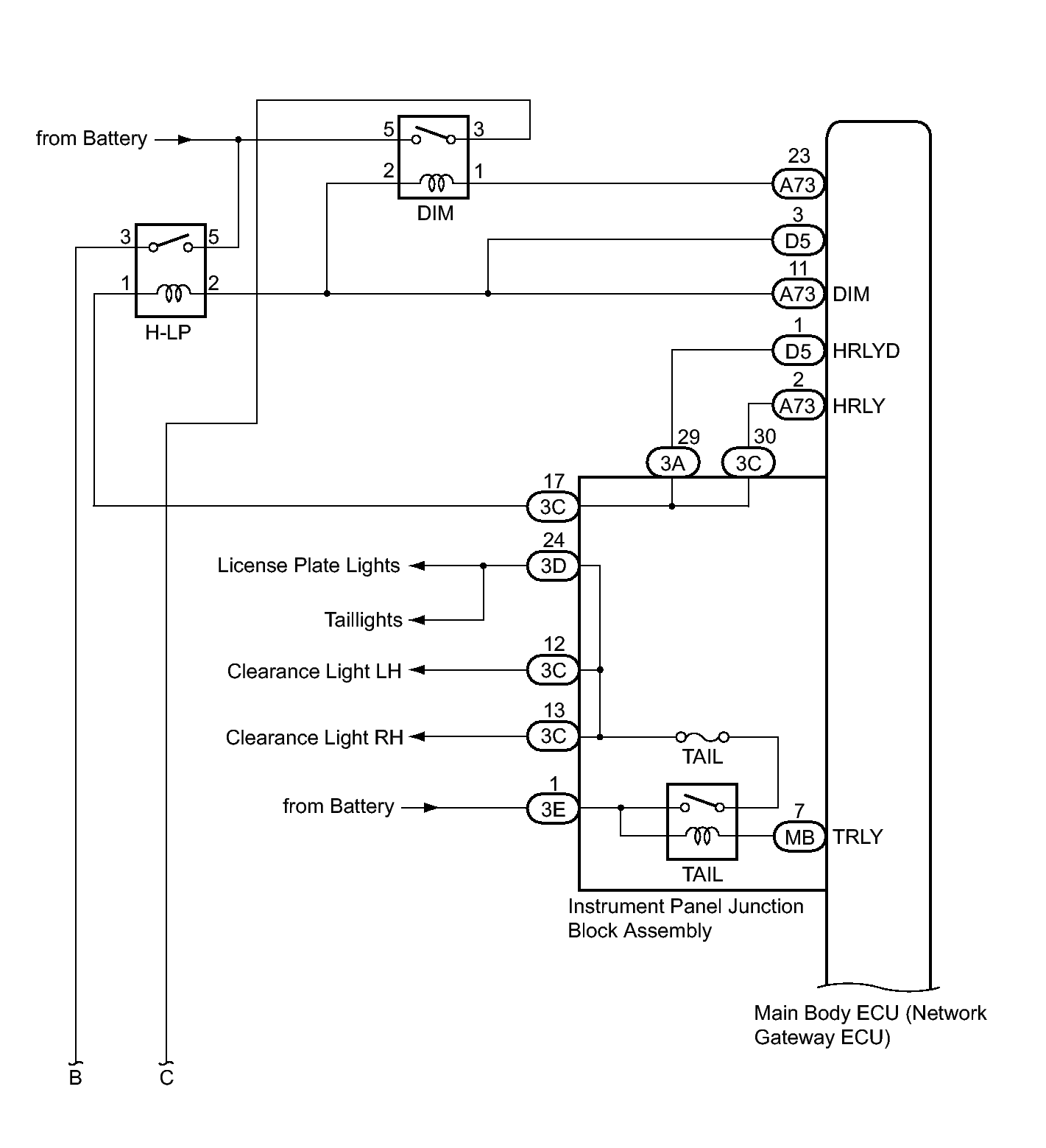

    Fig 3: Headlight (w/o HID Headlight) Circuit Diagram [05/2013 - ] (1 Of 2)
    GTY389622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

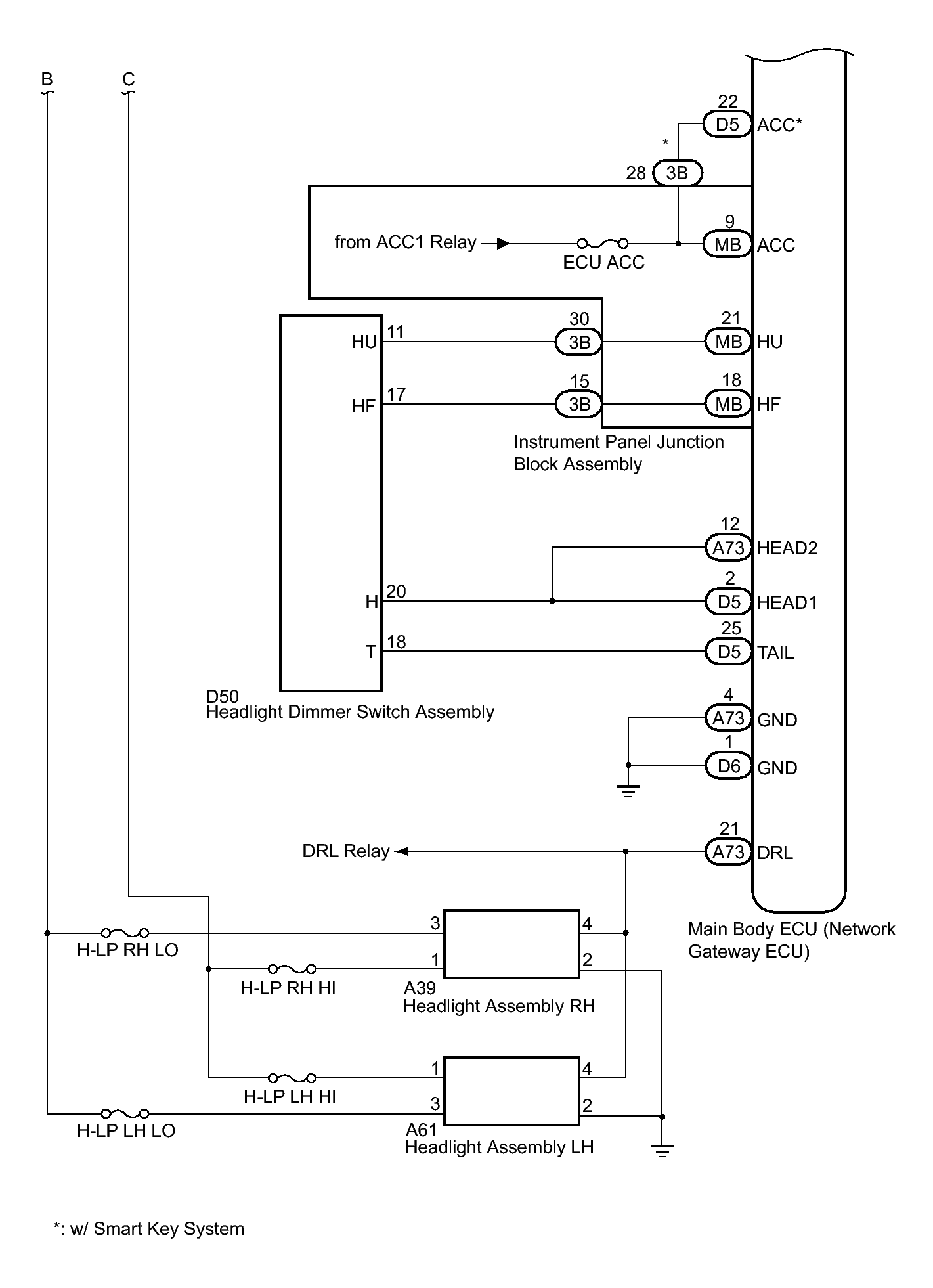

    Fig 4: Headlight (w/o HID Headlight) Circuit Diagram [05/2013 - ] (2 Of 2)
    GTY388686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. TURN SIGNAL LIGHT

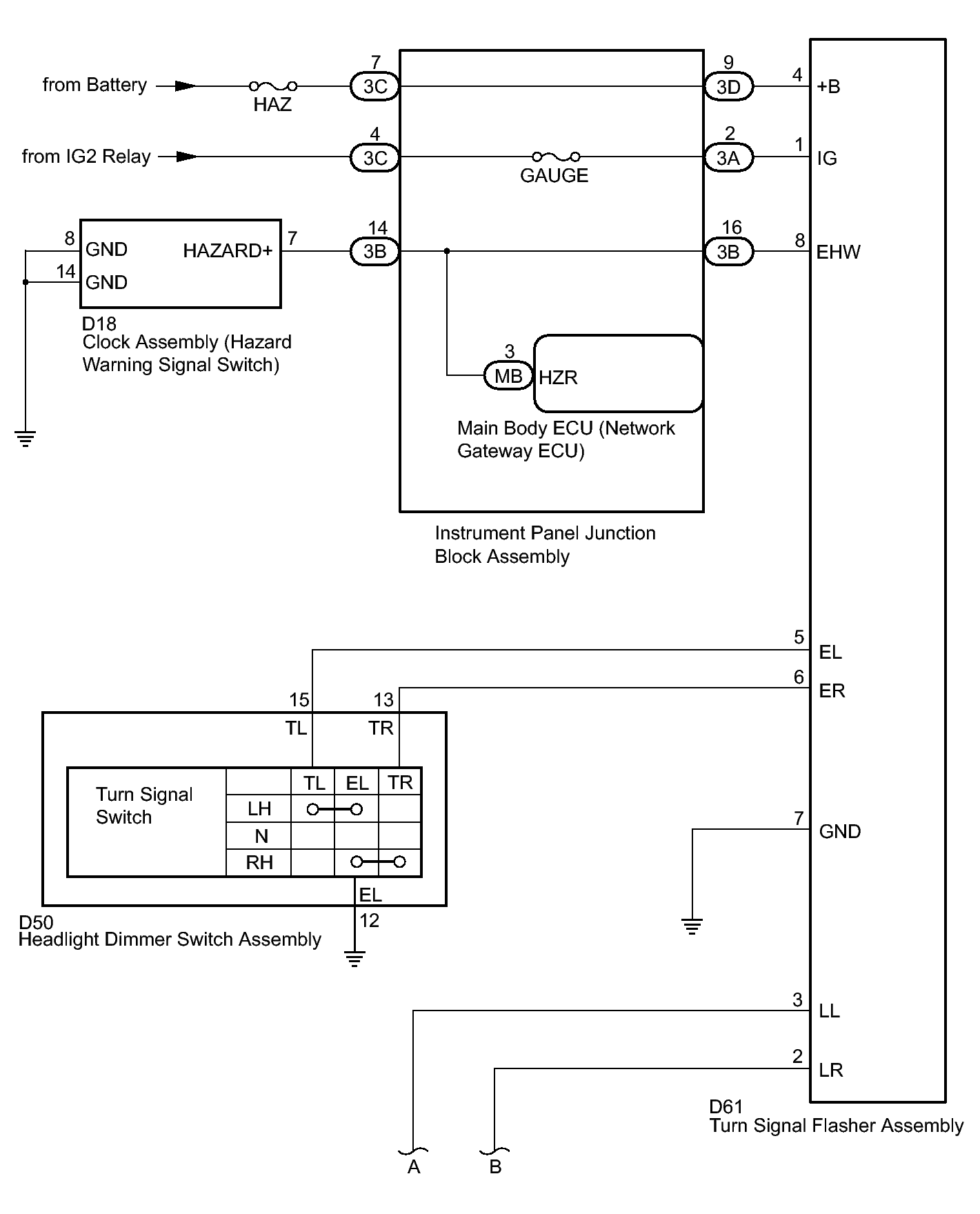

    Fig 5: Turn Signal Light Circuit Diagram [05/2013 - ] (1 Of 2)
    GTY388521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

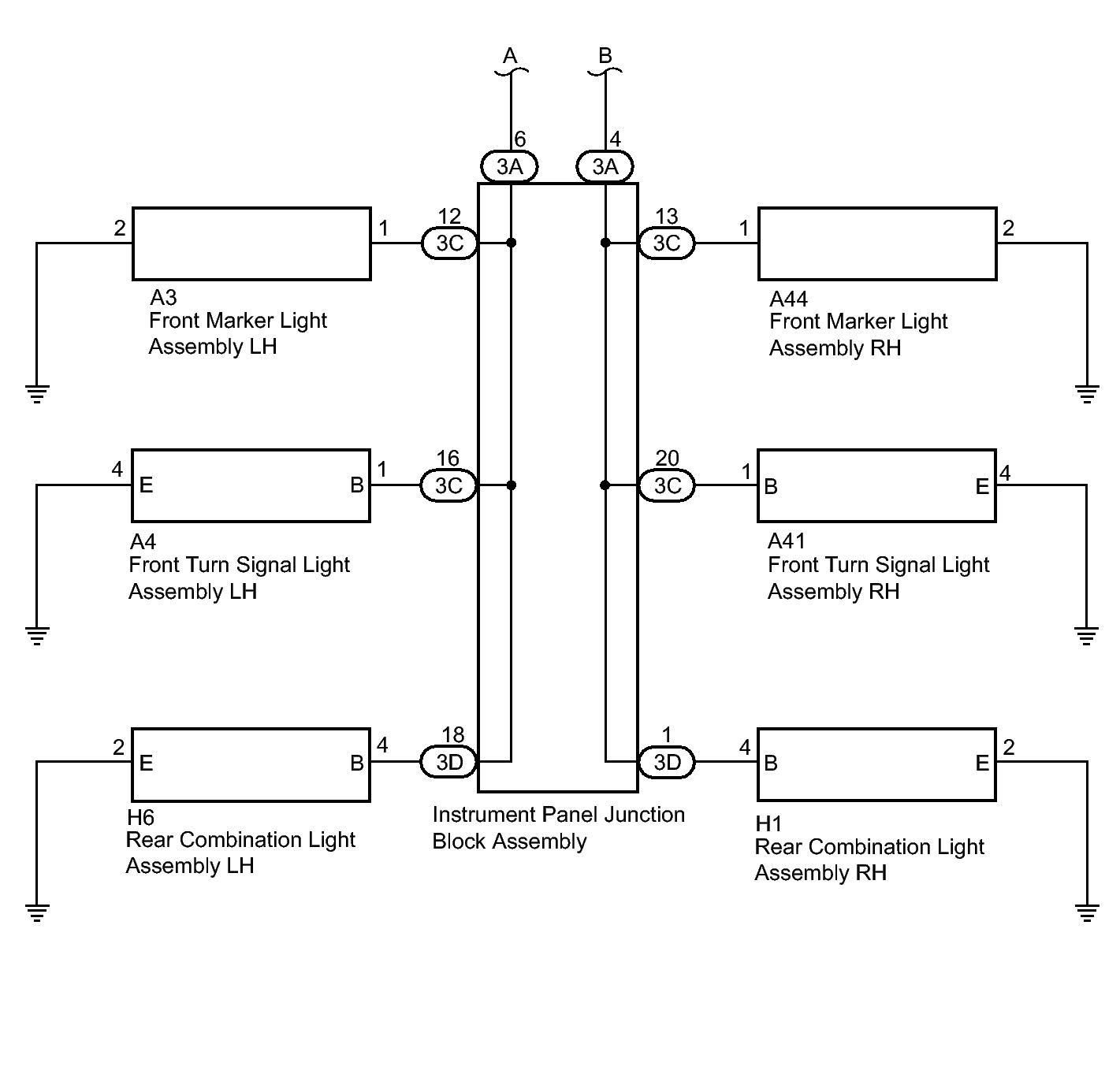

    Fig 6: Turn Signal Light Circuit Diagram [05/2013 - ] (2 Of 2)
    GTY388534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. STOP LIGHT

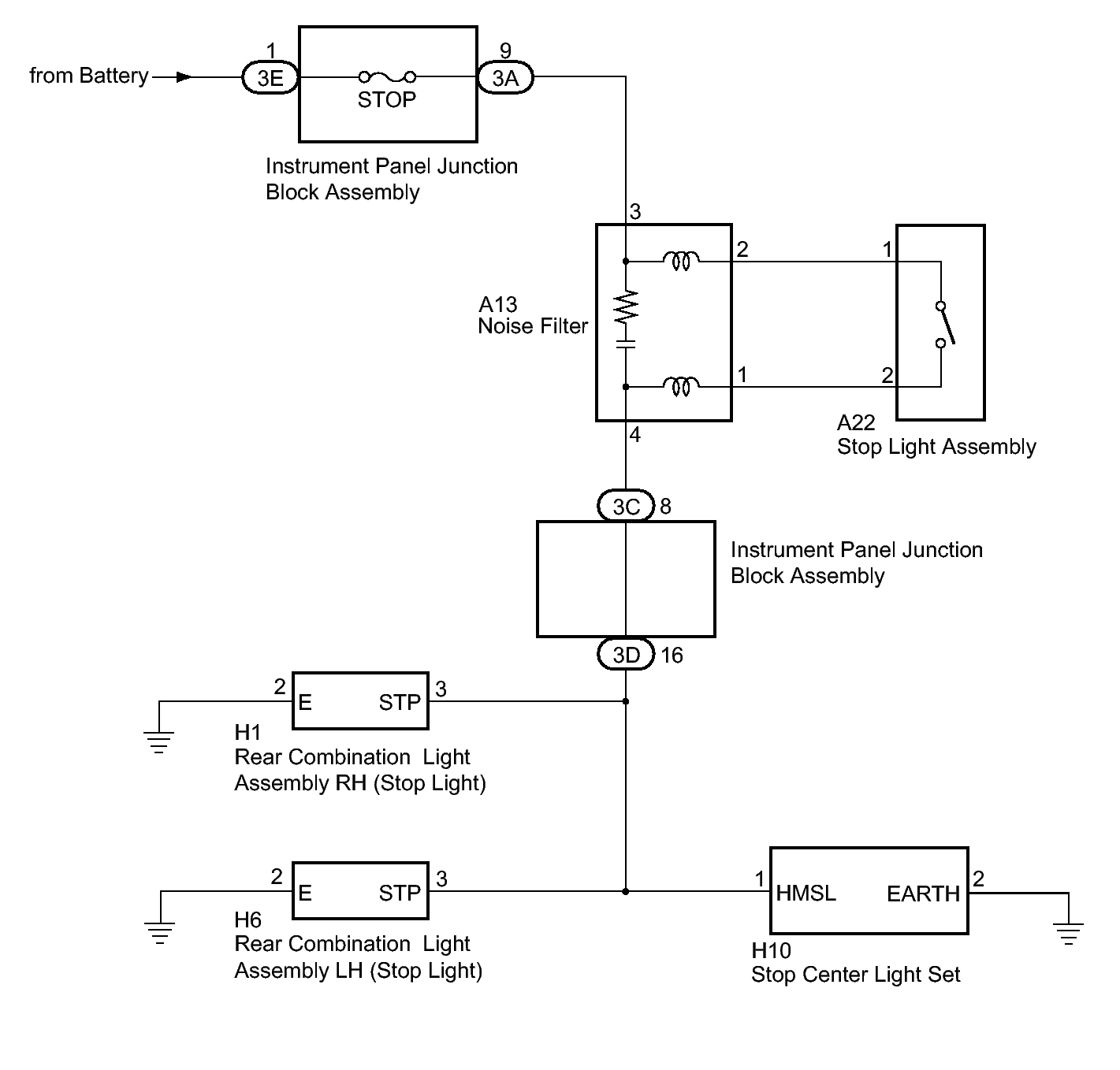

    Fig 7: Stop Light Circuit Diagram [05/2013 - ]
    GTY390980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DAYTIME RUNNING LIGHT SYSTEM (w/ HID Headlight)

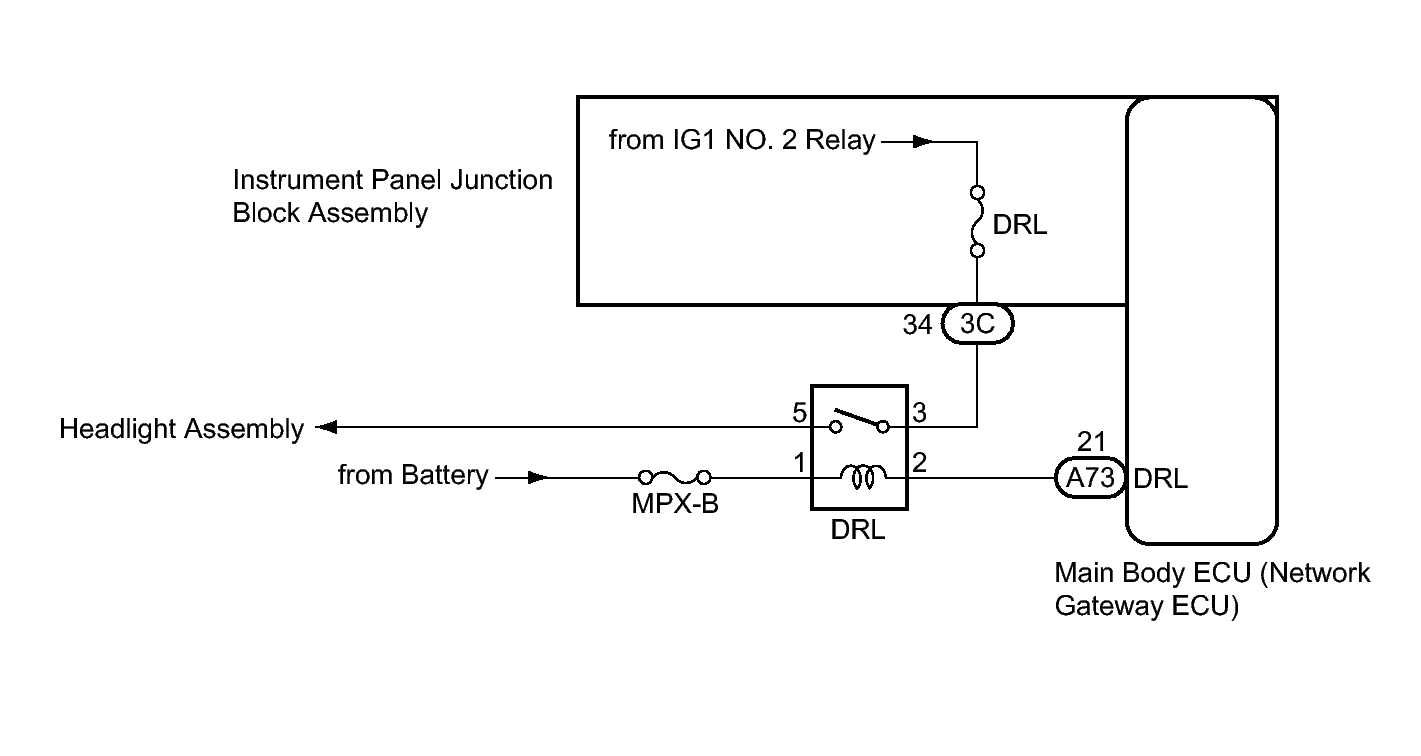

    Fig 8: Daytime Running Light System (w/ HID Headlight) [05/2013 - ]
    GTY390308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DAYTIME RUNNING LIGHT SYSTEM (w/o HID Headlight)
    Fig 9: Daytime Running Light System (w/o HID Headlight) [05/2013 - ]
    GTY392409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
