Inspection [03/2012 - ]

INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

Check that there is no foreign matter in the front No. 2 speaker assembly, no tears on the front No. 4 speaker assembly cone or other abnormalities.

Measure the resistance of the front No. 2 speaker assembly.

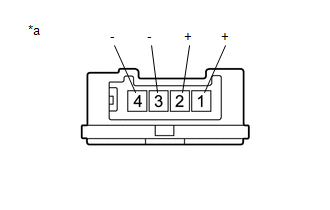

Fig 1: Identifying Front No. 2 Speaker Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Component without harness connected (Front No. 2 speaker assembly)

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (+) - 2 (+)	Always	2.8 to 3.8 Ω
3 (-) - 4 (-)	Always	2.8 to 3.8 Ω

If the result is not as specified, replace the front No. 2 speaker assembly.
