Check CAN Bus Lines for Short Circuit [05/2013 - ]: Wiring Diagram

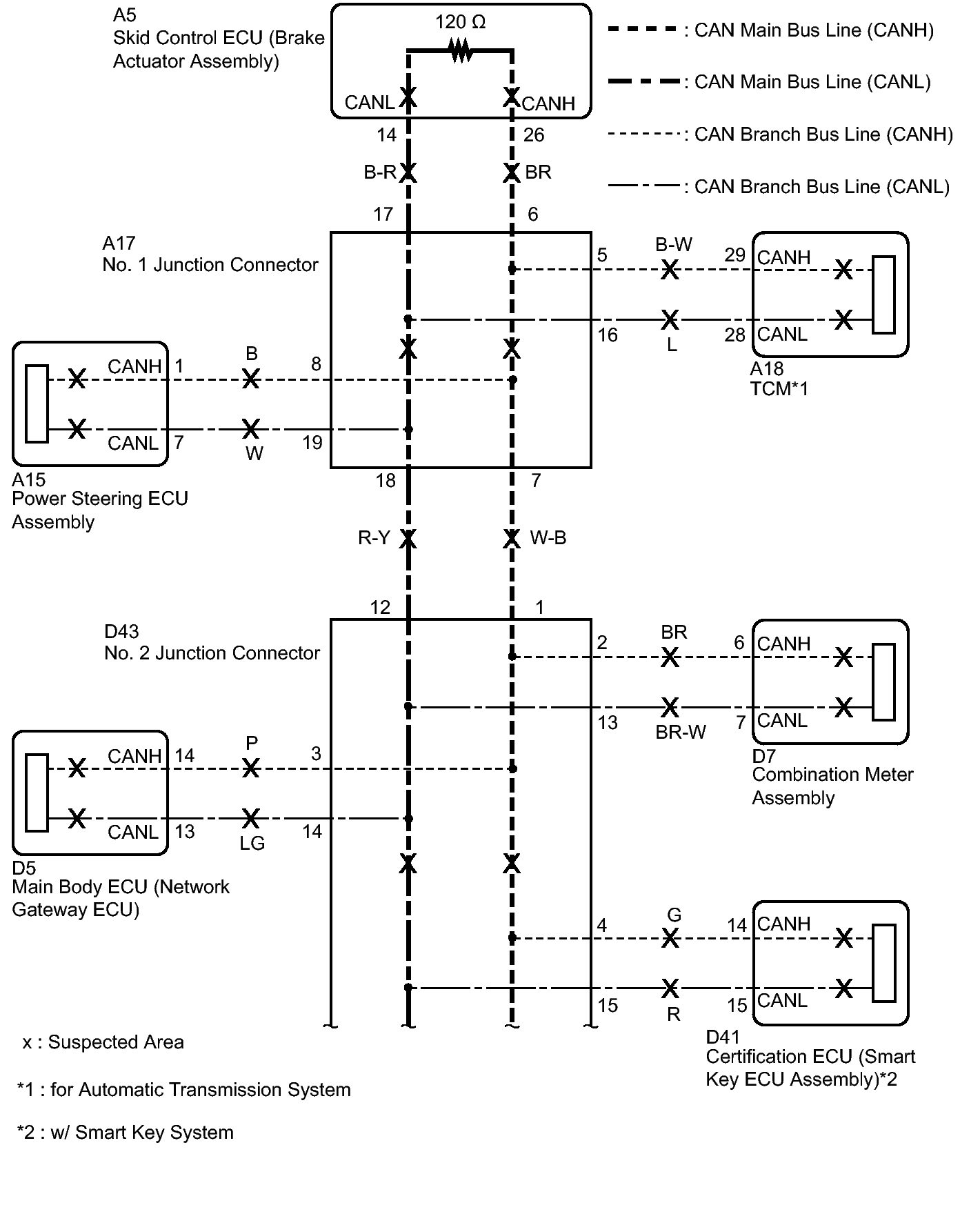

Fig 1: CAN Bus Lines Short Circuit Diagram [05/2013 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

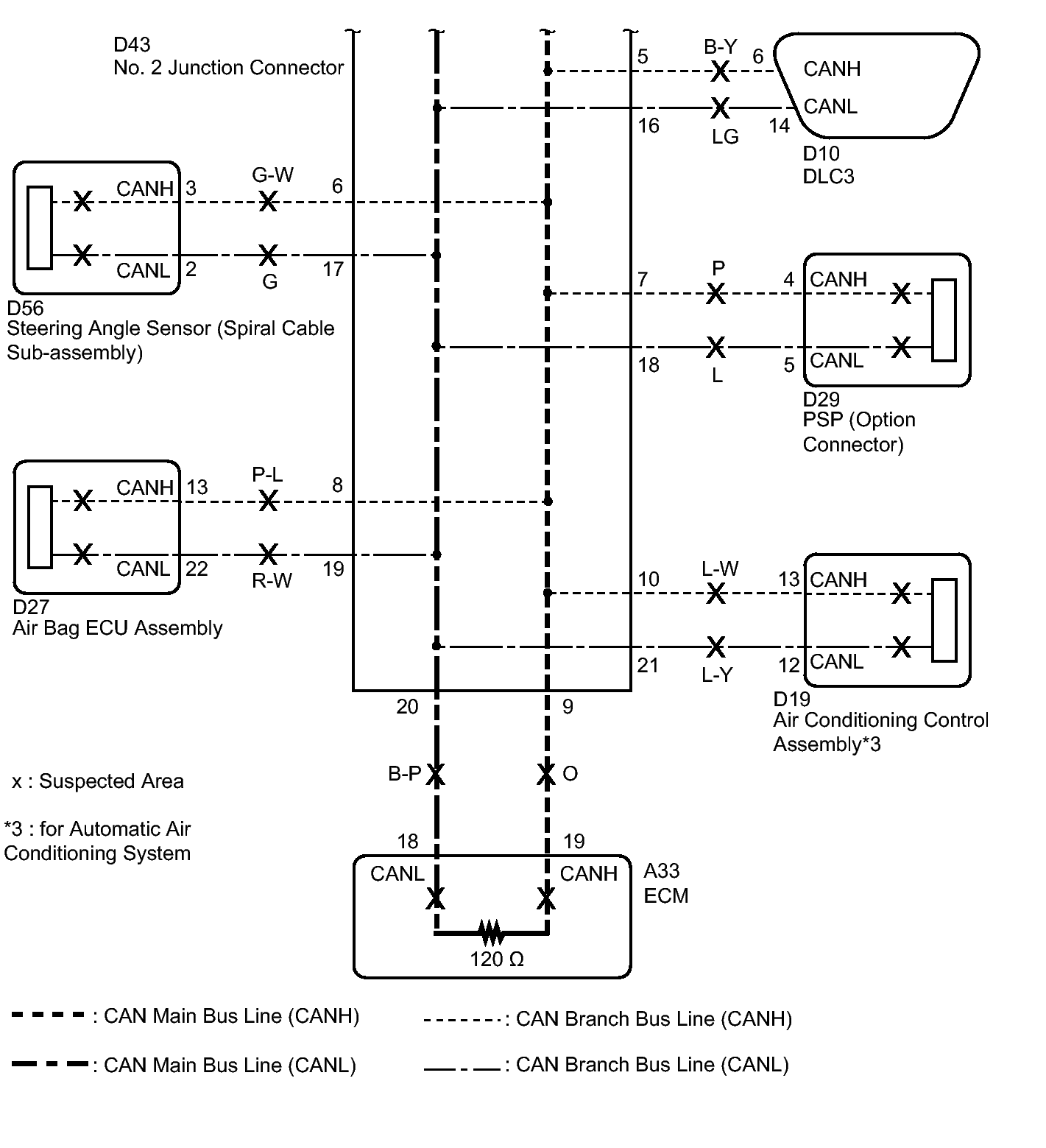

Fig 2: CAN Bus Lines Short Circuit Diagram [05/2013 - ] (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
