Parts Location [05/2013 - ]: Illustration

Fig 1: Can Communication System Components Location [05/2013 - ] (1 Of 2)
GTY385747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

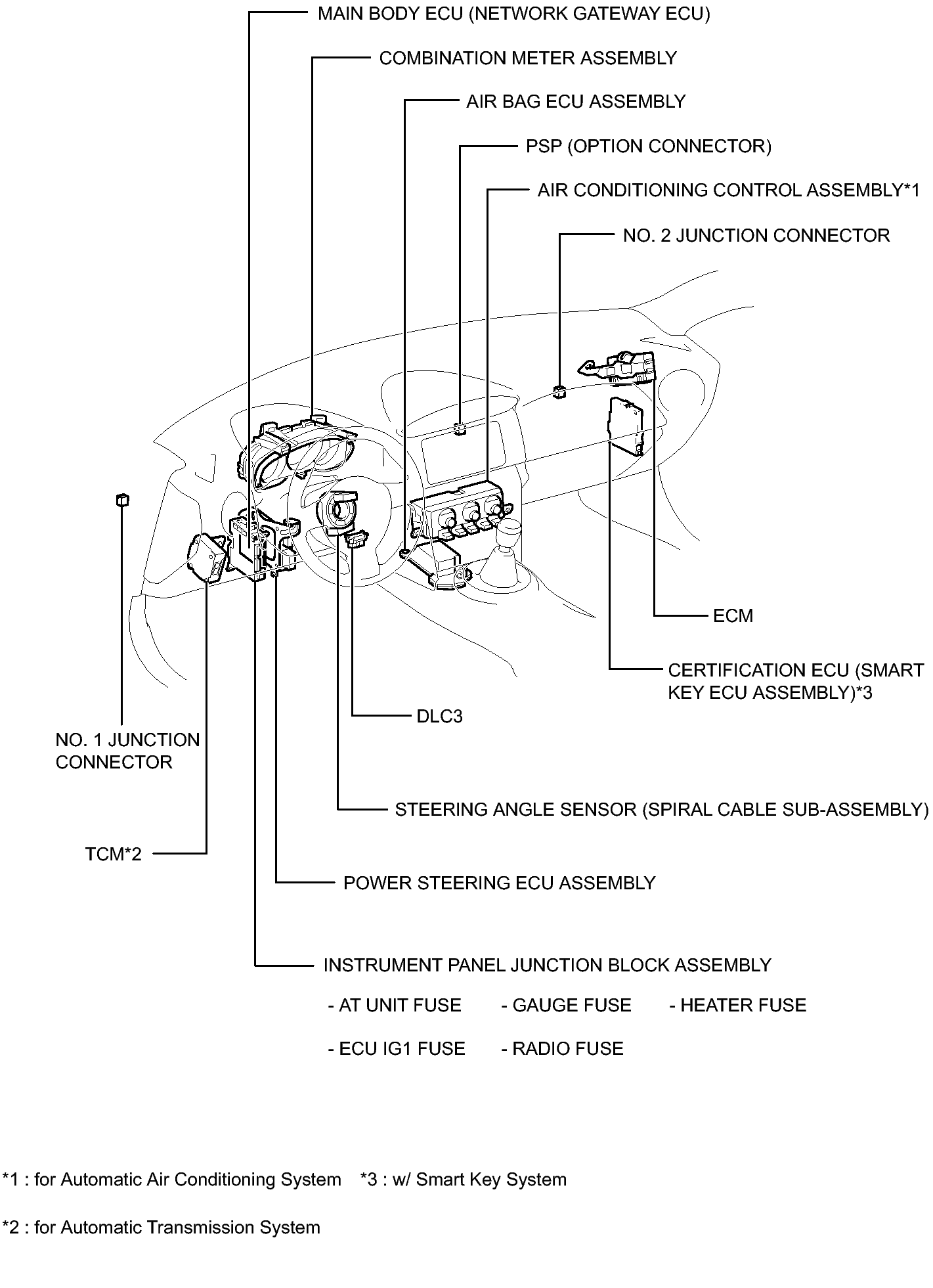

Fig 1: Can Communication System Components Location [05/2013 - ] (2 Of 2)
GTY390752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
