DTC B1572: Immobiliser System Communication Malfunction: Wiring Diagram

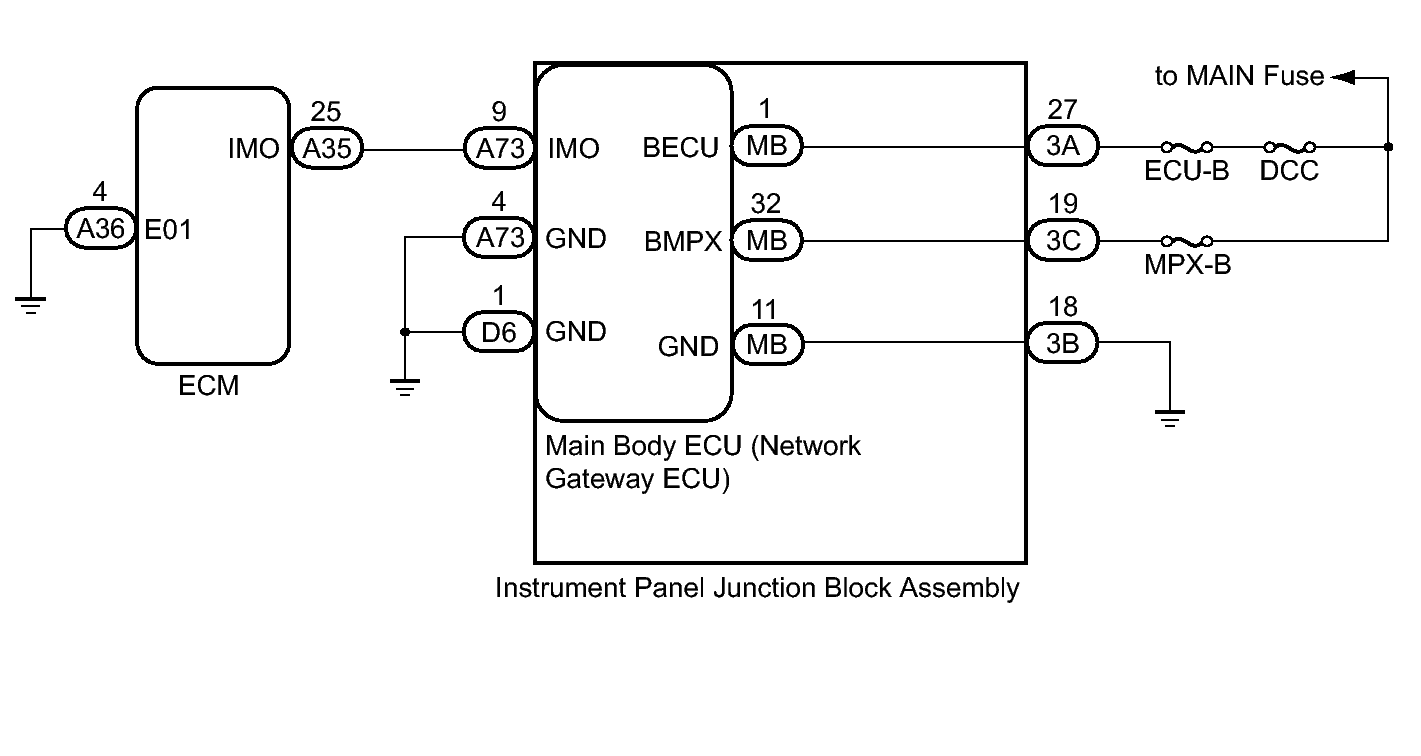

Fig 1: Immobiliser System Communication Diagram

GTY385317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
