Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points

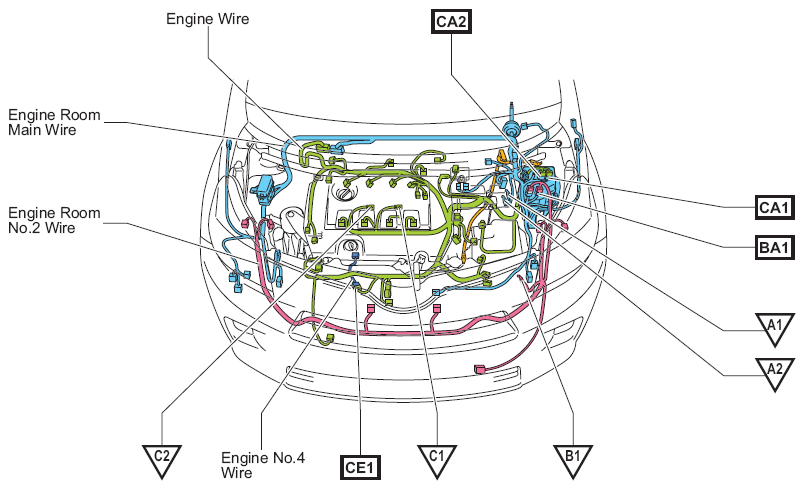

Fig 1: Locating Wiring Harnesses And Ground Points
G08761135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

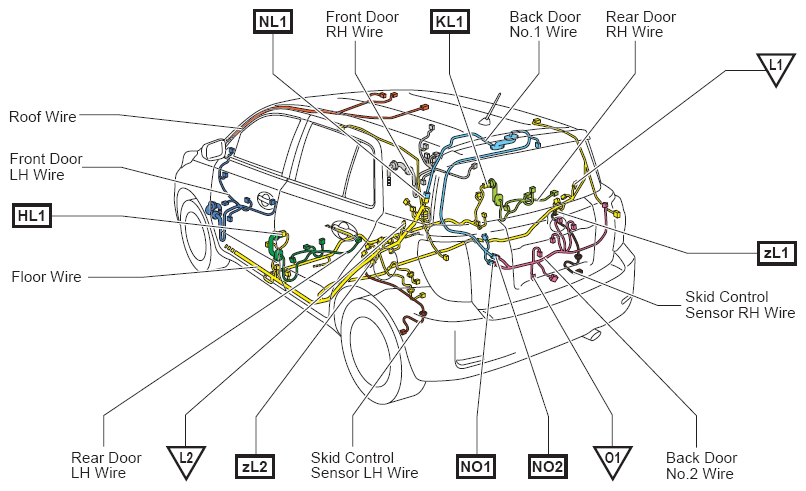

Fig 1: Locating Connector Joining Wire Harness And Ground Points
G08761138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
