Warning Buzzer does not Sound: Wiring Diagram

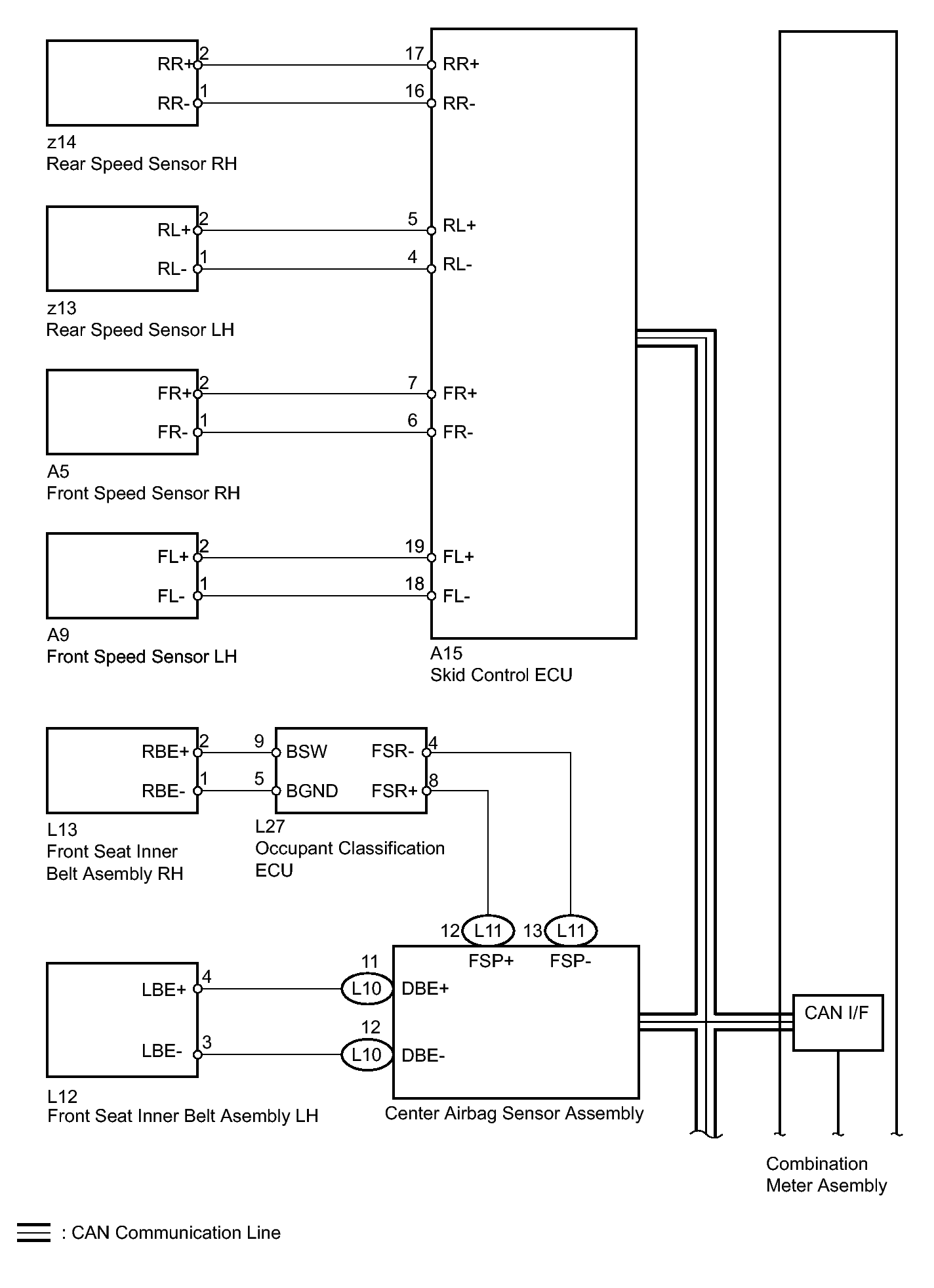

Fig 1: Combination Meter Warning Buzzer System - Wiring Diagram (1 Of 2)
GTY163572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

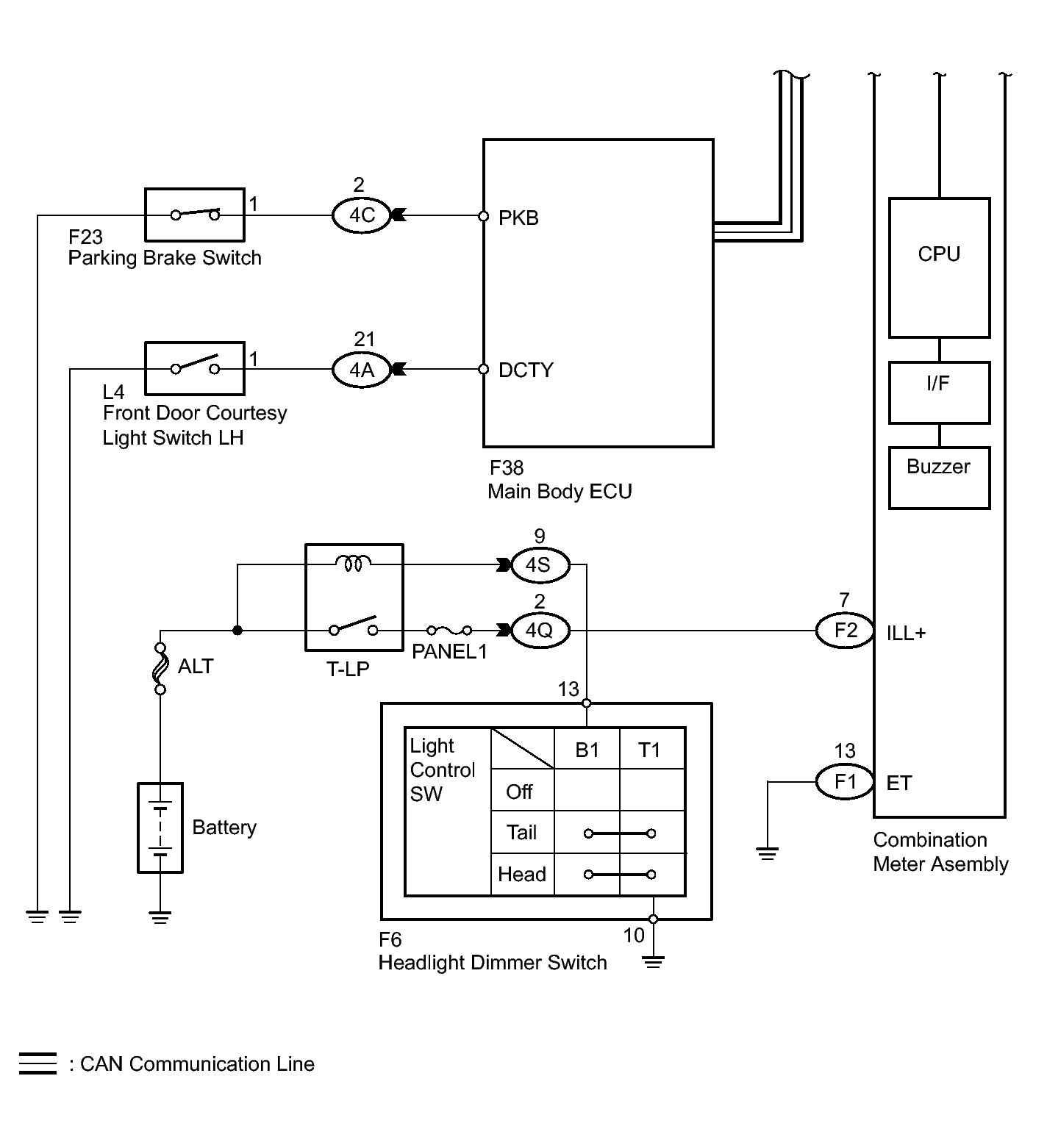

Fig 2: Combination Meter Warning Buzzer System - Wiring Diagram (2 Of 2)
GTY344192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
