Speed Signal Circuit: Wiring Diagram

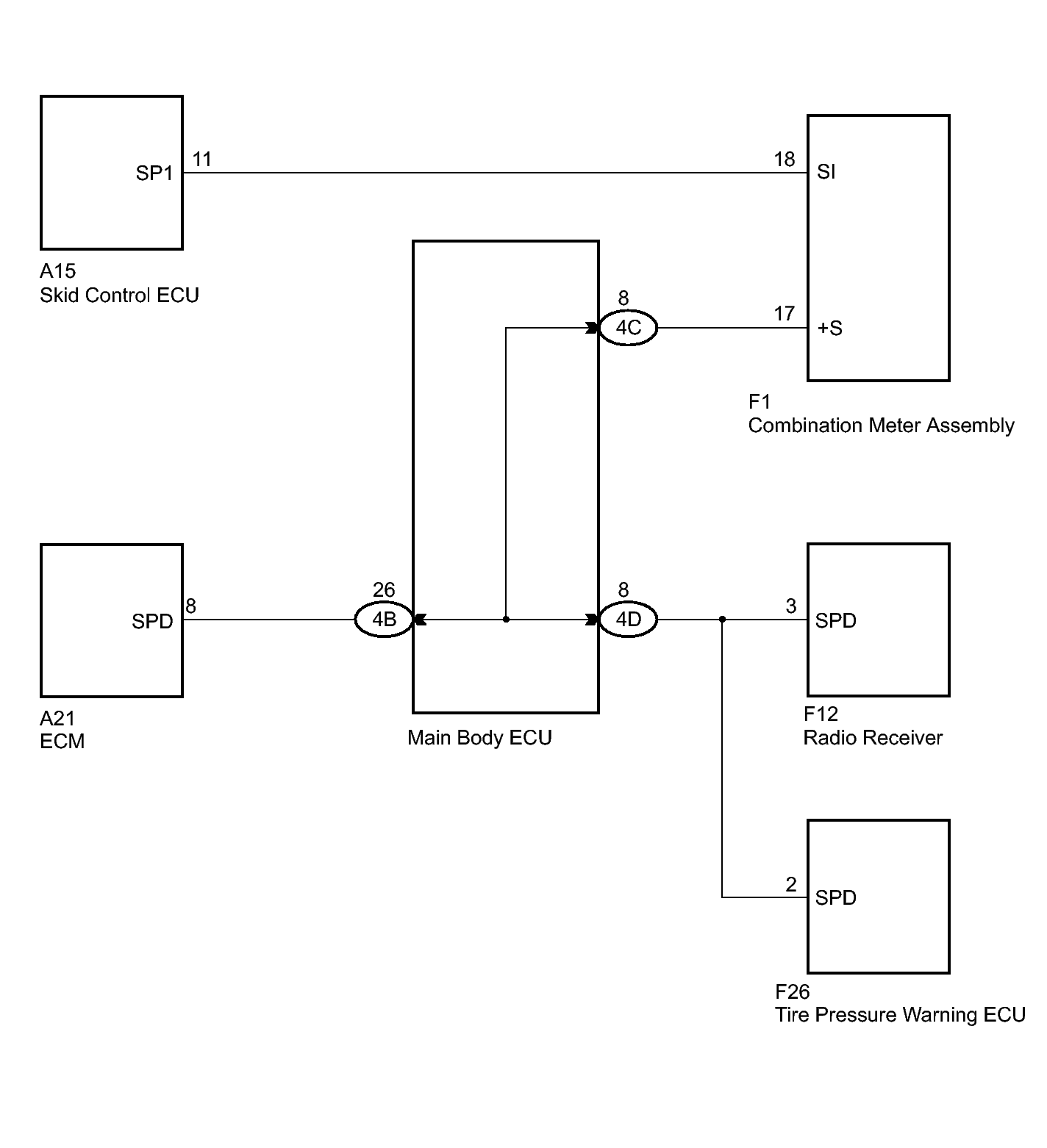

Fig 1: Vehicle ECU Speed Signal Wiring Diagram

GTY165198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
