Entire Combination Meter does not Operate: Wiring Diagram

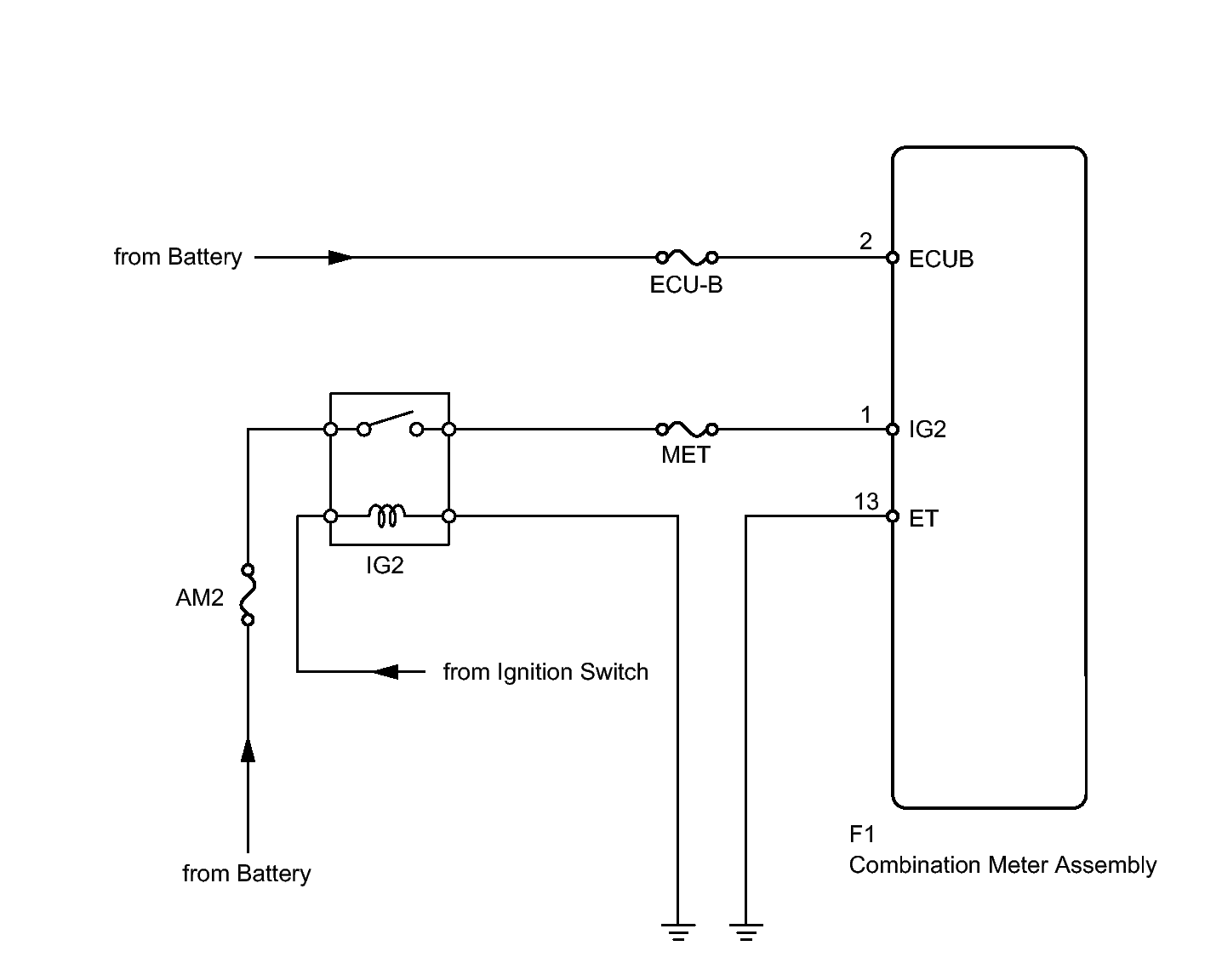

Fig 1: Entire Combination Meter Does Not Operate - Wiring Diagram

GTY163338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
