Parts Location: Illustration

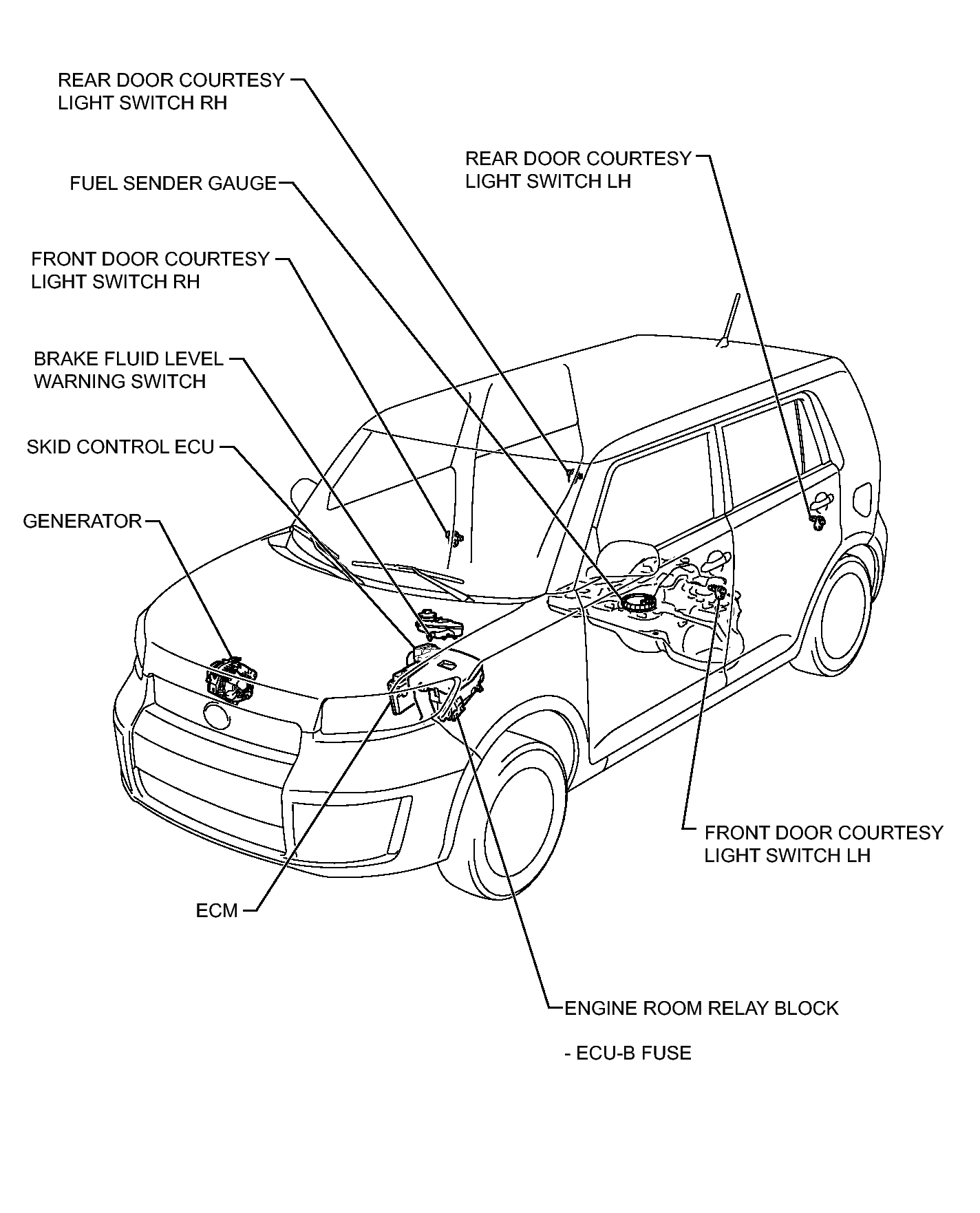

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY311488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

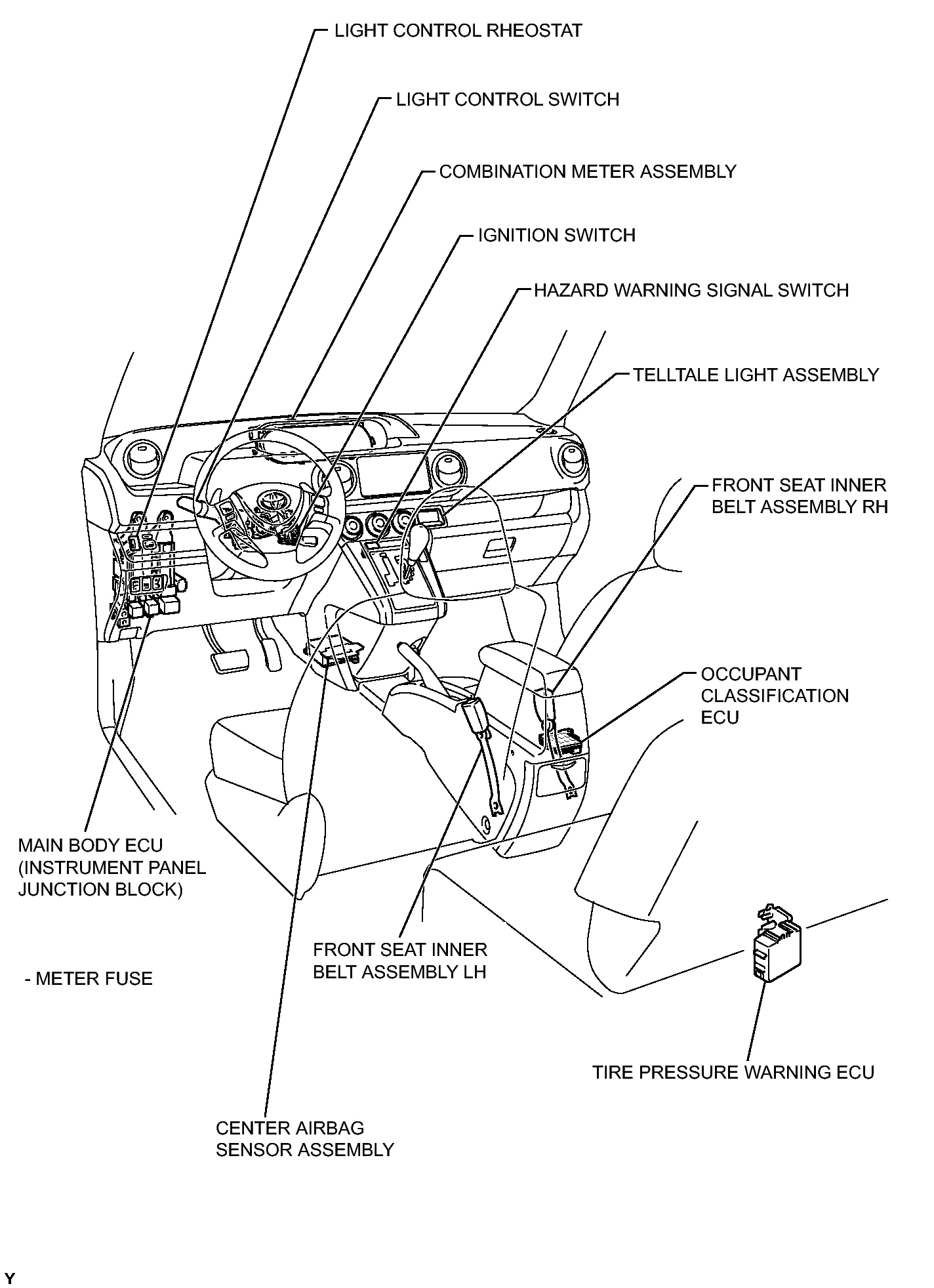

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY310094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

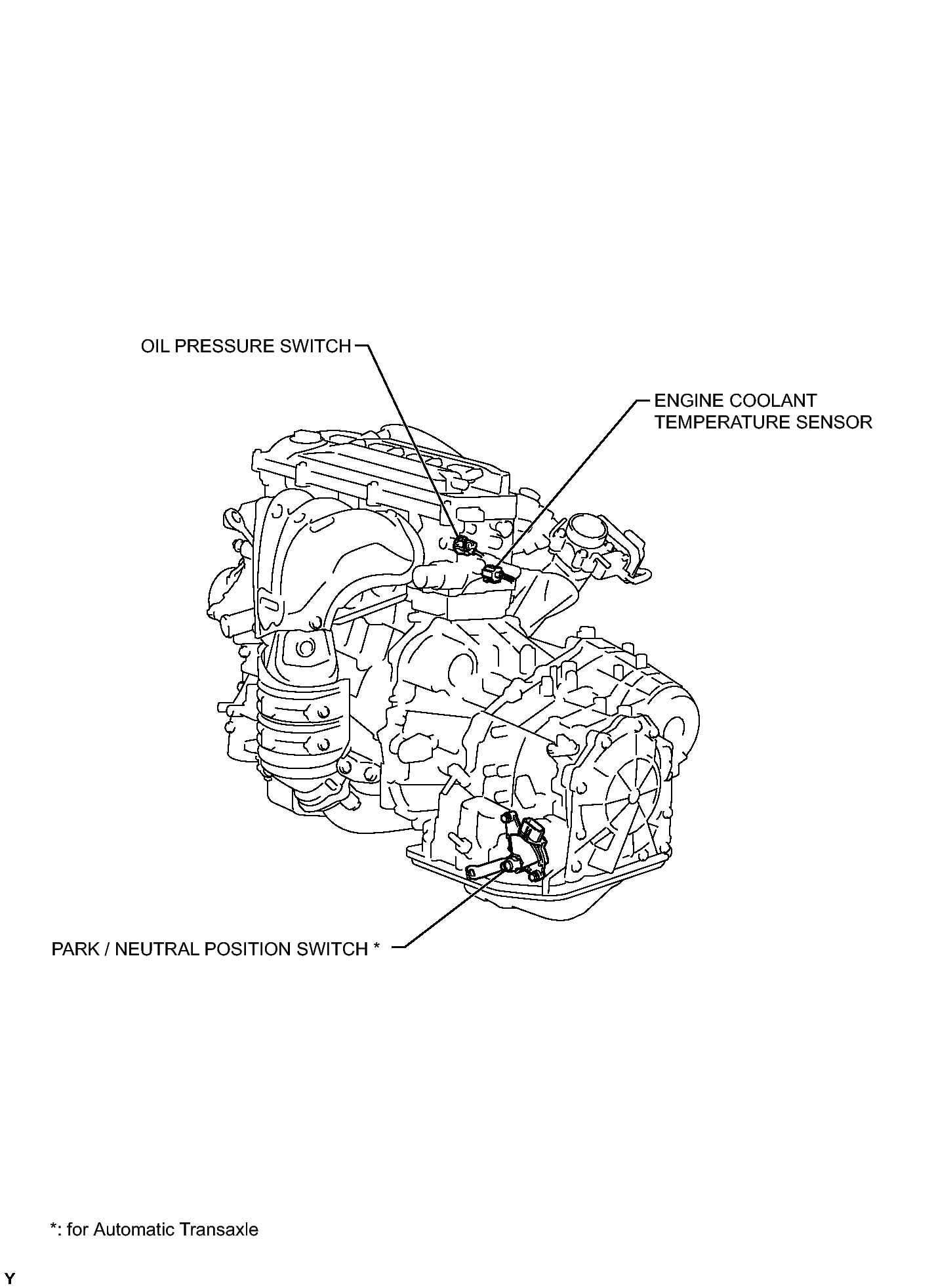

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 3)
GTY161110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
