Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points

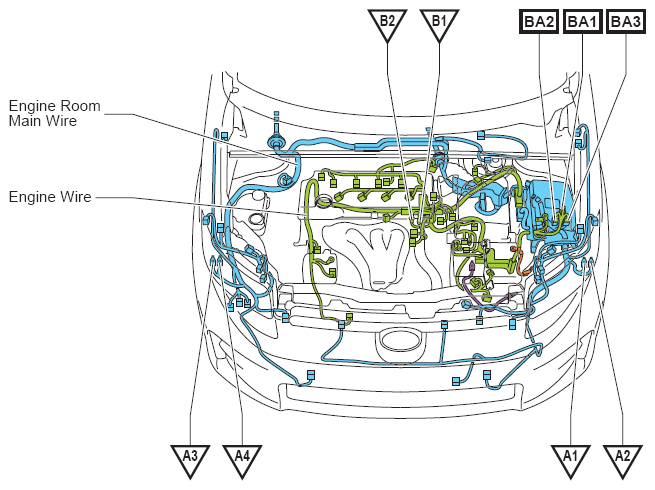

Fig 1: Locating Wiring Harness And Ground Points
G08760697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

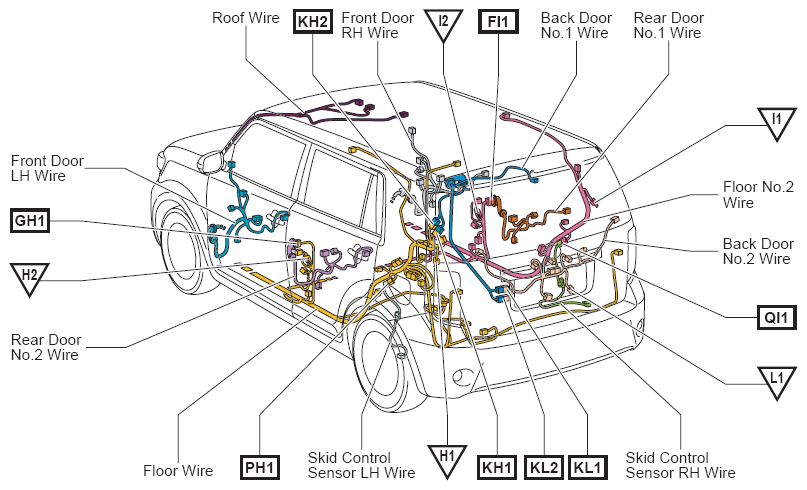

Fig 1: Locating Wiring Harness And Ground Points
G08760700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
