Warning Buzzer does not Sound: Wiring Diagram

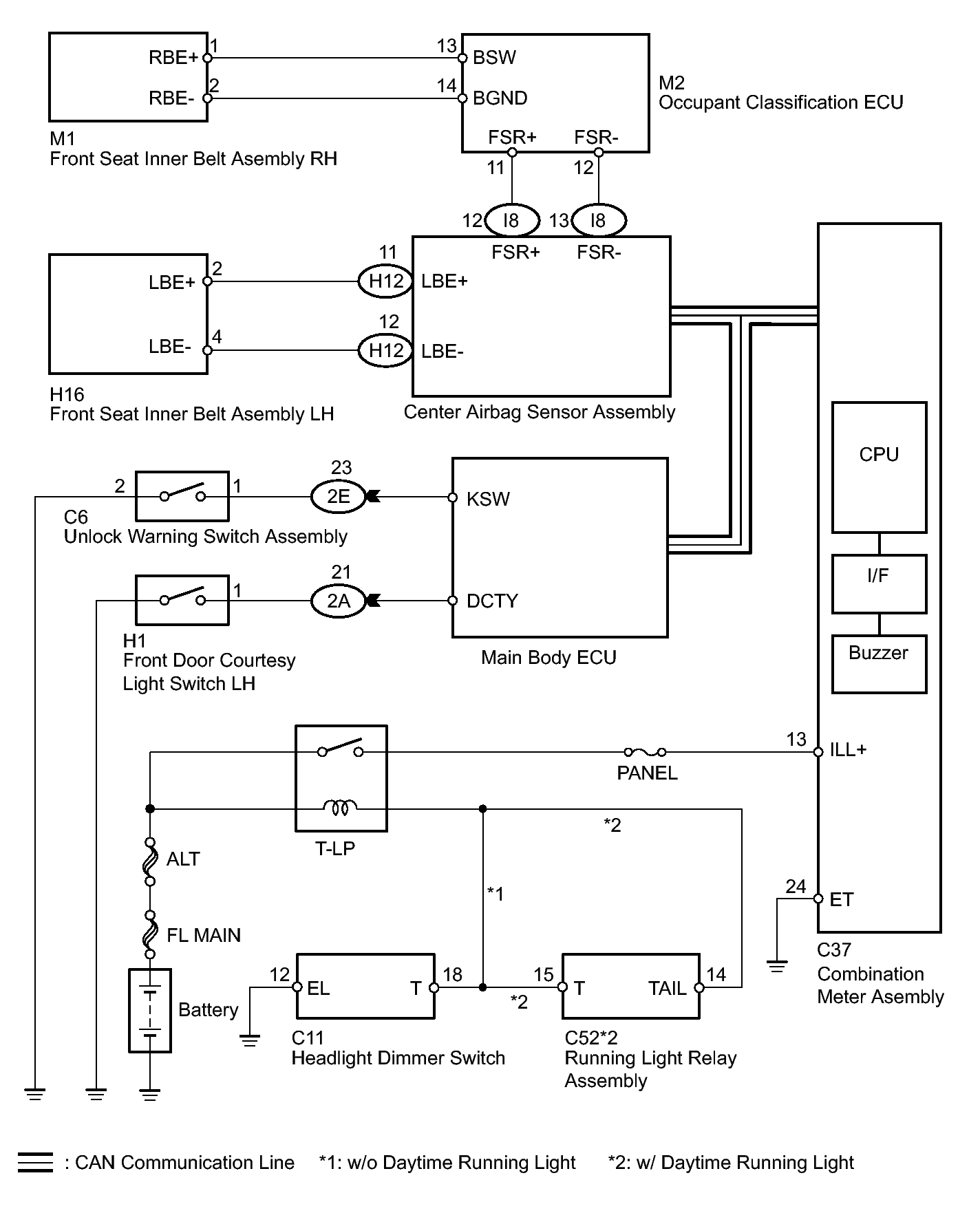

Fig 1: Identifying Warning Buzzer - Wiring Diagram
GTY346098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
