SRS Warning Light Remains ON: Wiring Diagram

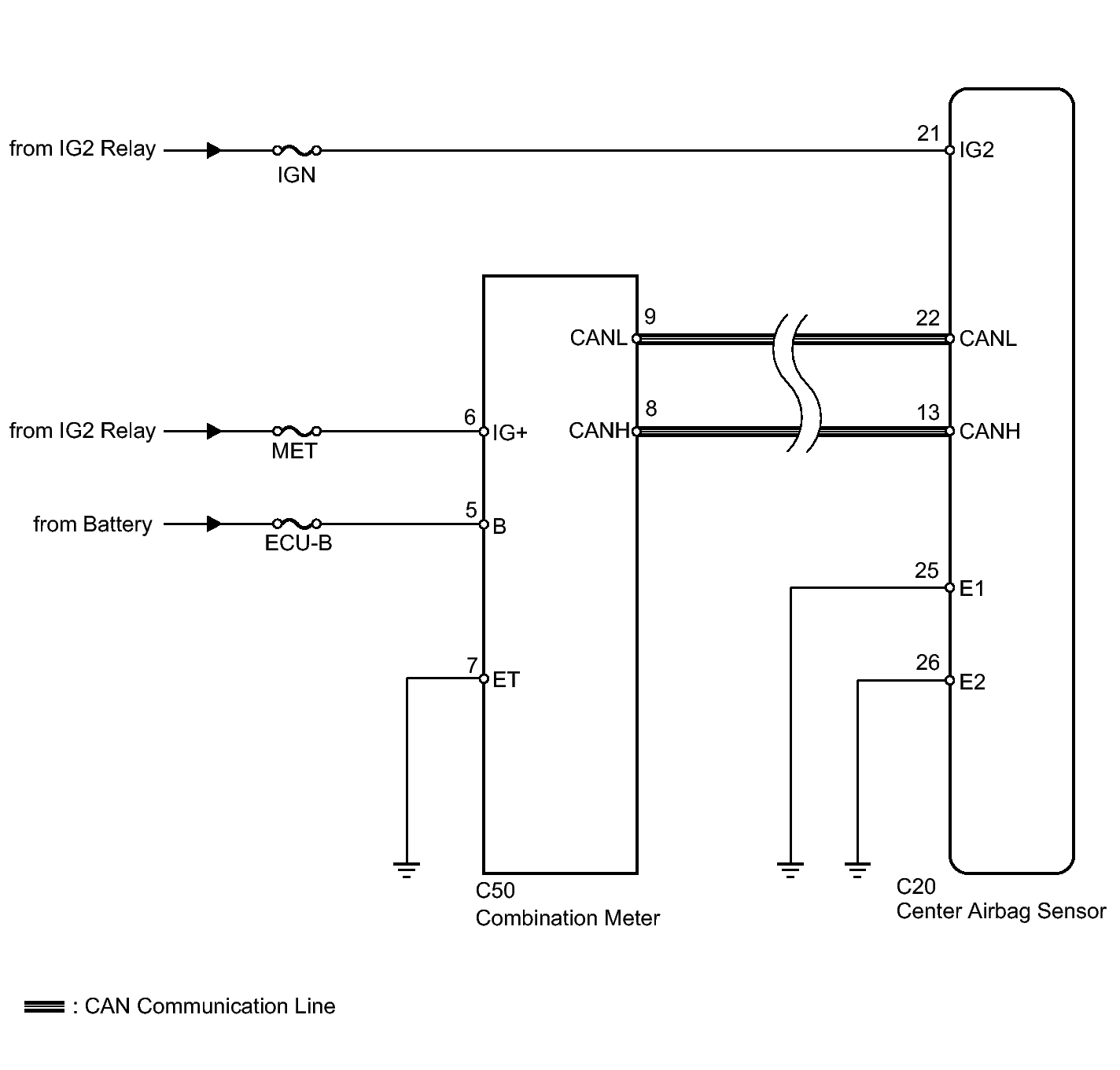

Fig 1: Center Airbag Sensor/Combination Meter/CAN Communication - Wiring Diagram

GTY311049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
