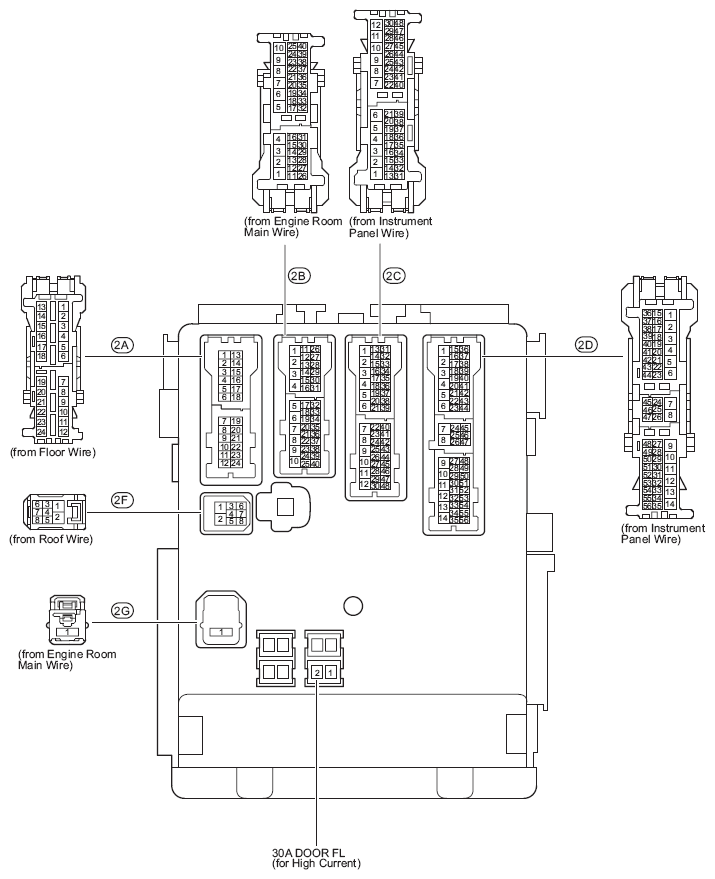

Instrument Panel J/B Assembly, Cowl Side Left
INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | ACC | ABS, TRAC and VSC |
| Audio System | ||
| Back Door Opener | ||
| Clock | ||
| Combination Meter | ||
| Door Lock Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| Headlight (w/ Daytime Running Light) | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) and Light Reminder | ||
| Power Window | ||
| 5A | ACC | Remote Control Mirror |
| Shift Lock | ||
| Sliding Roof | ||
| SRS | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 5A | AM1 | ABS, TRAC and VSC |
| Back Door Opener | ||
| Combination Meter | ||
| Door Lock Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| Headlight (w/ Daytime Running Light) | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) and Light Reminder | ||
| Power Window | ||
| Sliding Roof | ||
| Starting (w/o Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 5A | ECU-IG1 NO. 1 | Charging |
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| EPS | ||
| Shift Lock | ||
| Sliding Roof | ||
| Tire Pressure Warning System | ||
| 5A | ECU-IG1 NO. 2 | ABS, TRAC and VSC |
| Back Door Opener | ||
| Combination Meter | ||
| Door Lock Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| Headlight (w/ Daytime Running Light) | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) and Light Reminder | ||
| Power Window | ||
| Sliding Roof | ||
| 5A | ECU-IG1 NO. 2 | Wireless Door Lock Control (w/o Smart Key System) |
| 5A | ECU-IG1 NO. 3 | Turn Signal and Hazard Warning Light |
| 5A | IG | Combination Meter |
| Cooling Fan | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Mirror Heater and Rear Window Defogger | ||
| 5A | PANEL | Illumination and Taillight |
| 7.5A | BKUP LP | ABS, TRAC and VSC |
| Back-Up Light | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Door Lock Control | ||
| 7.5A | HTR-IG | Air Conditioning |
| Mirror Heater and Rear Window Defogger | ||
| 7.5A | IG2 NO. 2 | Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| Ignition | ||
| 7.5A | IGN | Back Door Opener |
| Clock | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| Seat Belt Warning | ||
| SRS | ||
| 7.5A | MET | ABS, TRAC and VSC |
| Back Door Opener | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| EPS | ||
| Illumination and Taillight | ||
| Key Reminder (w/o Smart Key System) and Light Reminder | ||
| Seat Belt Warning | ||
| 7.5A | MET | Sliding Roof |
| SRS | ||
| Tire Pressure Warning System | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | WASHER RR | Rear Wiper and Washer |
| 10A | S/HTR FL | Seat Heater |
| 10A | S/HTR FR | Seat Heater |
| 10A | TAIL | Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control |
| Illumination and Taillight | ||
| 10A | WASHER FR | Front Wiper and Washer |
| 15A | PWR OUTLET | Power Outlet |
| 15A | WIP RR | Rear Wiper and Washer |
| 20A | D/L | Back Door Opener |
| Door Lock Control | ||
| Engine Immobiliser System (w/ Smart Key System), Smart Key System, Starting (w/ Smart Key System), Steering Lock (w/ Smart Key System) and Wireless Door Lock Control (w/ Smart Key System) | ||
| 20A | DOOR FR | Power Window |
| 30A | DOOR FL | Power Window |
| 30A | S/ROOF | Sliding Roof |
| 30A | WIP FR | Front Wiper and Washer |
