Combination Meter: Removal: Removal

REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH . Refer to REMOVAL - Step 4
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 5
REMOVE METER HOOD SUB-ASSEMBLY . Refer to REMOVAL - Step 6
REMOVE COMBINATION METER ASSEMBLY

Fig 1: Identifying Combination Meter Assembly Mounting Fasteners
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the screw.
2. Detach the 2 claws.
  NOTE:
  - Hold the part labeled A in the illustration and detach the claws.
  - Do not hold the part labeled B in the illustration.

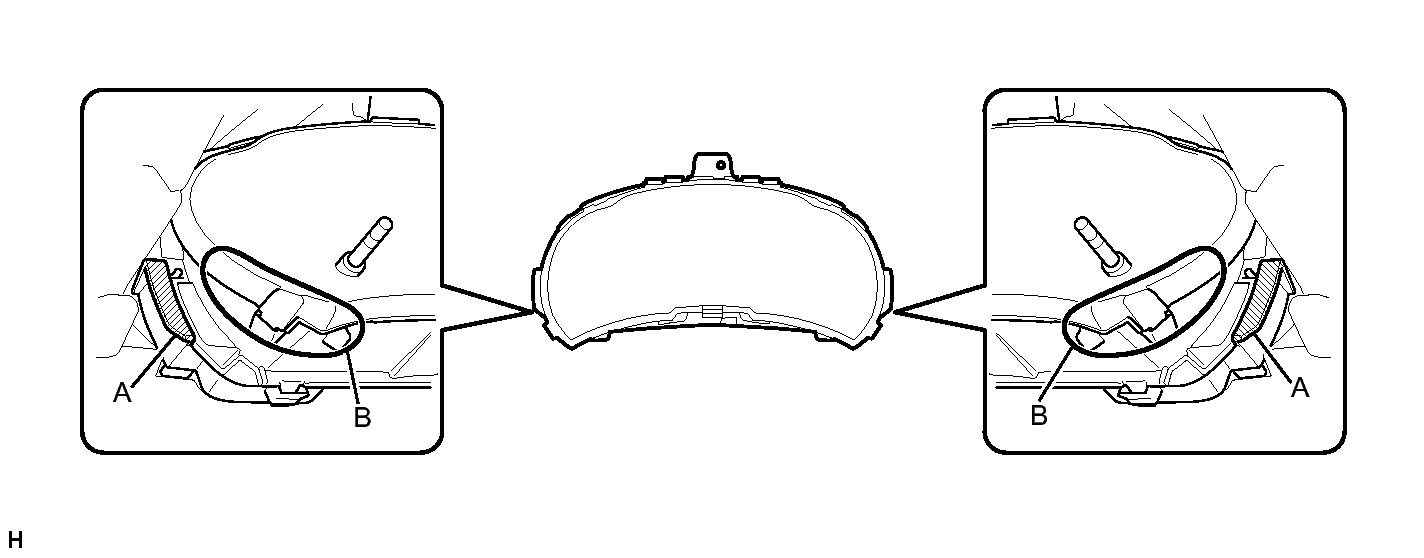

  Fig 2: Identifying Combination Meter Assembly Screw And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector and remove the combination meter.
