Diagnosis Circuit: Wiring Diagram

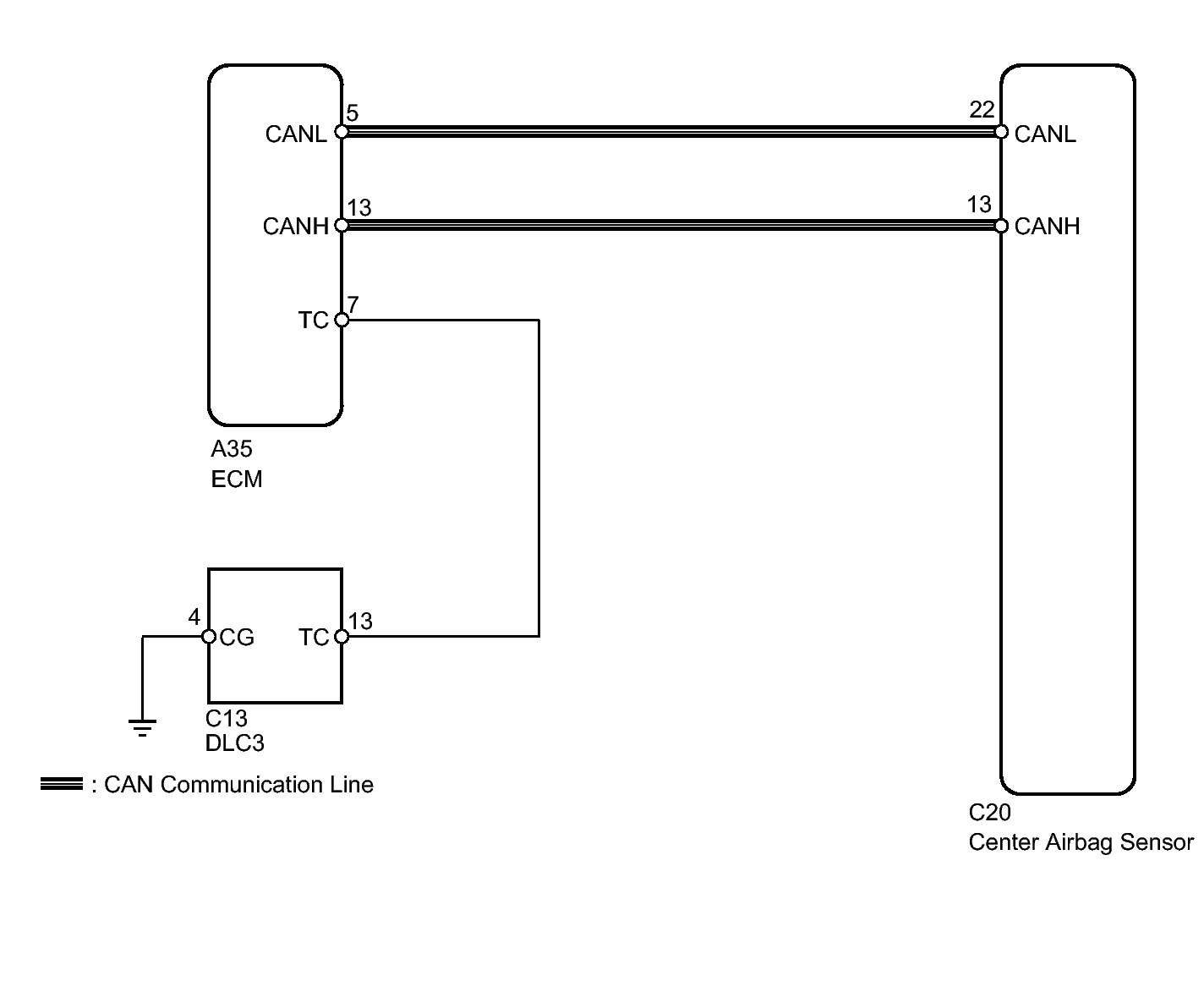

Fig 1: Center Airbag Sensor/CAN Communication - Wiring Diagram

GTY310409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
