DTC B1905/74: Short in Front Pretensioner Squib LH Circuit; DTC B1906/74: Open in Front Pretensioner Squib LH Circuit; DTC B1907/74: Short to GND in Front Pretensioner Squib LH Circuit; DTC B1908/74: Short to B+ in Front Pretensioner Squib LH Circuit: Procedure

1. Turn the ignition switch off.

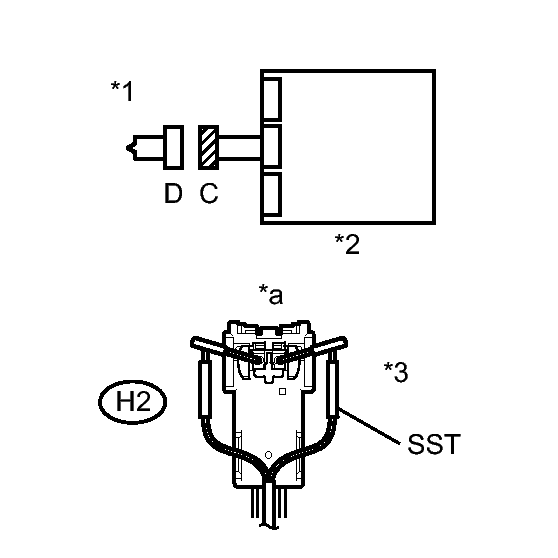

   Fig 1: Checking Front Seat Outer Belt LH (Front Pretensioner Squib LH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect the connectors from the front seat outer belt LH.
4. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
   WARNING:

   Never connect the tester to the front seat outer belt LH (front pretensioner squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting SST.
   • Insert SST straight into the terminals of the connector.
   • SST: 09843-18061
5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Clear the DTCs. Refer to DTC CHECK / CLEAR .
8. Turn the ignition switch off.
9. Turn the ignition switch to ON, and wait for at least 60 seconds.
10. Check for DTCs. Refer to DTC CHECK / CLEAR .

    OK

    DTC B1905, B1906, B1907 or B1908 is not output.

    HINT:

    Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

    TEXT IN ILLUSTRATION



    *1	Front Pretensioner Squib LH
    *2	Center Airbag Sensor
    *3	Connector C
    *4	SST
    *a	Front view of wire harness connector (to Front Pretensioner Squib LH)

NG → See step   2

OK → See step   5

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect SST from connector C.
4. Disconnect the connectors from the center airbag sensor.
5. Check that the connectors (on the center airbag sensor side and front seat outer belt LH side) are not damaged.

   OK

   The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

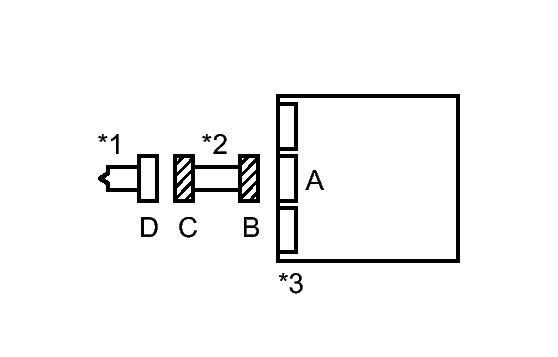

   Fig 2: Checking Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Front Pretensioner Squib LH
   *2	Floor Wire
   *2	Center Airbag Sensor

NG → REPLACE FLOOR WIRE

OK: Go to next step

1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

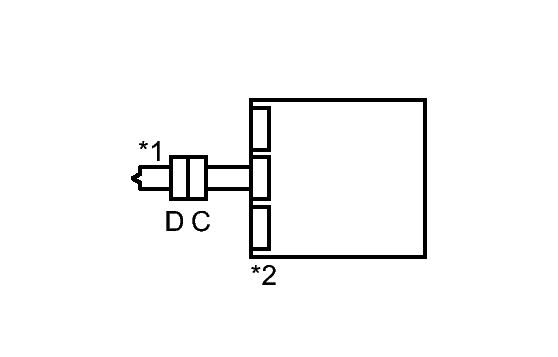

   Fig 3: Checking Floor Wire (Front Pretensioner Squib LH Circuit)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   H2-1 (L+) - Body ground	Ignition switch ON	Below 1 V
   H2-2 (L-) - Body ground	Ignition switch ON	Below 1 V

3. Turn the ignition switch off.
4. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H2-1 (L+) - H2-2 (L-)	Always	Below 1 Ω

6. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM .
7. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H2-1 (L+) - H2-2 (L-)	Always	1 MΩ or higher
   H2-1 (L+) - Body ground	Always	1 MΩ or higher
   H2-2 (L-) - Body ground	Always	1 MΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front Pretensioner Squib LH
   *2	Floor Wire
   *3	Center Airbag Sensor
   *4	Connector C
   *a	Front view of wire harness connector (to Front Pretensioner Squib LH)

NG → REPLACE FLOOR WIRE

OK: Go to next step

1. Connect the connectors to the front seat outer belt LH and center airbag sensor.

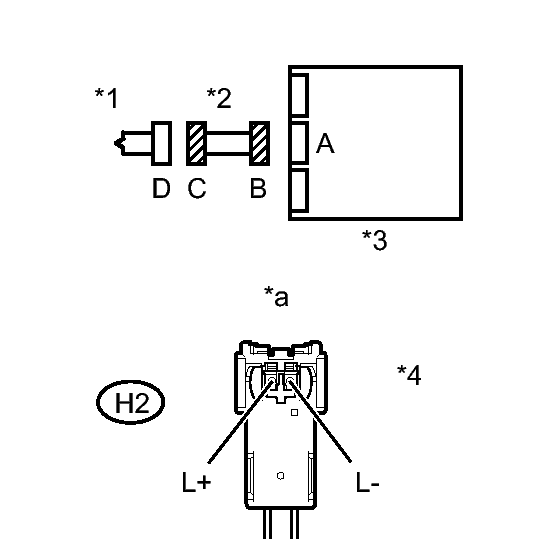

   Fig 4: Checking Center Airbag Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Clear the DTCs. Refer to DTC CHECK / CLEAR .
5. Turn the ignition switch off.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Check for DTCs. Refer to DTC CHECK / CLEAR .

   OK

   DTC B1905, B1906, B1907 or B1908 is not output.

   HINT:

   Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

   TEXT IN ILLUSTRATION



   *1	Front Pretensioner Squib LH
   *2	Center Airbag Sensor

NG → See step   6

OK → See step   7
