DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit: Procedure

  1. CHECK FRONT SEAT AIRBAG LH (SIDE SQUIB LH)
    1. Turn the ignition switch off.

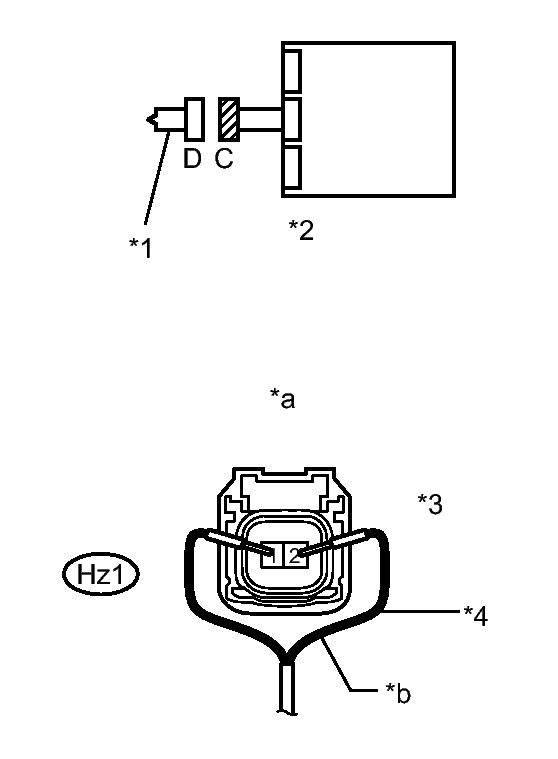

      Fig 1: Checking Front Seat Airbag (LH) (Side Squib LH)
      GTY314573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the front seat airbag LH.
    4. Connect the red wire side of SST (resistance: 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the front seat airbag LH (side squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting SST.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    6. Turn the ignition switch to ON, and wait for at least 60 seconds.
    7. Clear the DTCs. Refer to DTC CHECK / CLEAR .
    8. Turn the ignition switch off.
    9. Turn the ignition switch to ON, and wait for at least 60 seconds.
    10. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1825, B1826, B1827 or B1828 is not output.

      HINT:

      Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Side Squib LH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a Front view of wire harness connector
      (to Side Squib LH)
      *b Color: Red

    NG → See step   2

    OK → See step   7

  2. CHECK CONNECTOR
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect SST from connector C.
    4. Disconnect the connectors from the center airbag sensor.
    5. Check that the connectors (on the center airbag sensor side and front seat airbag LH side) are not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

      Fig 2: Checking Connectors
      GTY310891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Side Squib LH
      *2 Floor Wire
      *3 Center Airbag Sensor

    NG → REPLACE FLOOR WIRE

    OK: Go to next step

  3. CHECK FLOOR WIRE (SIDE SQUIB LH CIRCUIT)
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

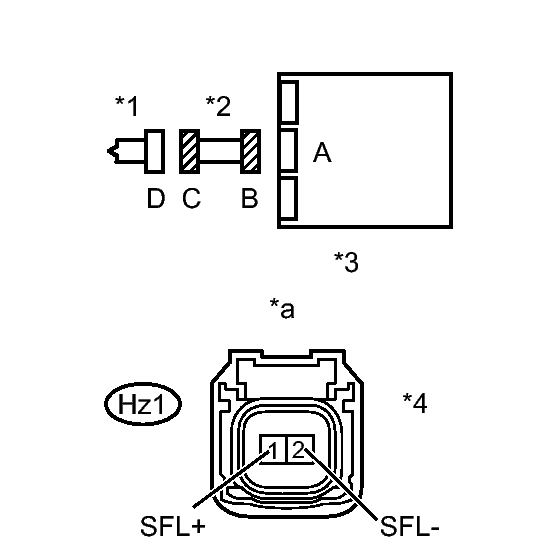

      Fig 3: Checking Floor Wire (Side Squib LH Circuit)
      GTY311925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Hz1-1 (SFL+) - Body ground Ignition switch ON Below 1 V
      Hz1-2 (SFL-) - Body ground Ignition switch ON Below 1 V
    3. Turn the ignition switch off.
    4. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Hz1-1 (SFL+) - Hz1-2 (SFL-) Always Below 1 Ω
    6. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM .
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Hz1-1 (SFL+) - Hz1-2 (SFL-) Always 1 MΩ or higher
      Hz1-1 (SFL+) - Body ground Always 1 MΩ or higher
      Hz1-2 (SFL-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Side Squib LH
      *2 Floor Wire
      *3 Center Airbag Sensor
      *4 Connector C
      *a Front view of wire harness connector
      (to Side Squib LH)

    NG → REPLACE FLOOR WIRE

    OK: Go to next step

  4. CHECK CENTER AIRBAG SENSOR
    1. Connect the connectors to the front seat airbag LH and center airbag sensor.

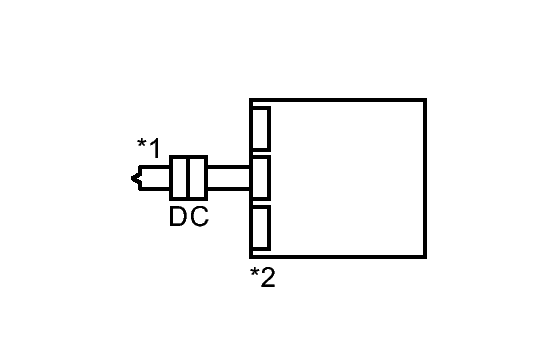

      Fig 4: Checking Center Airbag Sensor
      GTY310261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON, and wait for at least 60 seconds.
    4. Clear the DTCs. Refer to DTC CHECK / CLEAR .
    5. Turn the ignition switch off.
    6. Turn the ignition switch to ON, and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1825, B1826, B1827 or B1828 is not output.

      HINT:

      Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Side Squib LH
      *2 Center Airbag Sensor

    NG → See step   5

    OK → See step   6

  5. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL
  6. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM
  7. REPLACE FRONT SEAT AIRBAG ASSEMBLY LH. Refer to  REMOVAL
