DTC B1693/81: Door Side Airbag Sensor RH Initialization Incomplete; DTC B1698/82: Door Side Airbag Sensor LH Initialization Incomplete: Wiring Diagram

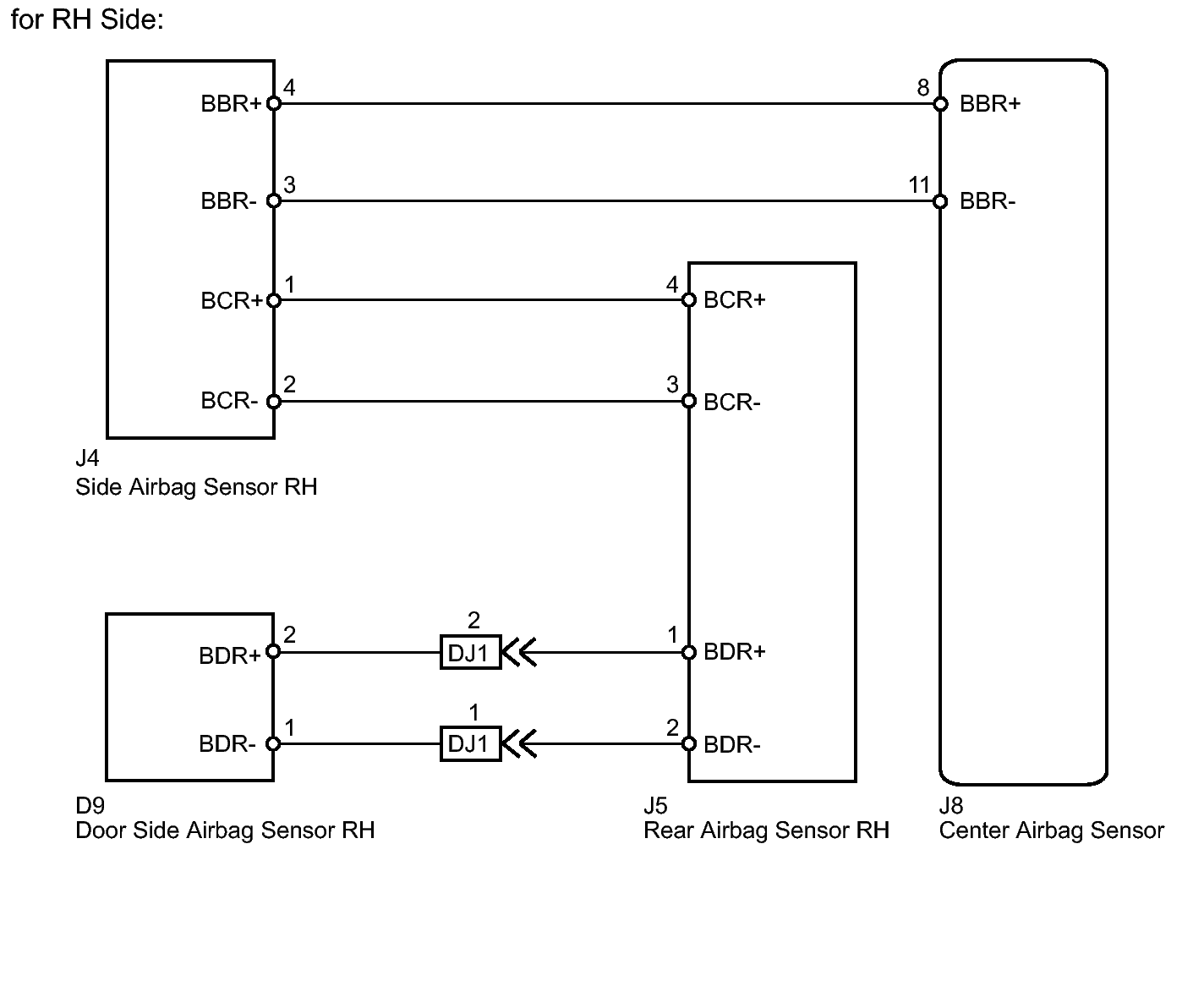

Fig 1: Airbag Sensors (RH Side) - Wiring Diagram
GTY313664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Airbag Sensors (LH Side) - Wiring Diagram
GTY313590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
