DTC P0300: Random / Multiple Cylinder Misfire Detected; DTC P0301: Cylinder 1 Misfire Detected; DTC P0302: Cylinder 2 Misfire Detected; DTC P0303: Cylinder 3 Misfire Detected; DTC P0304: Cylinder 4 Misfire Detected: Wiring Diagram

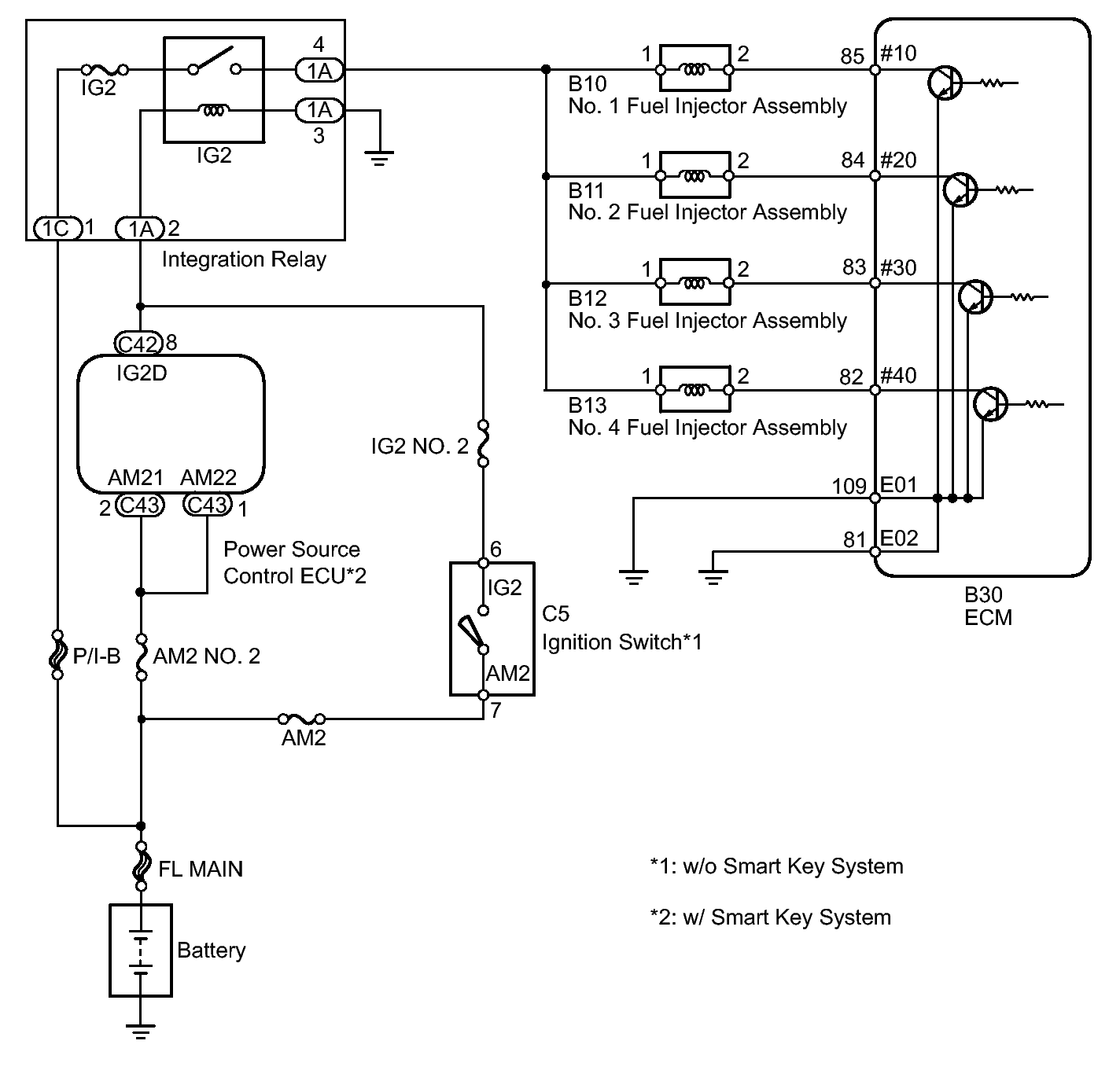

Fig 1: Identifying Random / Multiple Cylinder Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

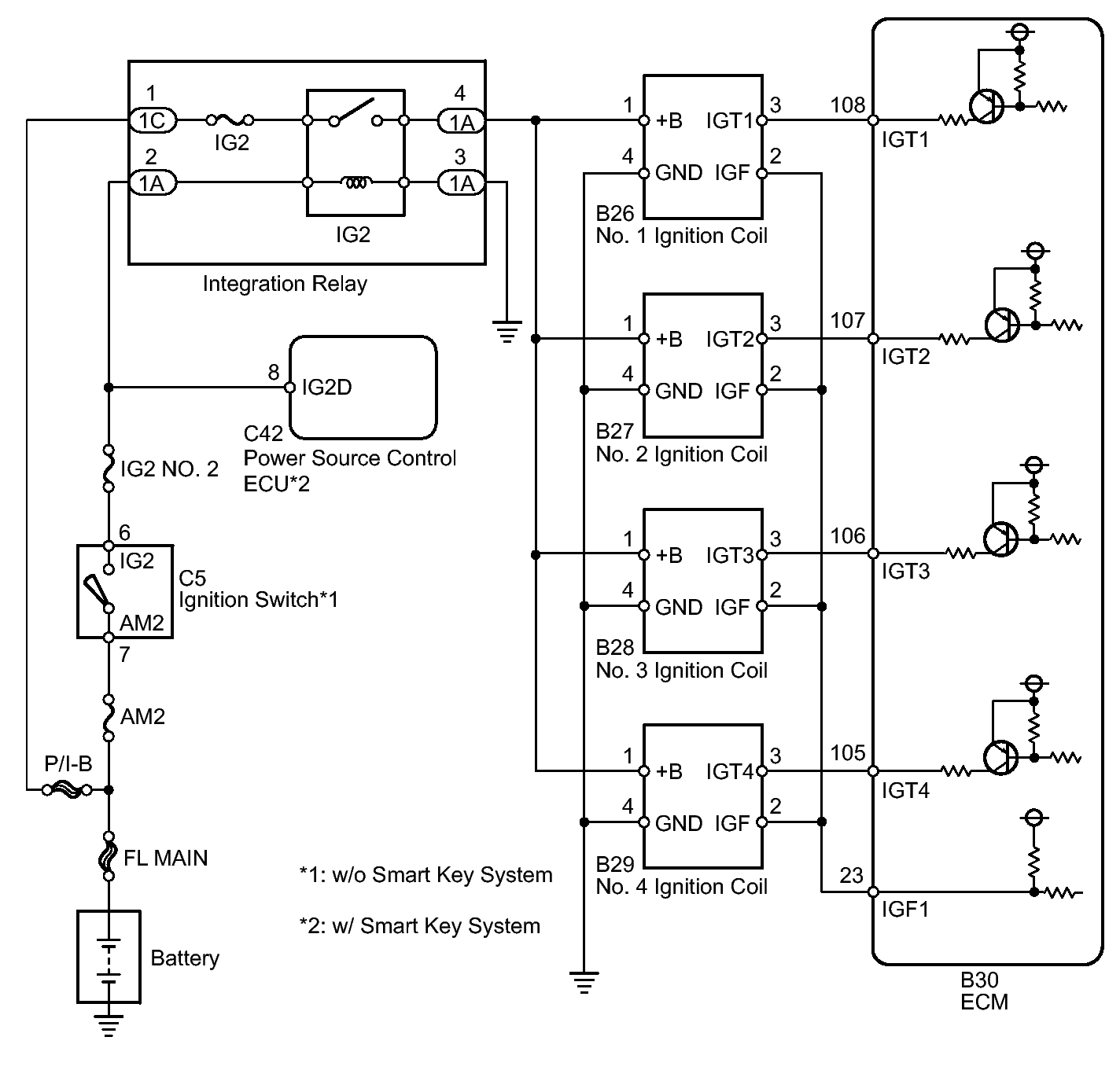

Fig 2: Identifying Random / Multiple Cylinder Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
