Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System)

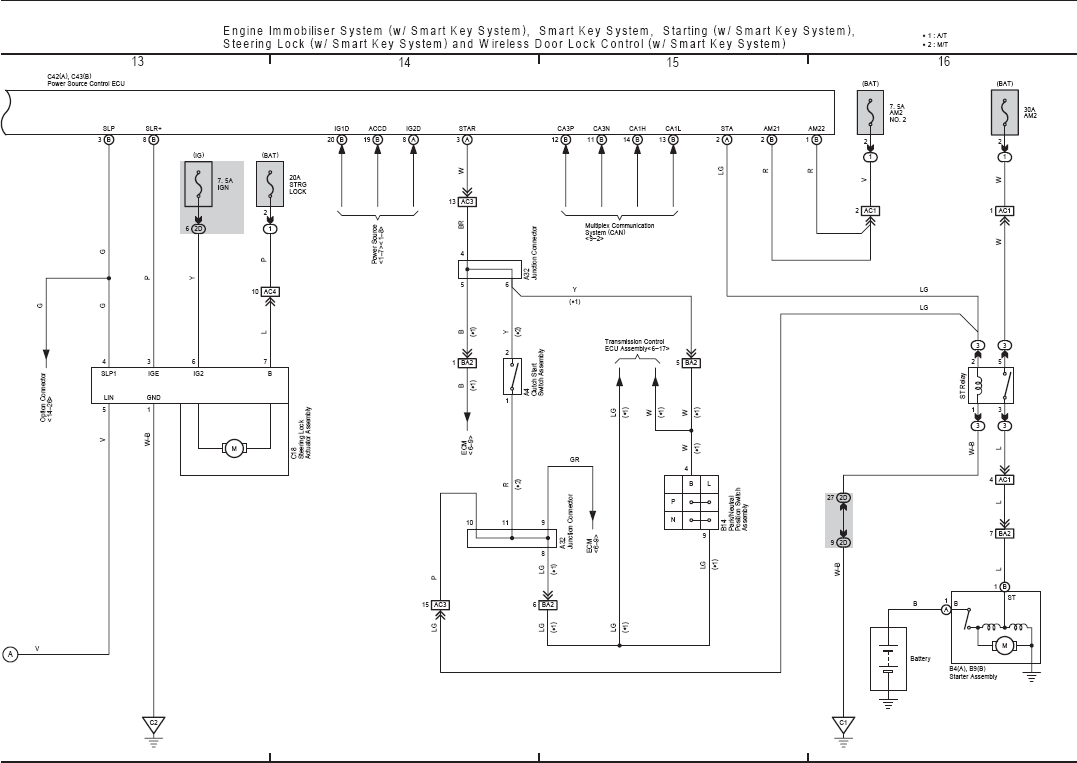

Fig 1: Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

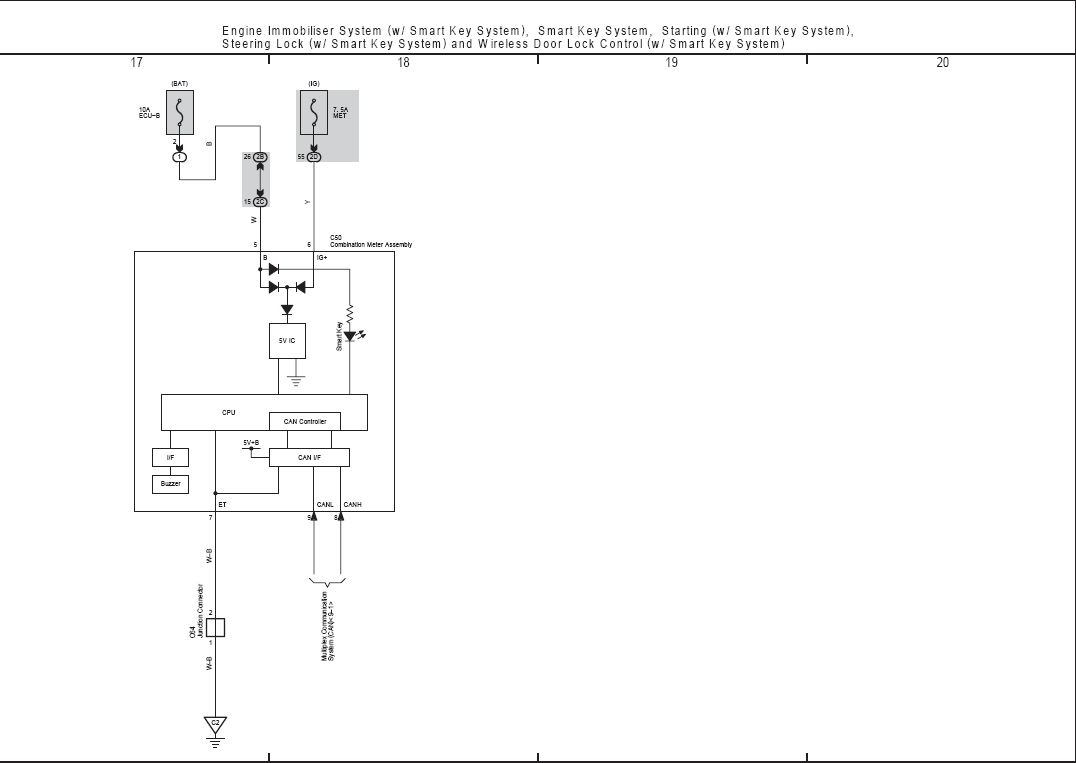

Fig 2: Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

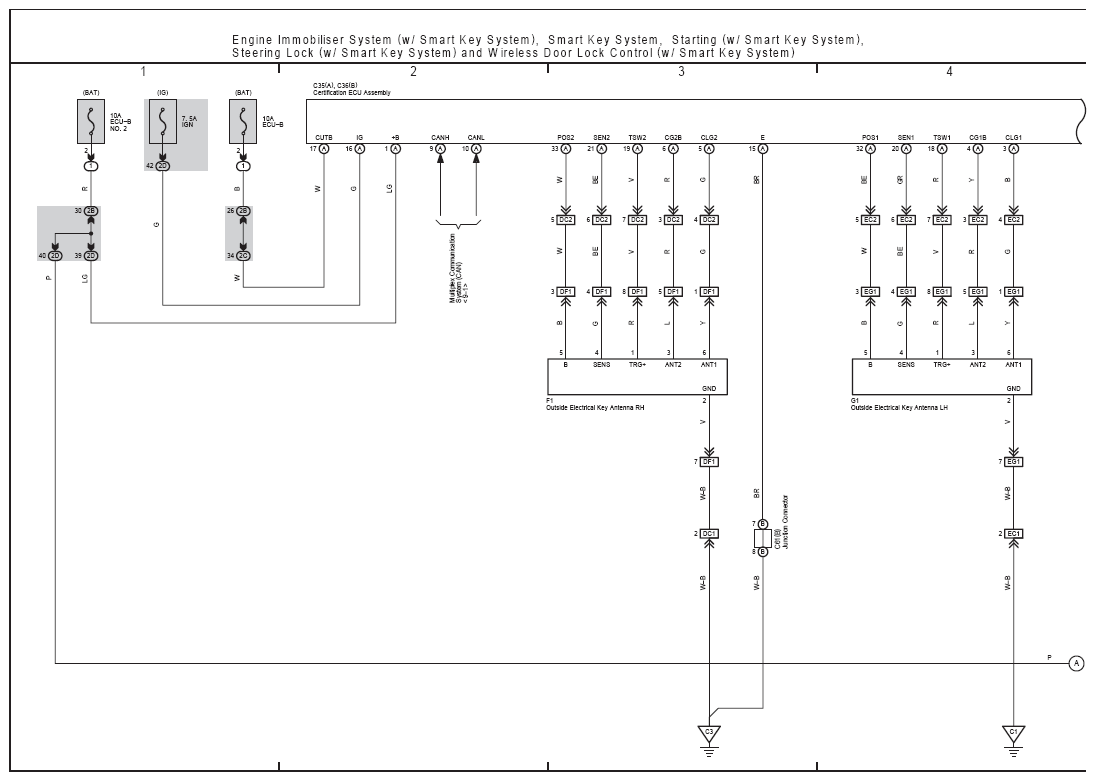

Fig 3: Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

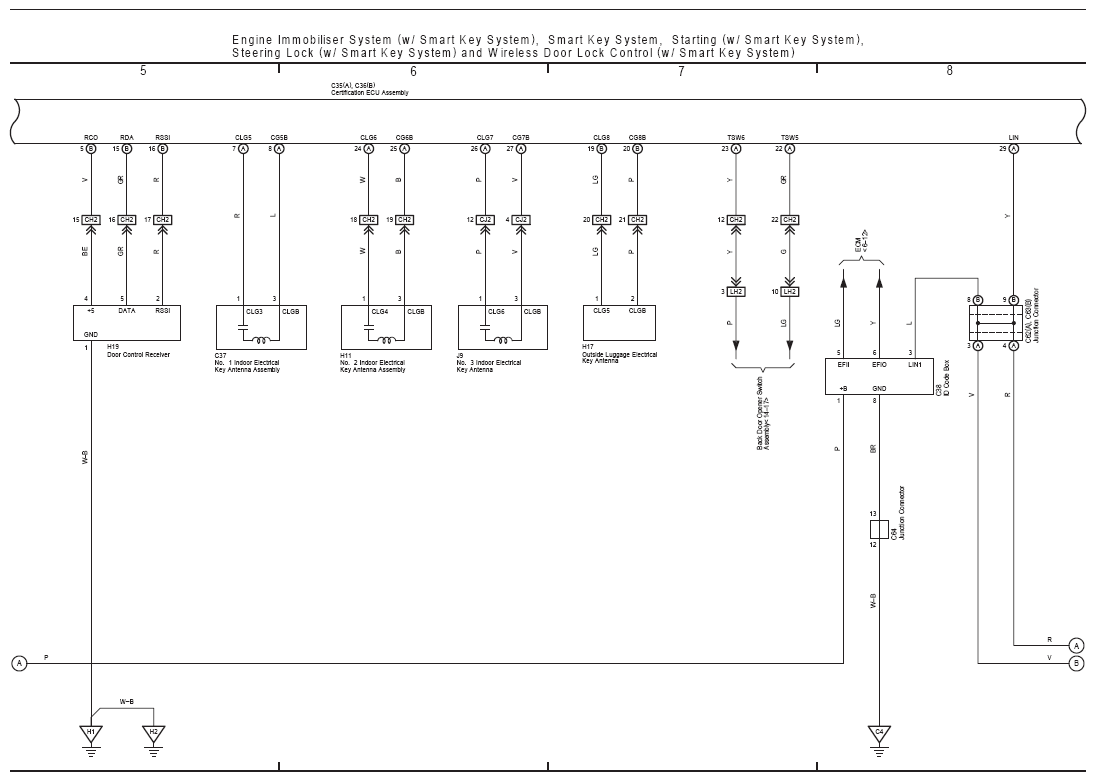

Fig 4: Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

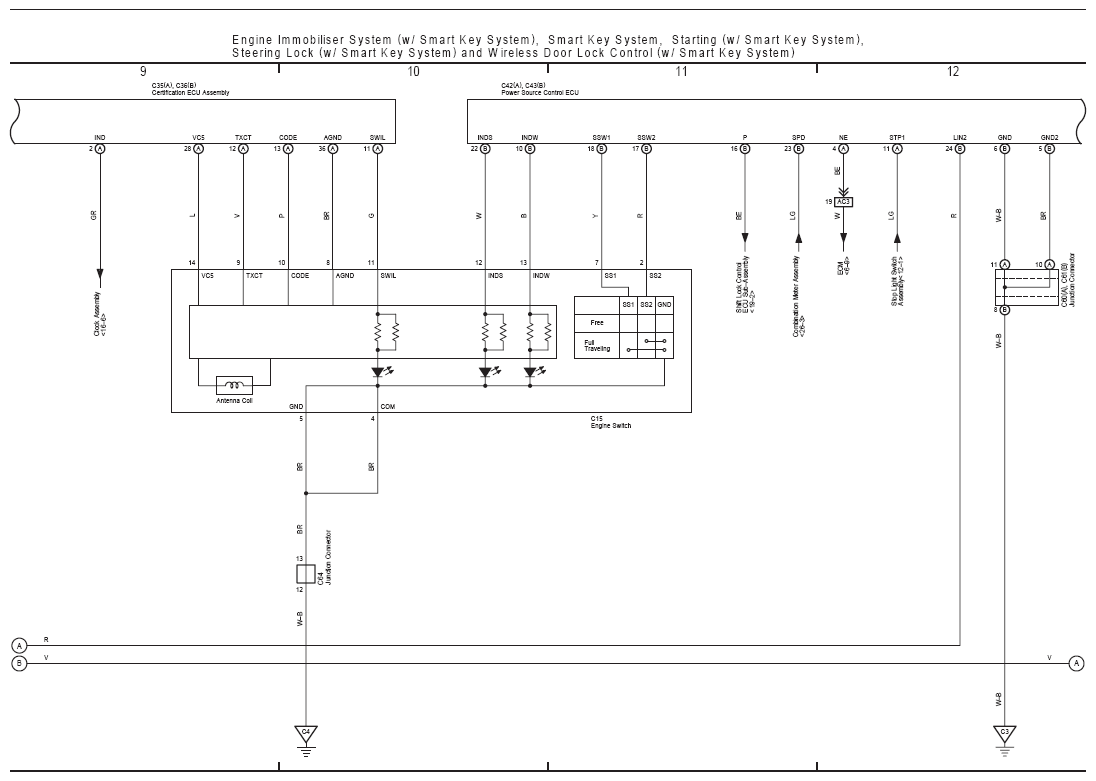

Fig 5: Stating, Engine Immobilizer System & Steering Lock (w/Smart Key System) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
