Multiplex Communication System (CAN)

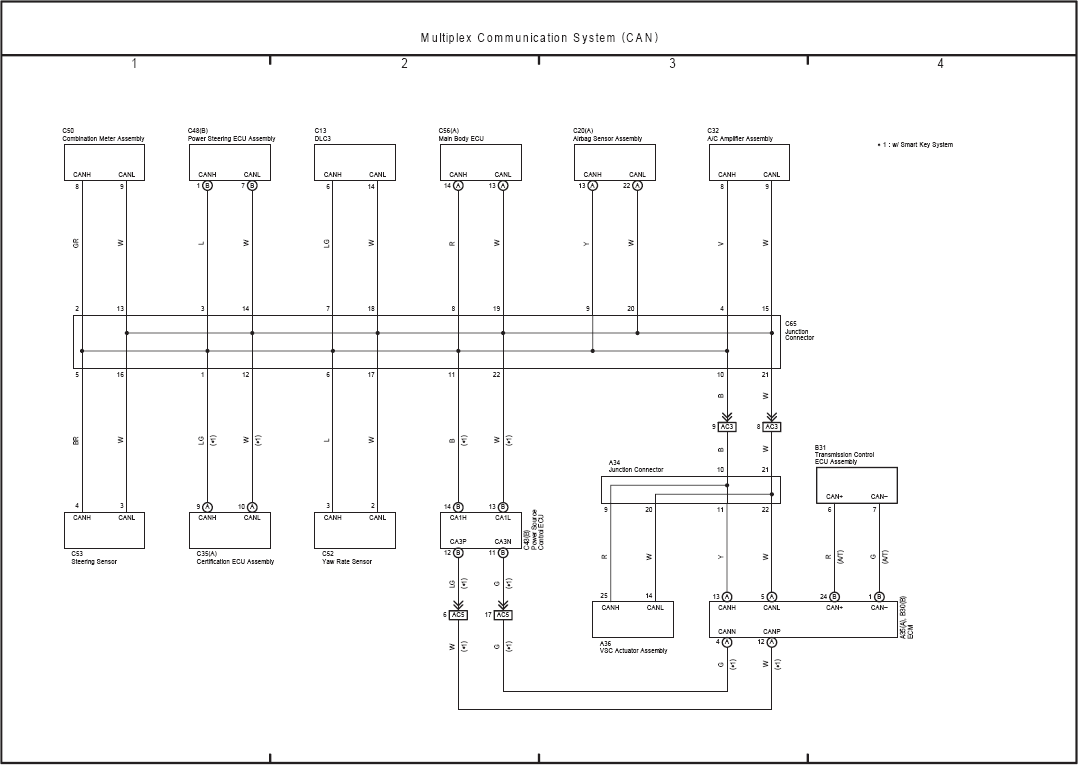

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram

G08760613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
