Position of Parts in Engine Compartment

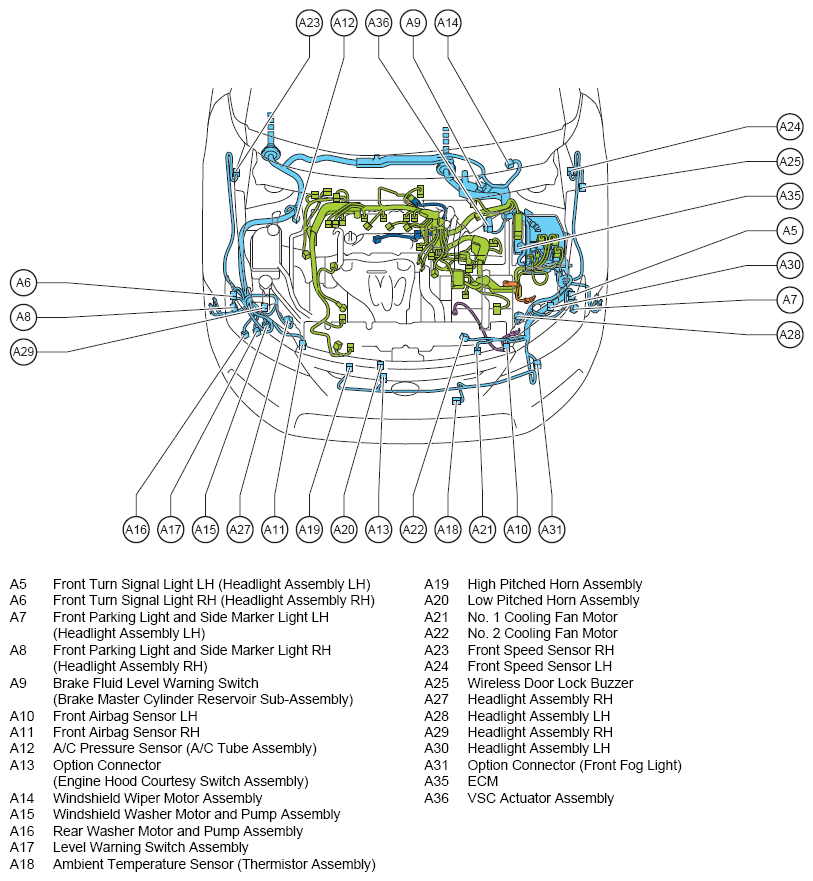

Fig 1: Engine Compartment Parts (1 Of 2)
G08760175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

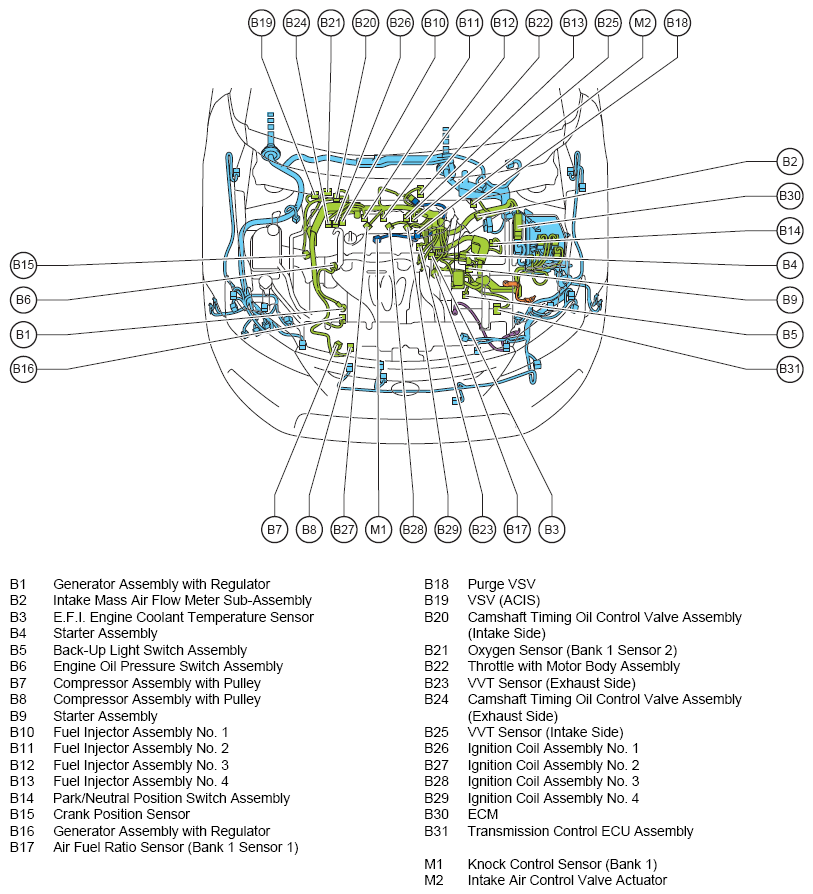

Fig 2: Engine Compartment Parts (1 Of 2)
G08760176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
