Parts Location: Illustration

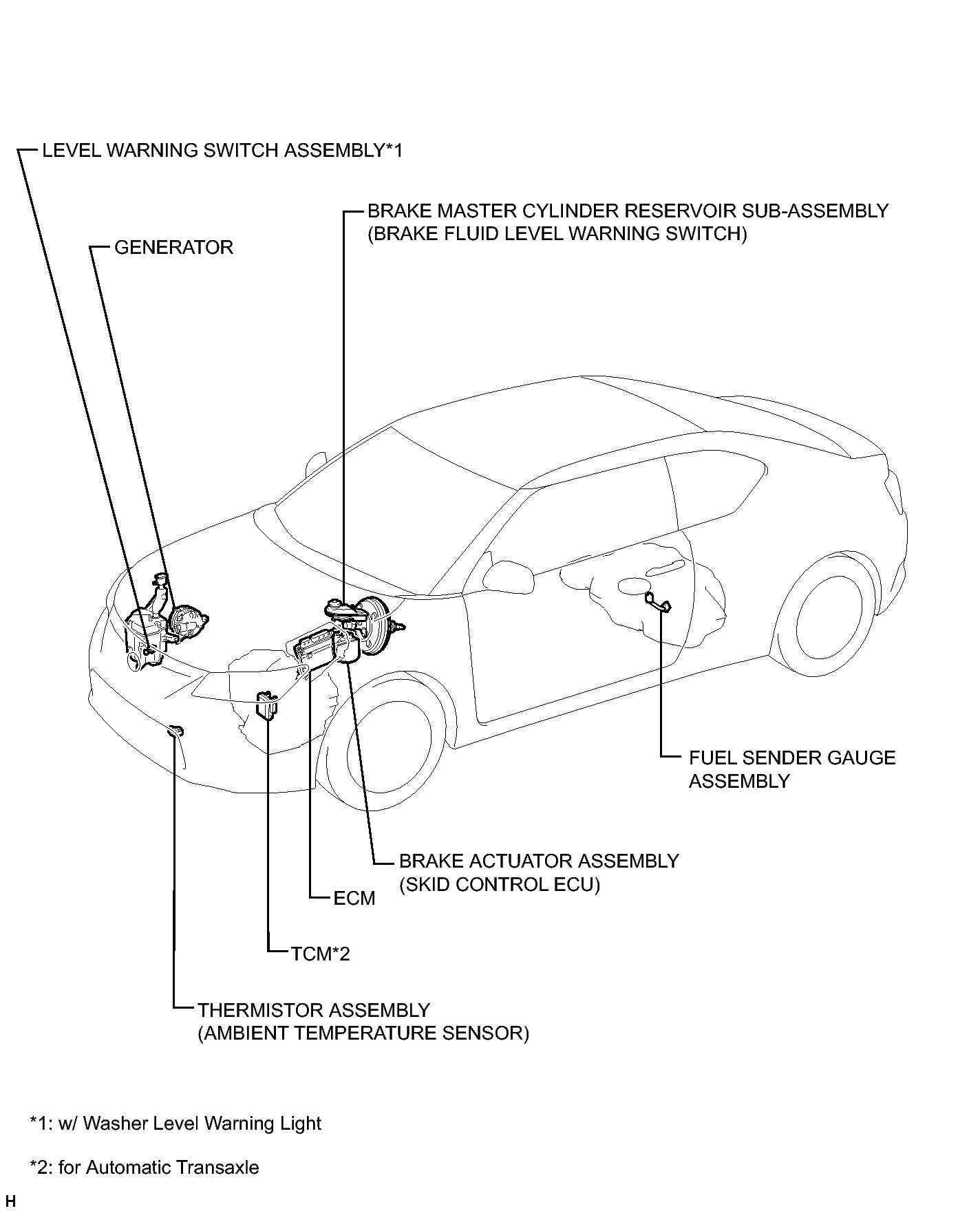

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 6)
GTY310271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

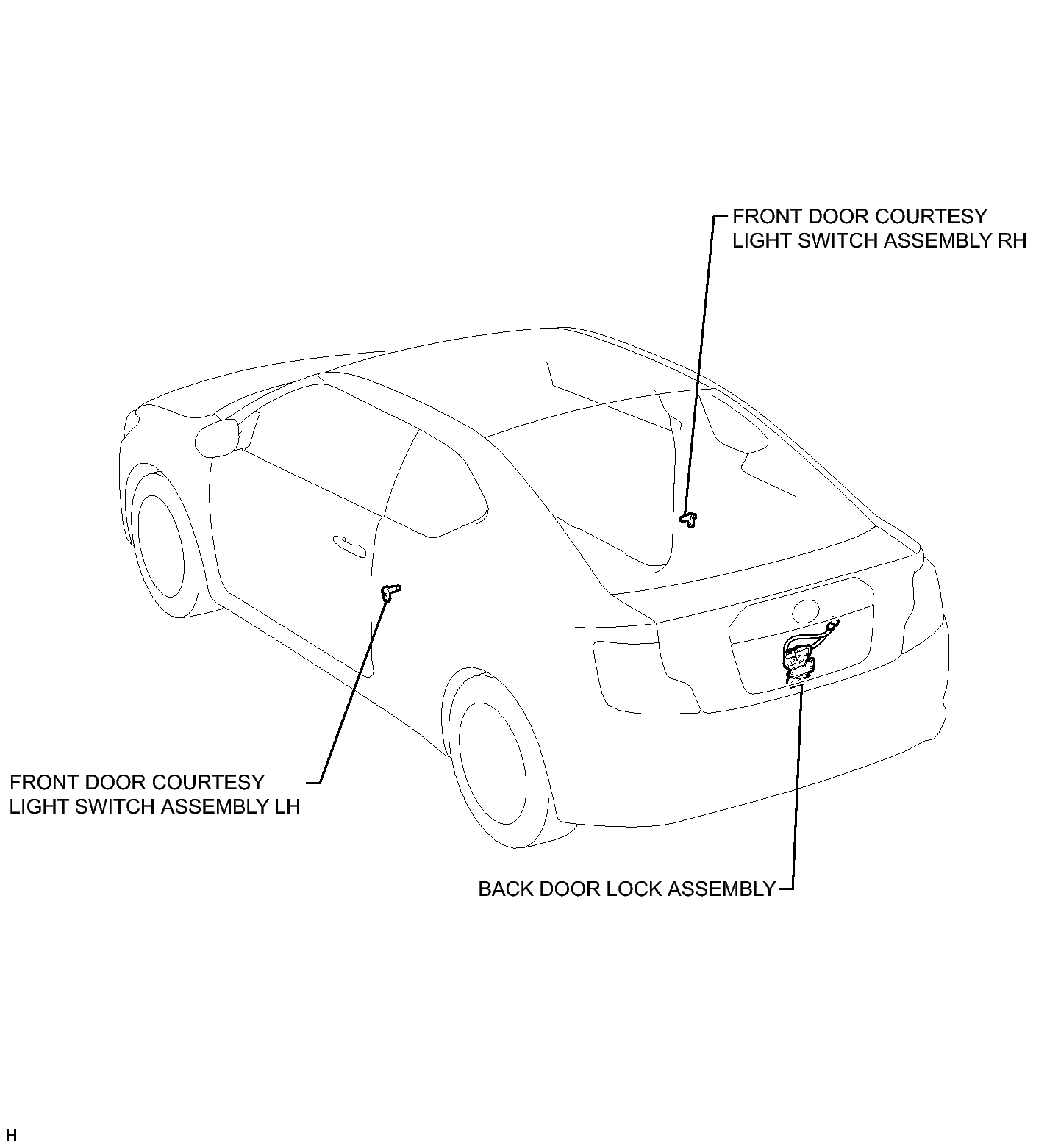

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 6)
GTY310210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

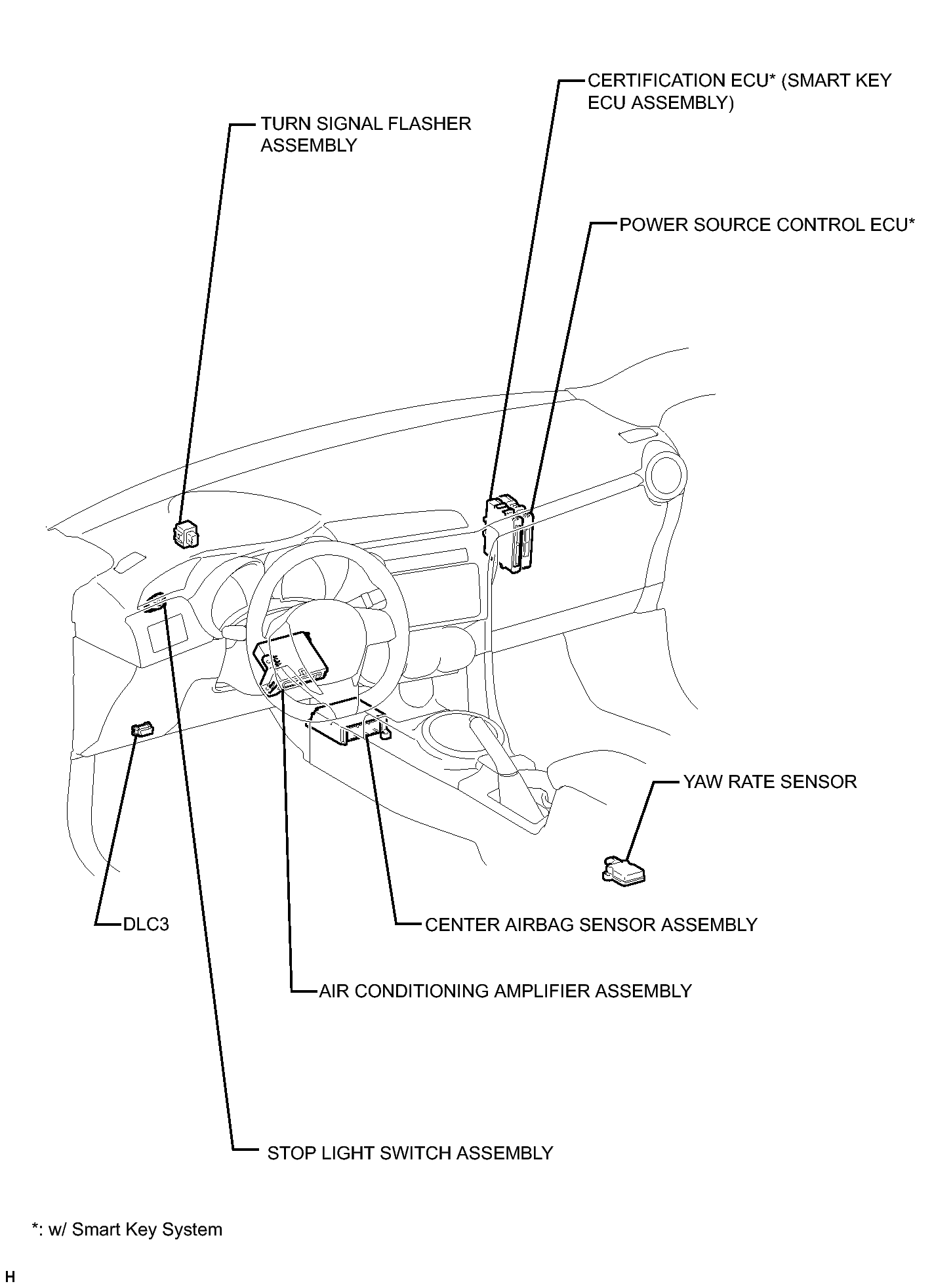

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 6)
GTY311710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

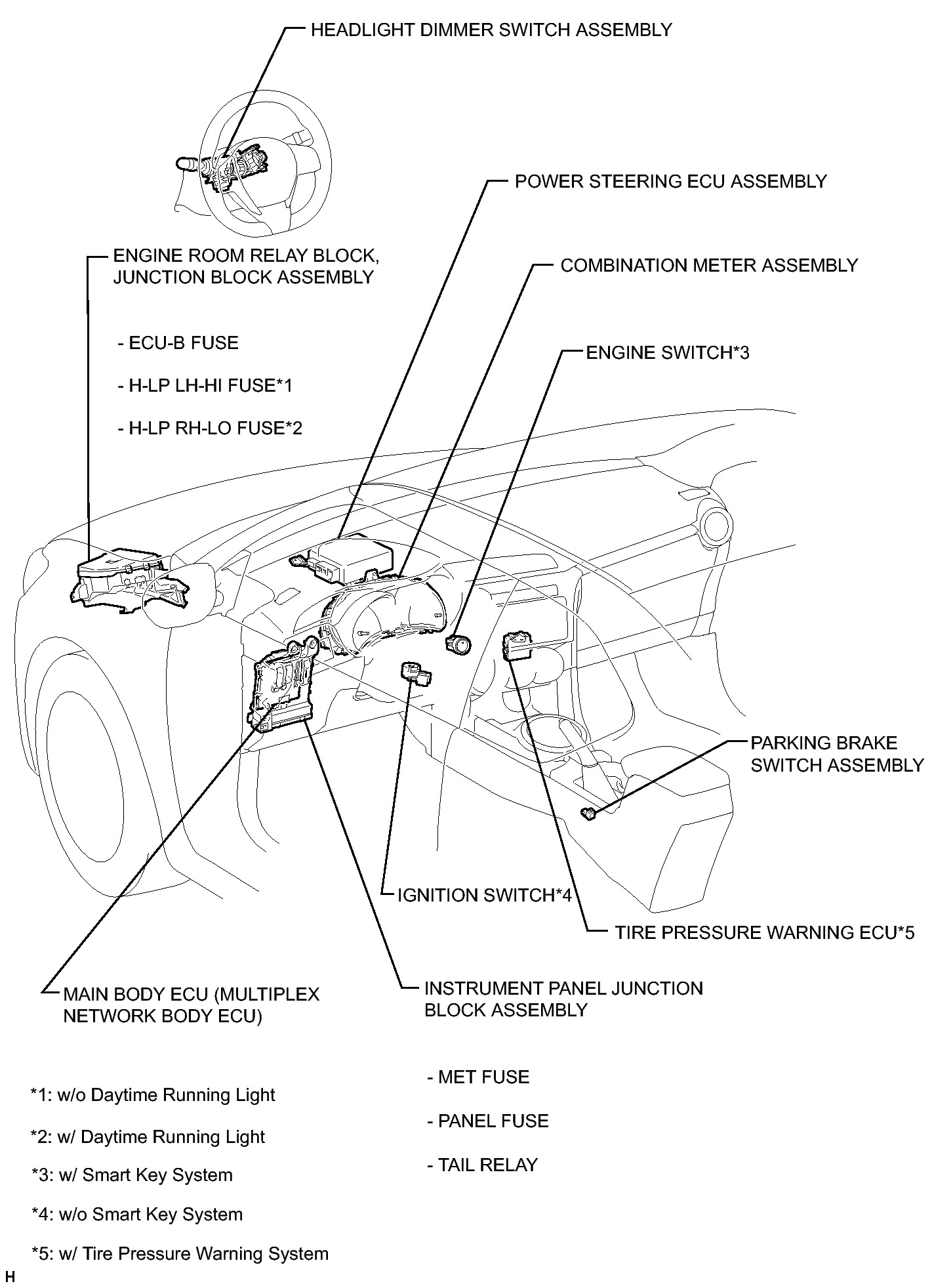

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 6)
GTY311324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (5 Of 6)
GTY311431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (6 Of 6)
GTY312134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
