Turn Signal And Hazard Warning Light

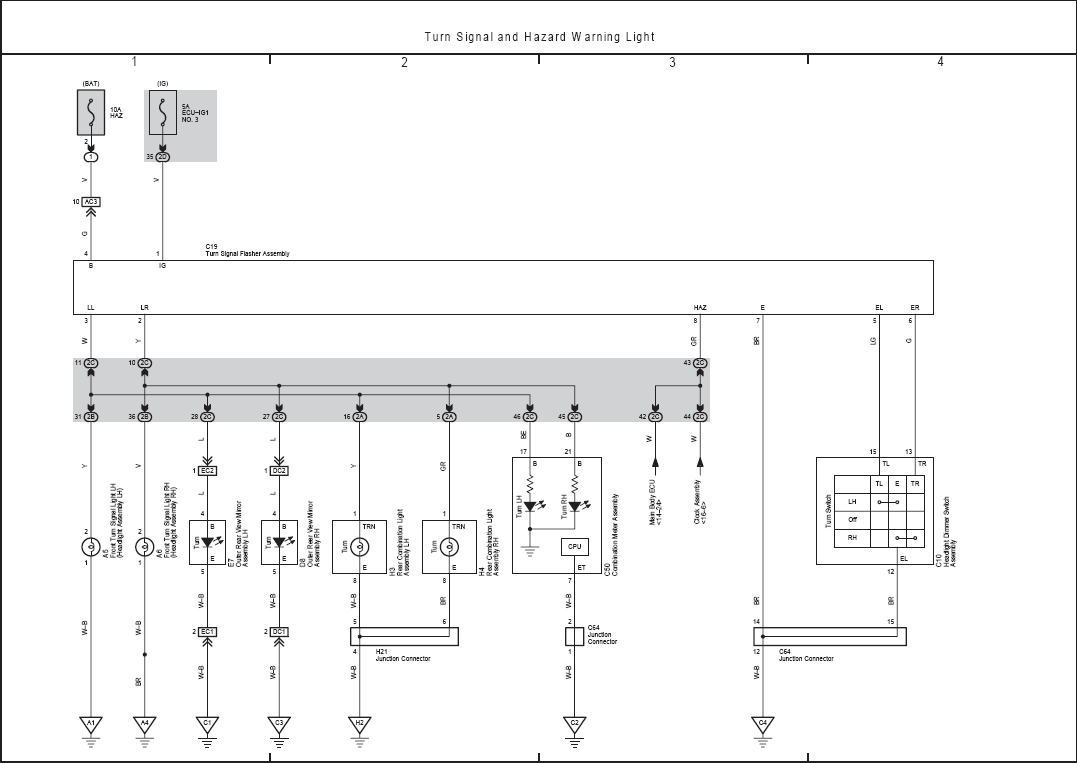

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram

G08760619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
