Shift Lock, Horn

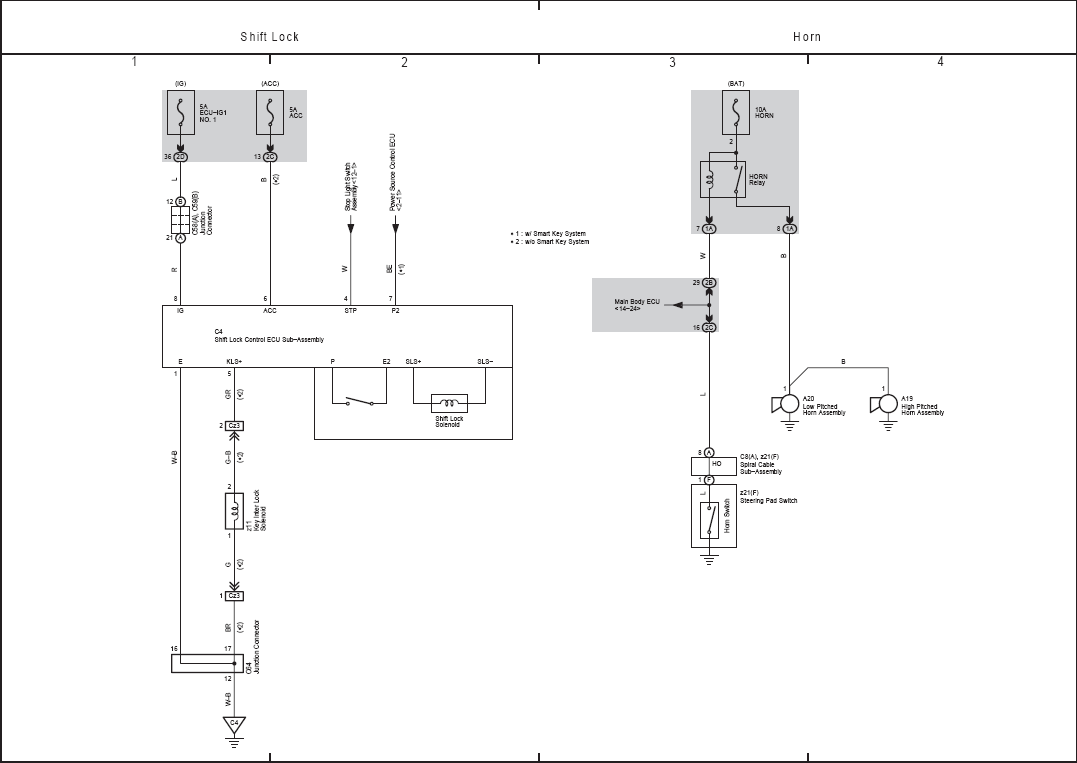

Fig 1: Shift Lock, Horn Electrical Wiring Diagram

G08760634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
