SRS, Seat Belt Warning, Clock

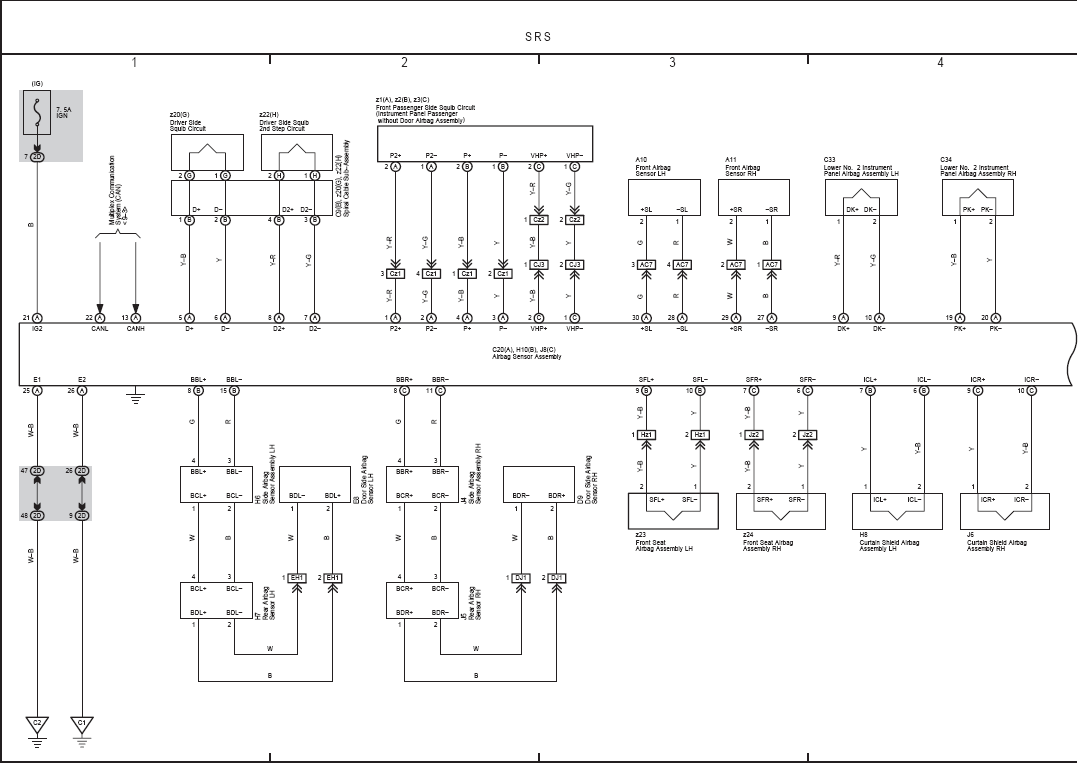

Fig 1: SRS Electrical Wiring Diagram
G08760629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

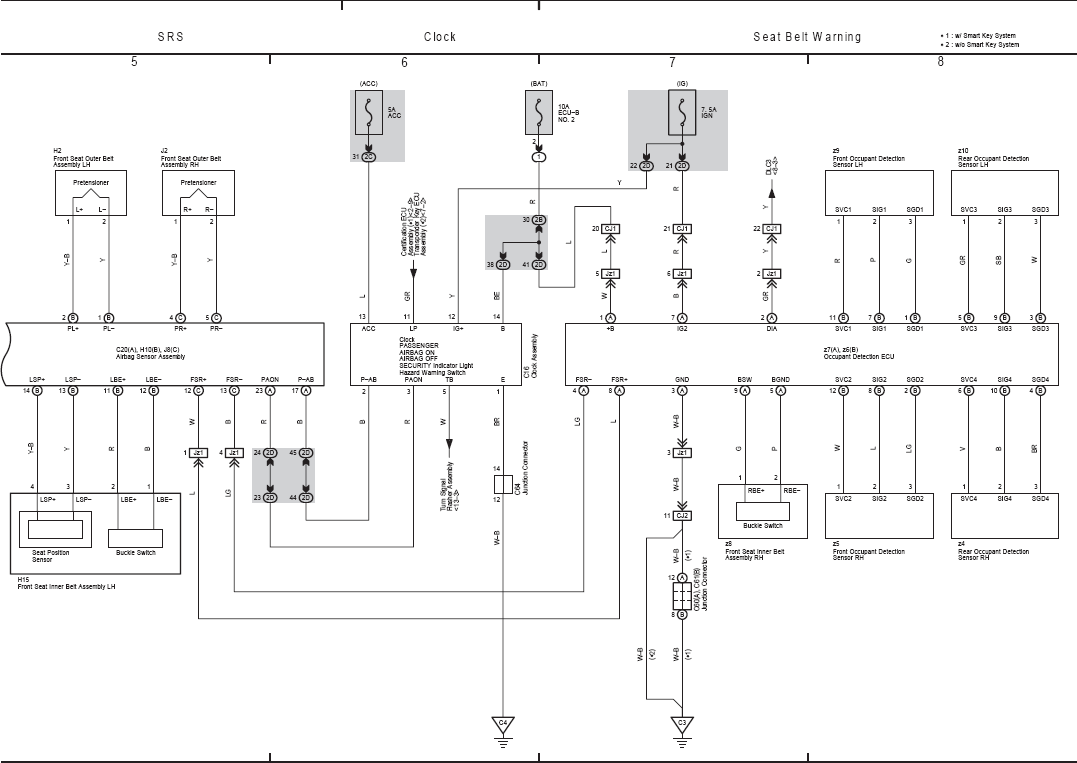

Fig 2: Clock Electrical Wiring Diagram
G08760630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

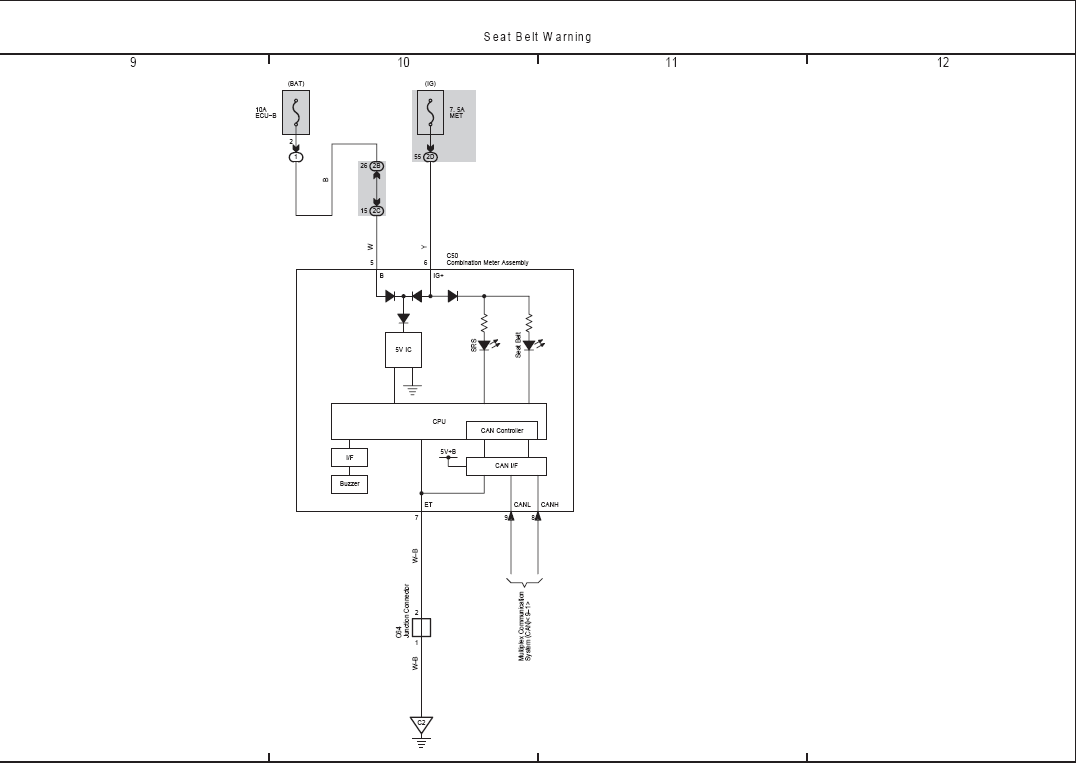

Fig 3: Seat Belt Warning Electrical Wiring Diagram
G08760631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
