Illumination, , Taillight, Light Reminder, Back Door Opener, Power Window, Sliding Roof, Key Reminder (w/o Smart Key System), Option Connector (TVIP), Door Lock Control

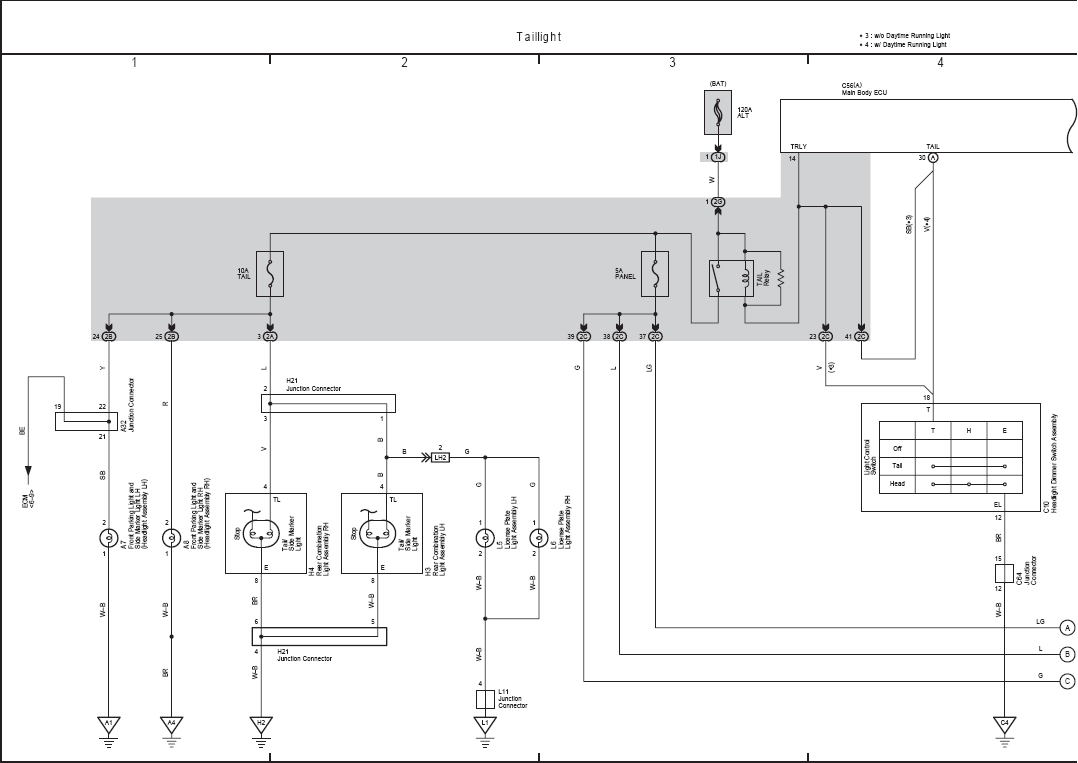

Fig 1: Taillight Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

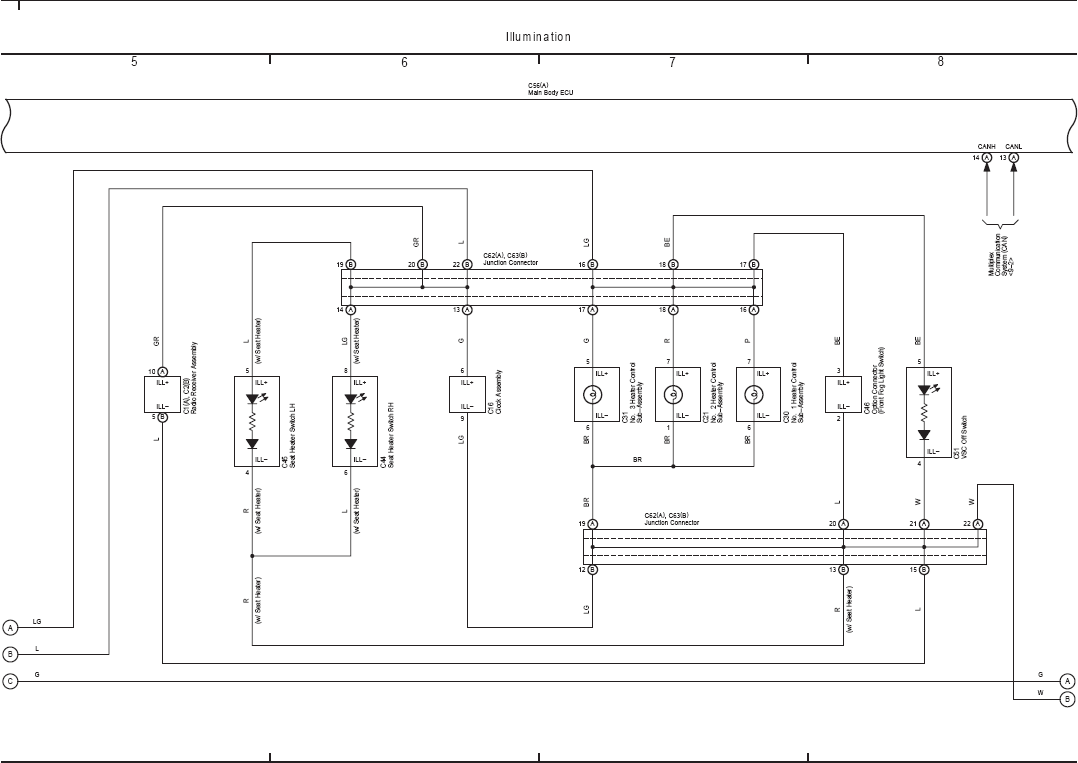

Fig 2: Illumination Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

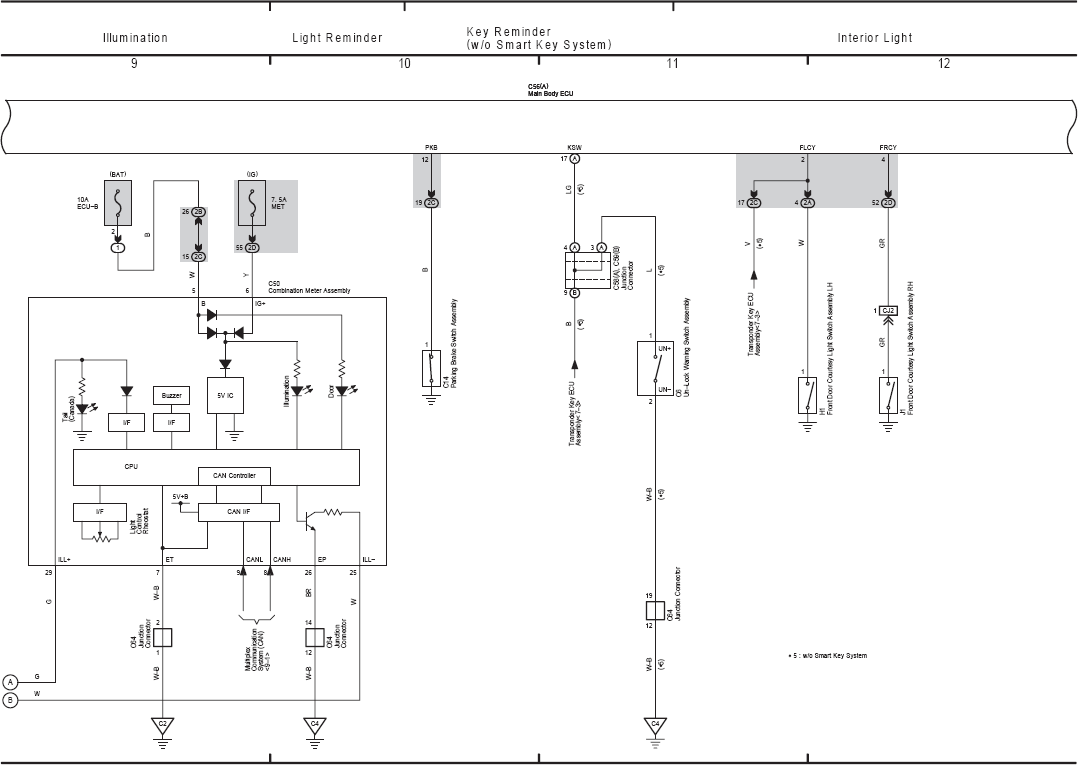

Fig 3: Key Reminder (w/o Smart Key System) Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

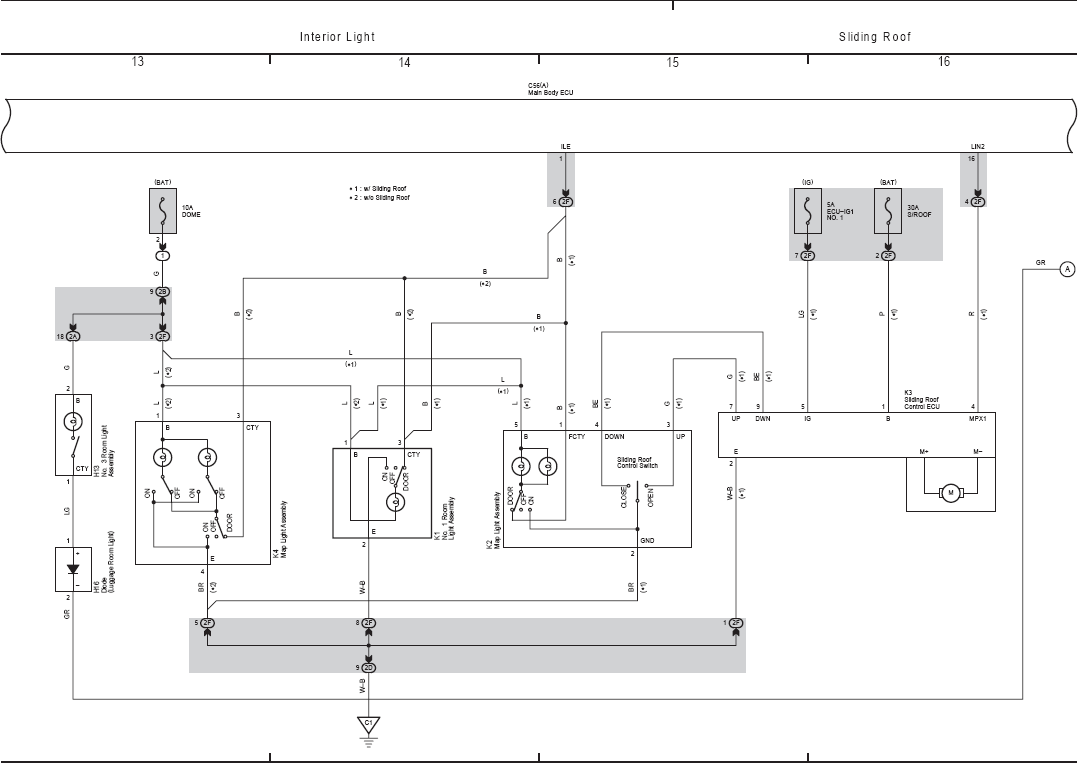

Fig 4: Interior Light Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

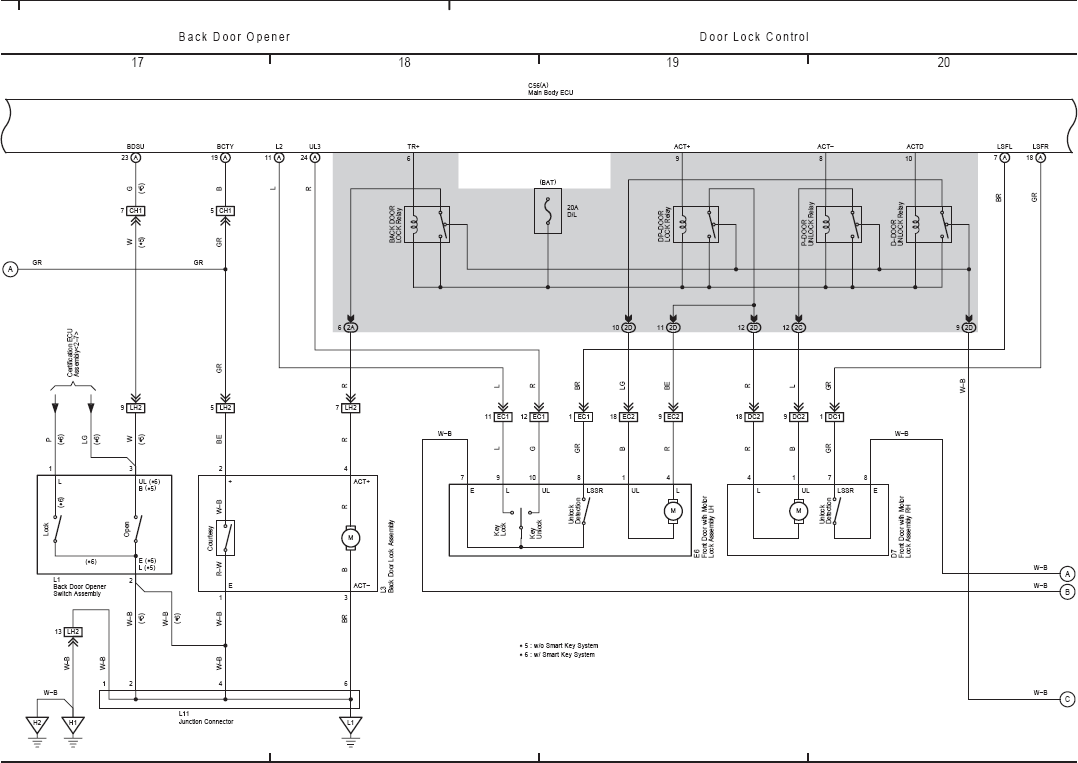

Fig 5: Back Door Opener Electrical Wiring Diagram

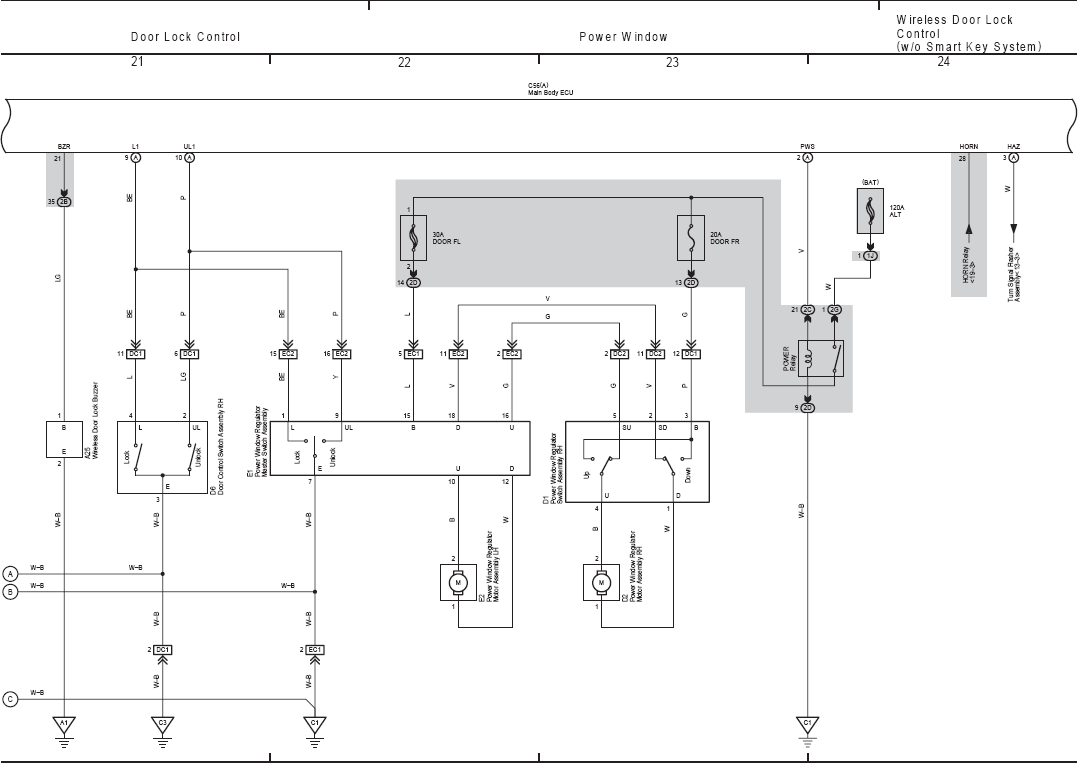

Fig 6: Power Window Electrical Wiring Diagram

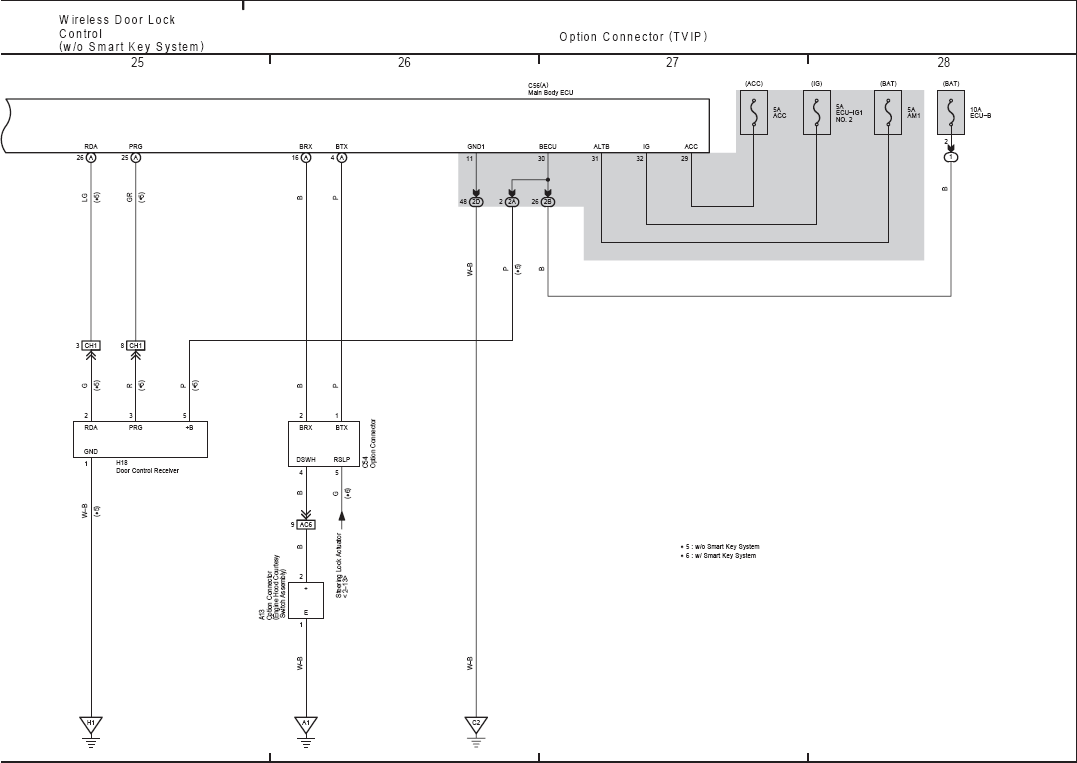

Fig 7: Wireless Door Lock Control (w/o Smart Key System) Electrical Wiring Diagram
