Overall Electrical Wiring Diagram: Ignition

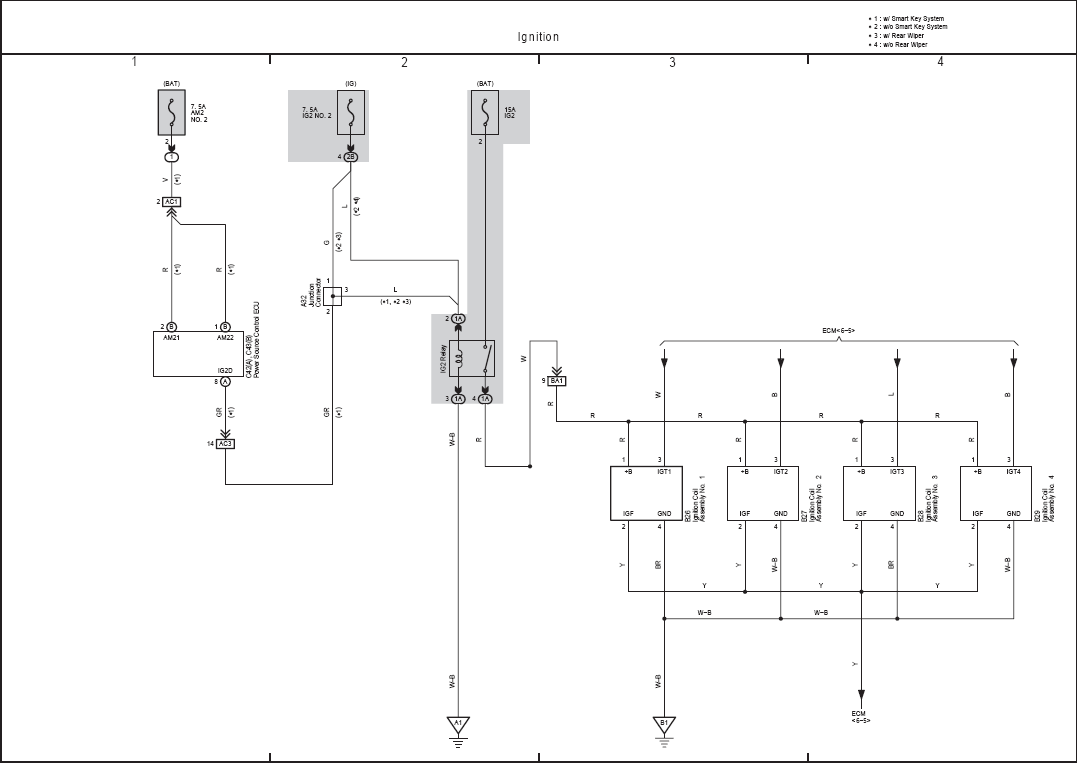

Fig 1: Ignition Electrical Wiring Diagram

G08760604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
