Headlight (w/o Daytime Running Light), Option Connector (Front Fog Light)

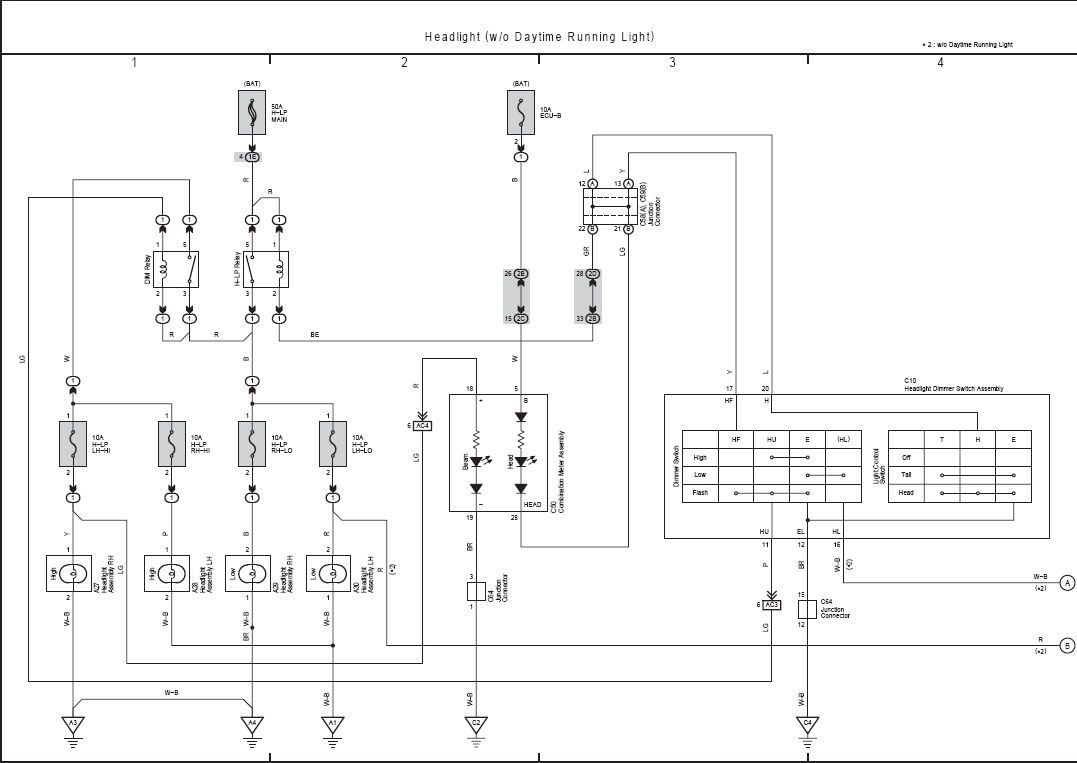

Fig 1: Headlight (w/o Daytime Running Light) Electrical Wiring Diagram
G08760616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Option Connector (Front Fog Light) Electrical Wiring Diagram
G08760617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
