Headlight (w/ Daytime Running Light)

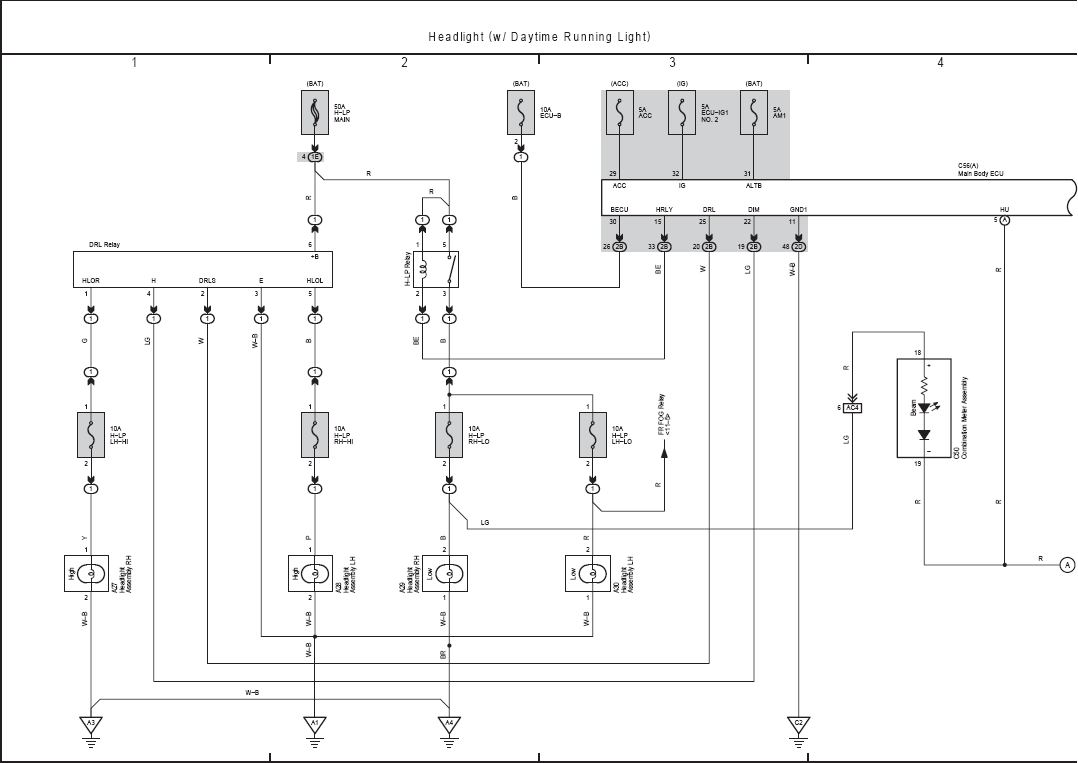

Fig 1: Headlight (w/Daytime Running Light) Electrical Wiring Diagram (1 Of 2)
G08760614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight (w/Daytime Running Light) Electrical Wiring Diagram (2 Of 2)
G08760615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
