Front Wiper And Washer

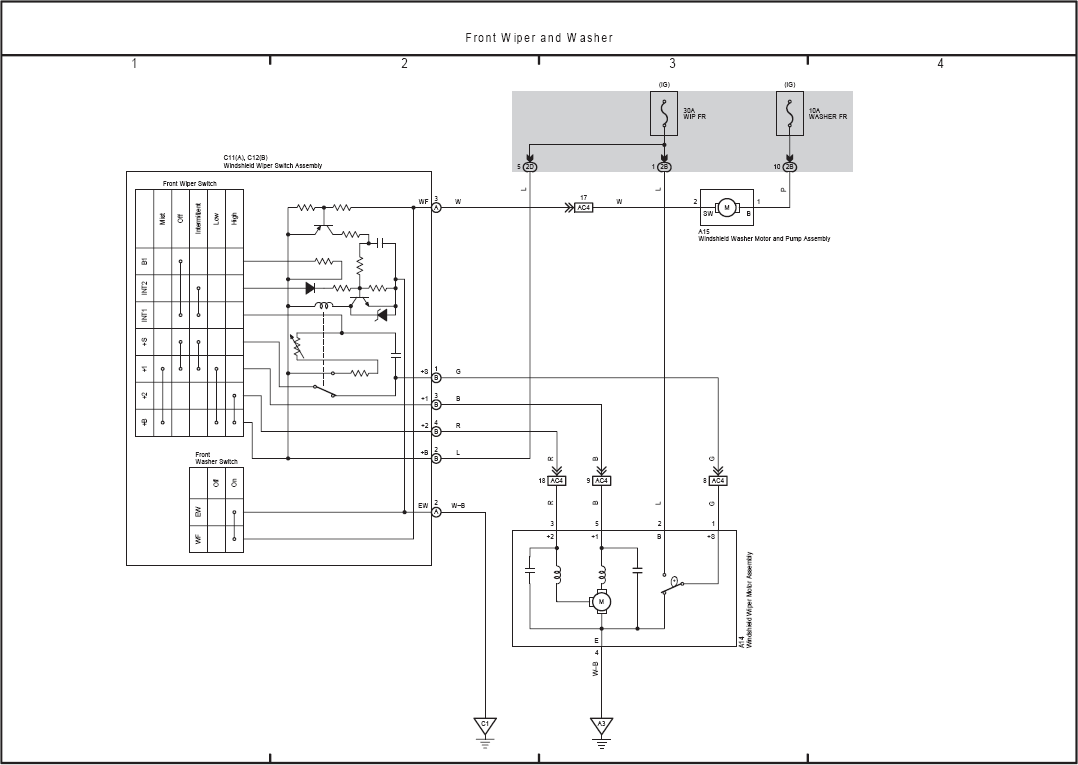

Fig 1: Front Wiper And Washer Electrical Wiring Diagram

G08760635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
