Parking Brake Lever: Components: Illustration

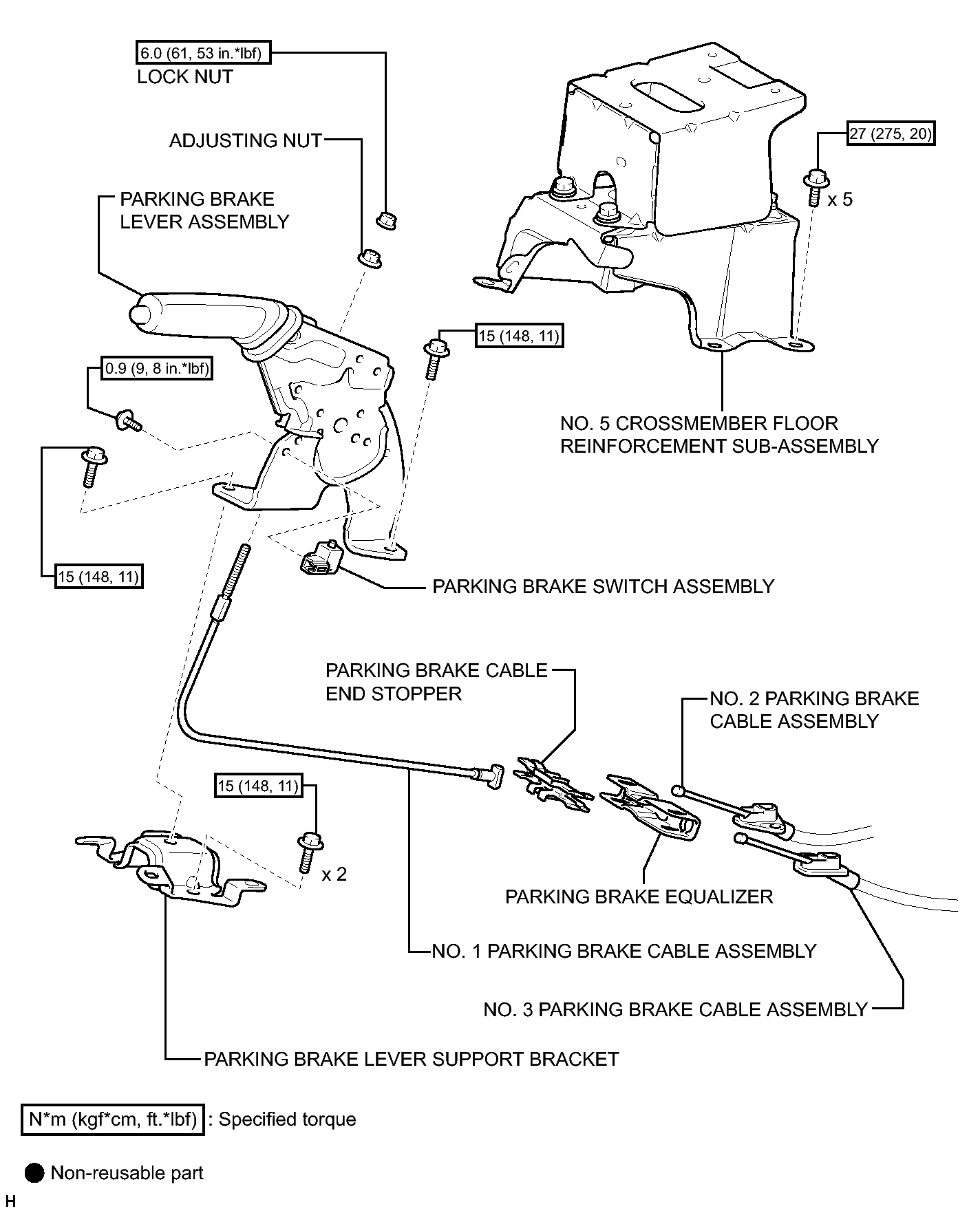

Fig 1: Identifying Parking Brake Lever Replacement Components With Torque Specifications

GTY312334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
