Parking Brake Cable: Removal: Removal

HINT:

• Use the same procedure for the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly.
• The procedure listed below is for the No. 3 parking brake cable assembly.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

2. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

   Refer to REMOVAL

3. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

   Refer to REMOVAL

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

   Refer to REMOVAL

5. REMOVE FRONT UPPER NO. 1 FLOOR HEAT INSULATOR
   1. Remove the 3 nuts and front upper No. 1 floor heat insulator.
      Fig 1: Identifying 3 Nuts And Front Upper No. 1 Floor Heat Insulator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT UPPER NO. 2 FLOOR HEAT INSULATOR
   1. Remove the 3 nuts and front upper No. 2 floor heat insulator.
      Fig 2: Identifying 3 Nuts And Front Upper No. 2 Floor Heat Insulator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. DISCONNECT PARKING BRAKE CABLE SUPPORT CLAMP SUB-ASSEMBLY
   1. Detach the clamp to disconnect the parking brake cable support clamp sub-assembly.
      Fig 3: Identifying Parking Brake Cable Support Clamp Sub-Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
   1. Remove the 5 bolts.

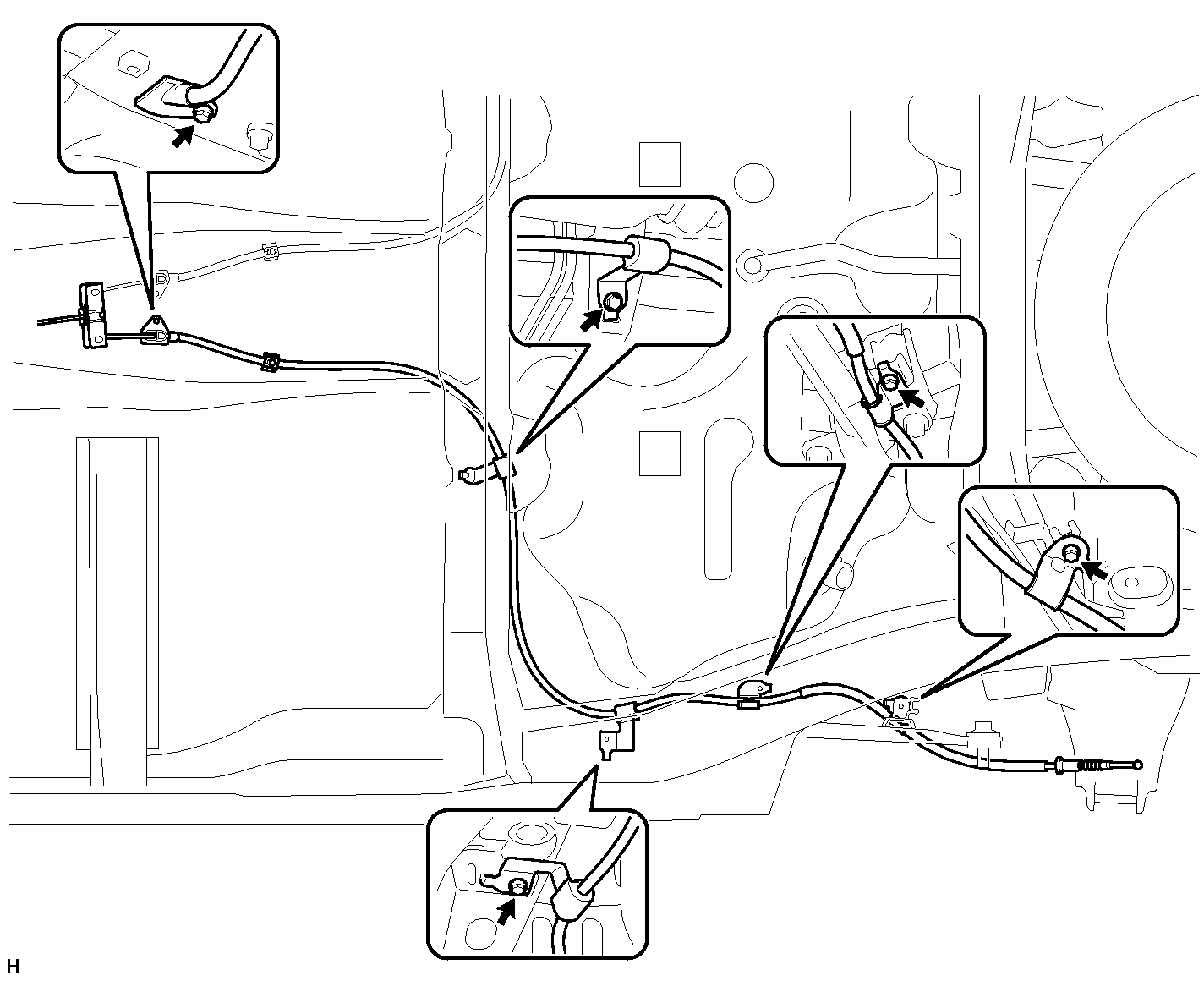

      Fig 4: Identifying 5 Bolts Of No. 3 Parking Brake Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Pull out the No. 3 parking brake cable assembly to the outside of the body.
      Fig 5: Pulling Out The No. 3 Parking Brake Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the parking brake lever protector.
   4. Disconnect the No. 3 parking brake cable assembly from the rear disc brake cylinder assembly.
      Fig 6: Disconnecting The No. 3 Parking Brake Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the No. 3 parking brake cable assembly.
      Fig 7: Removing No. 3 Parking Brake Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 3 Parking Brake Cable Assembly
      *2	Clip
      *3	Offset Wrench (14 mm)

      HINT:

      Insert an offset wrench (14 mm) at the base of the No. 3 parking brake cable assembly as shown in the illustration to disengage the clip. Pull out the No. 3 parking brake cable assembly from the rear disc brake cylinder assembly.

9. REMOVE PARKING BRAKE CABLE SUPPORT CLAMP SUB-ASSEMBLY
   1. Detach the 2 claws to remove the parking brake cable support clamp sub-assembly from the No. 3 parking brake cable assembly.
      Fig 8: Removing Parking Brake Cable Support Clamp And Parking Brake Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
