Brake Master Cylinder: Components: Illustration

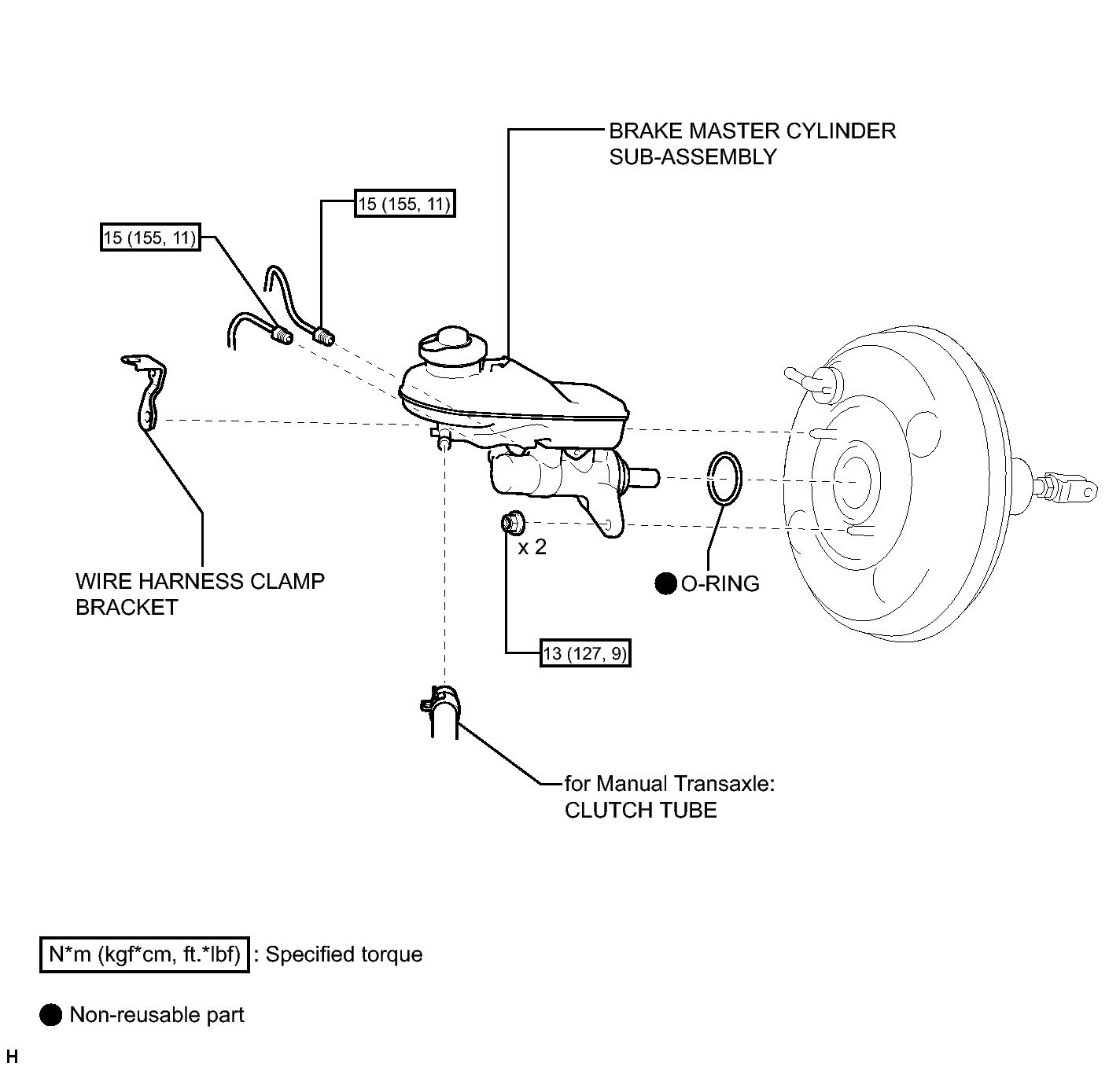

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
GTY311803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

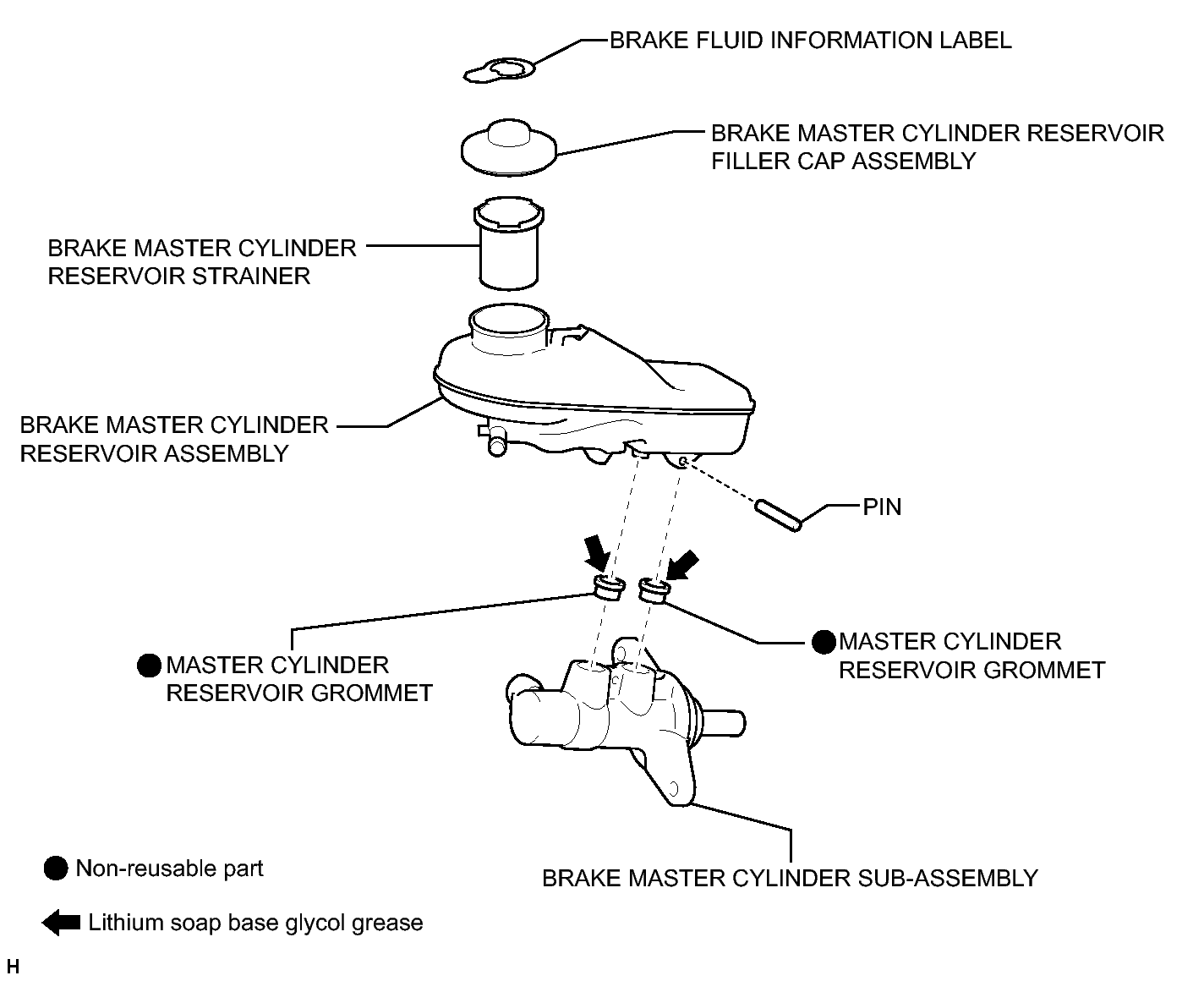

Fig 1: Identifying Brake Master Cylinder Replacement Components (2 Of 2)
GTY313933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
