FRONT SEAT CUSHION HEATER (w/ Seat Heater System): Components: Illustration

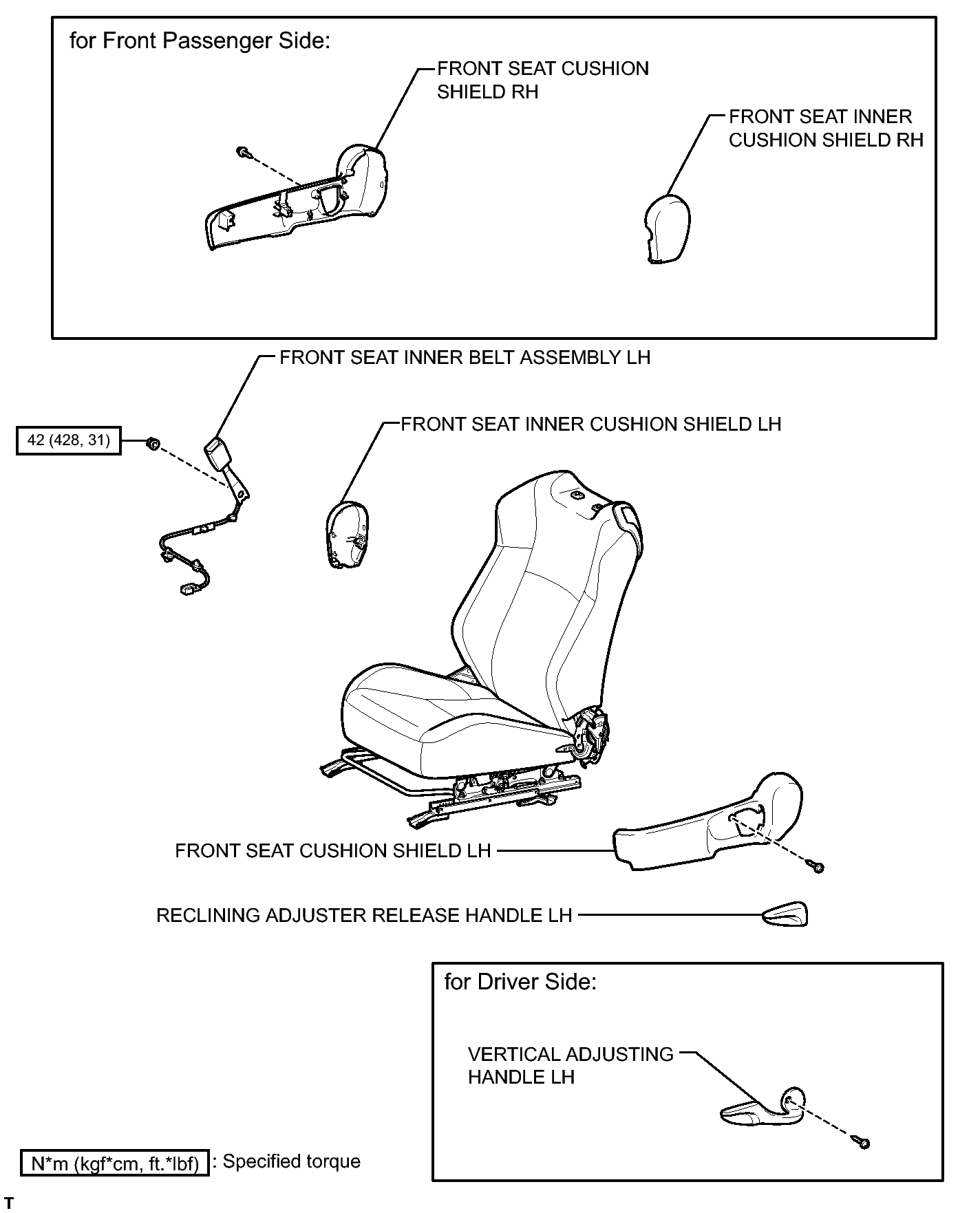

Fig 1: Identifying Front Seat Cushion Heater (W/ Seat Heater System) Replacement Components With Torque Specifications (1 Of 2)
GTY310330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

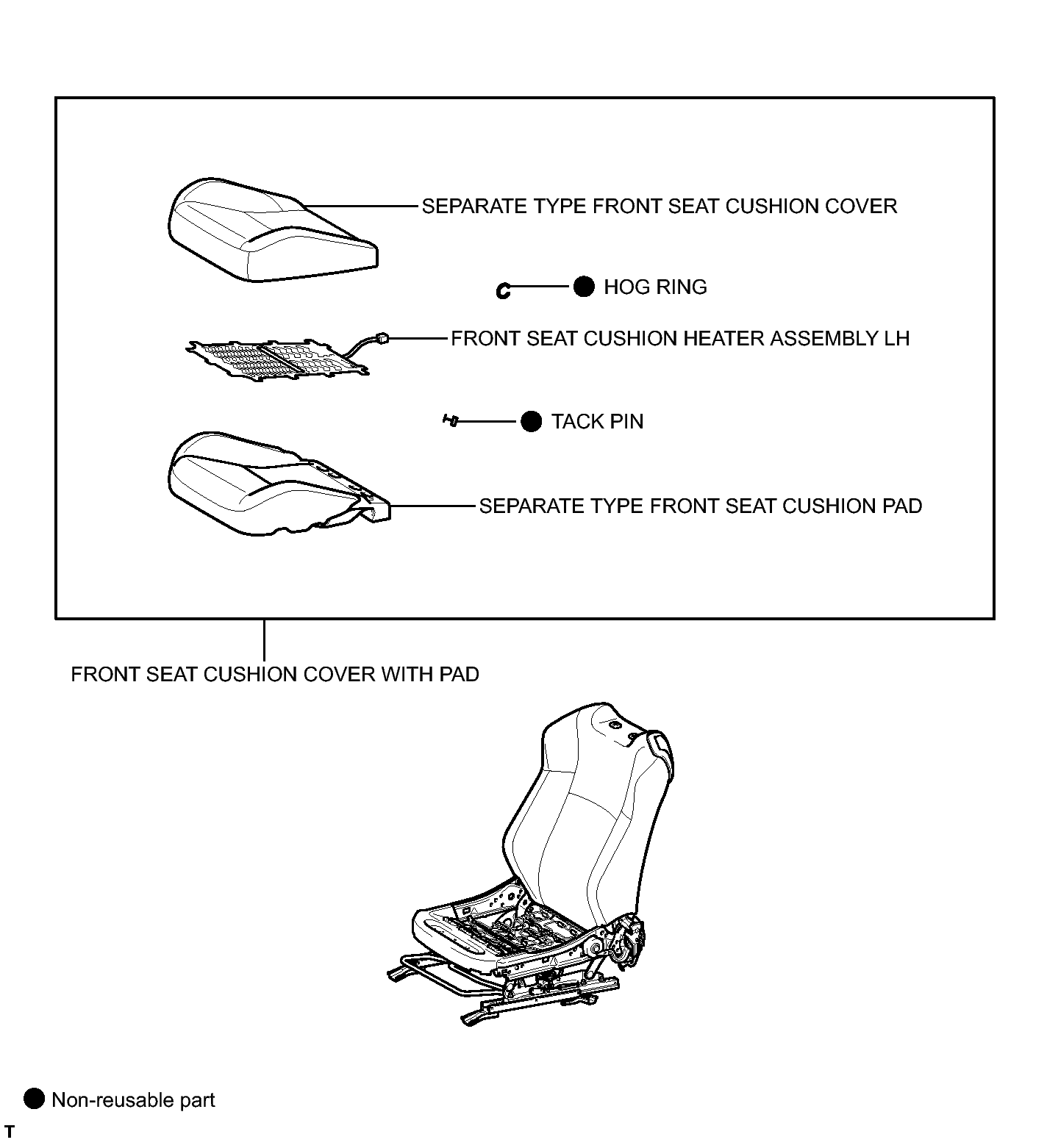

Fig 1: Identifying Front Seat Cushion Heater (W/ Seat Heater System) Replacement Components (2 Of 2)
GTY311547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
