DTC B2779: Engine Starter Communication Malfunction: Wiring Diagram

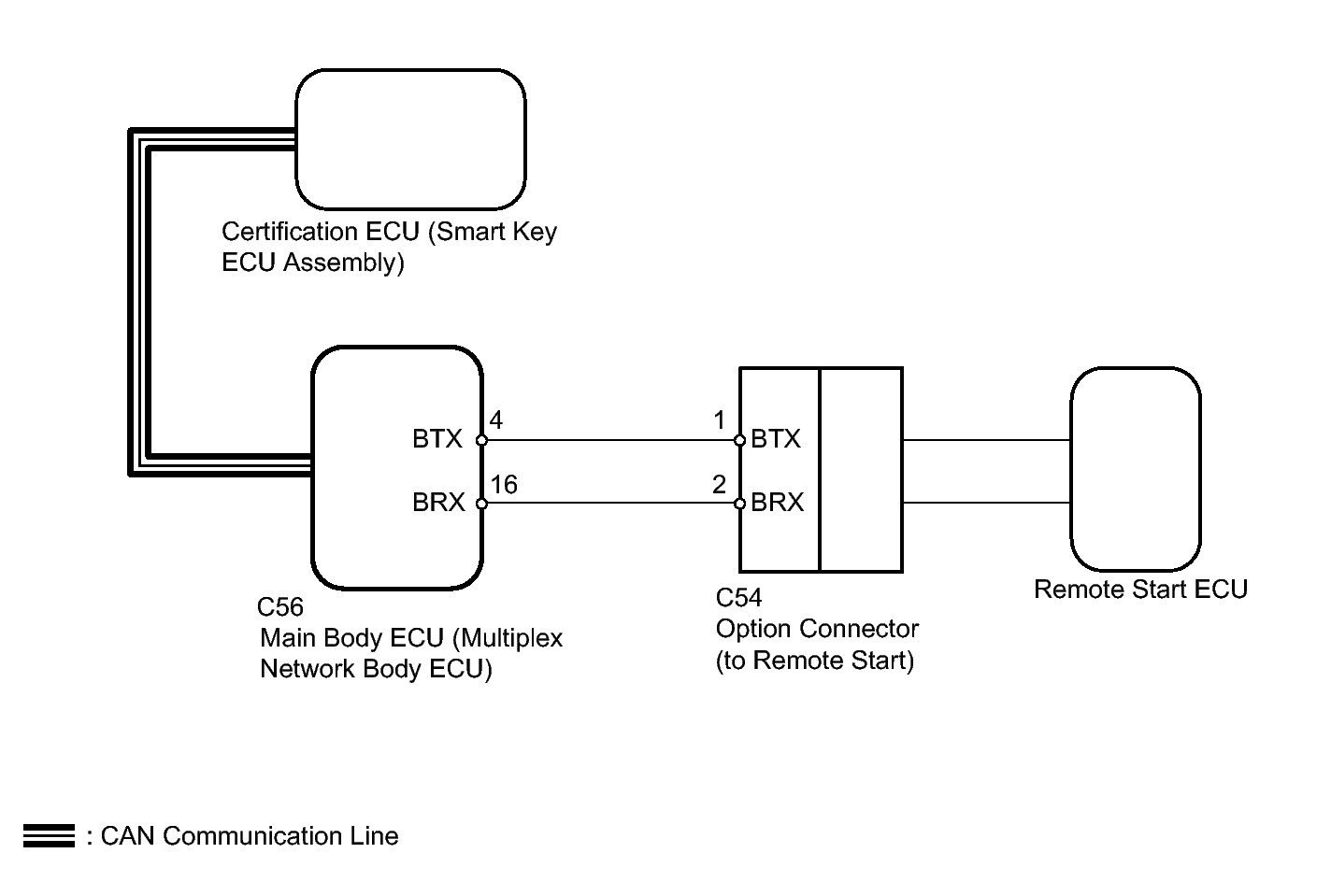

Fig 1: Engine Starter Communication System - Circuit Diagram

GTY312345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
