Driver Side Seat Belt Warning Light Does Not Operate: Wiring Diagram

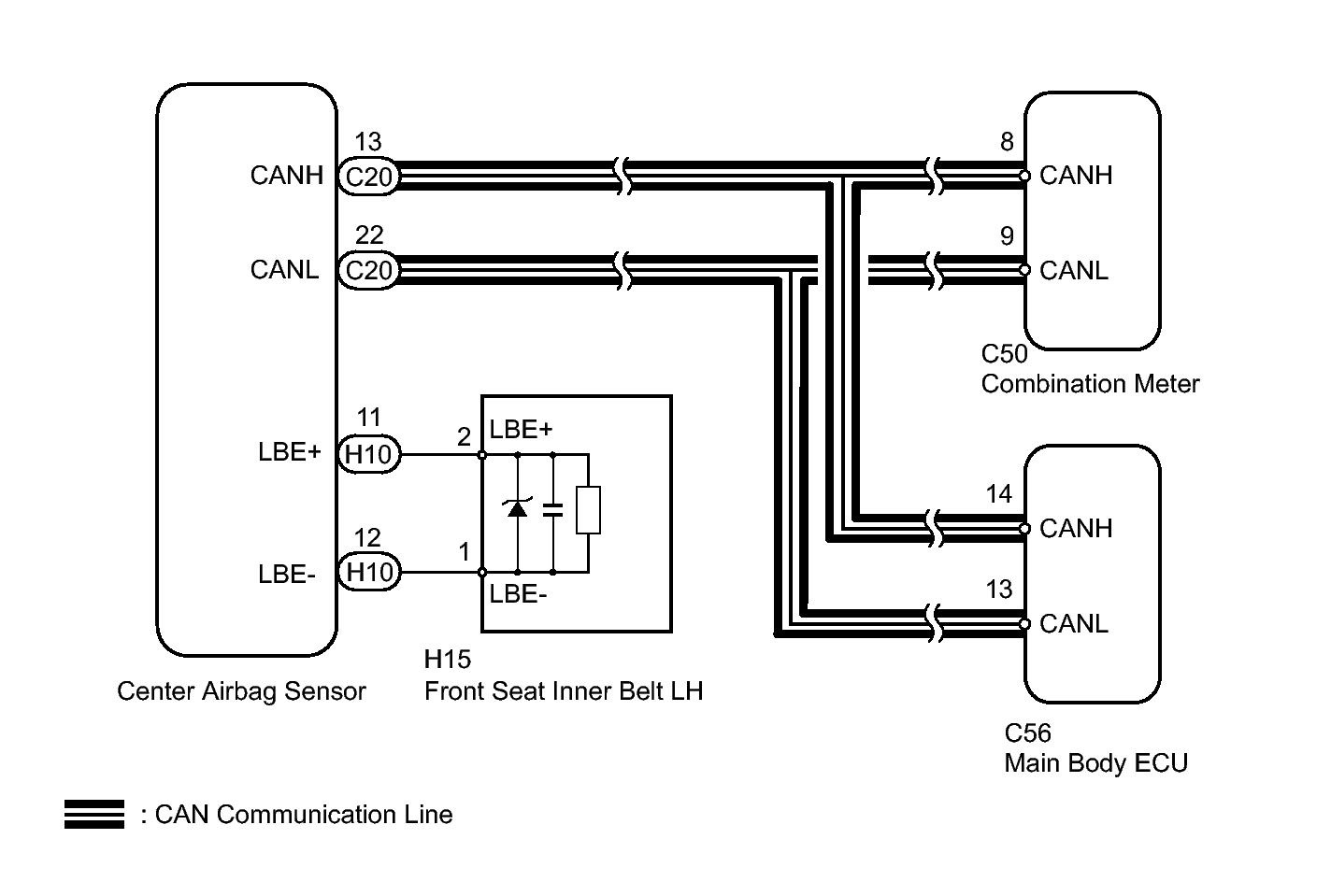

Fig 1: Front Seat Belt Waring Light (LH) - Circuit Diagram

GTY312176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
