Parts Location: Illustration

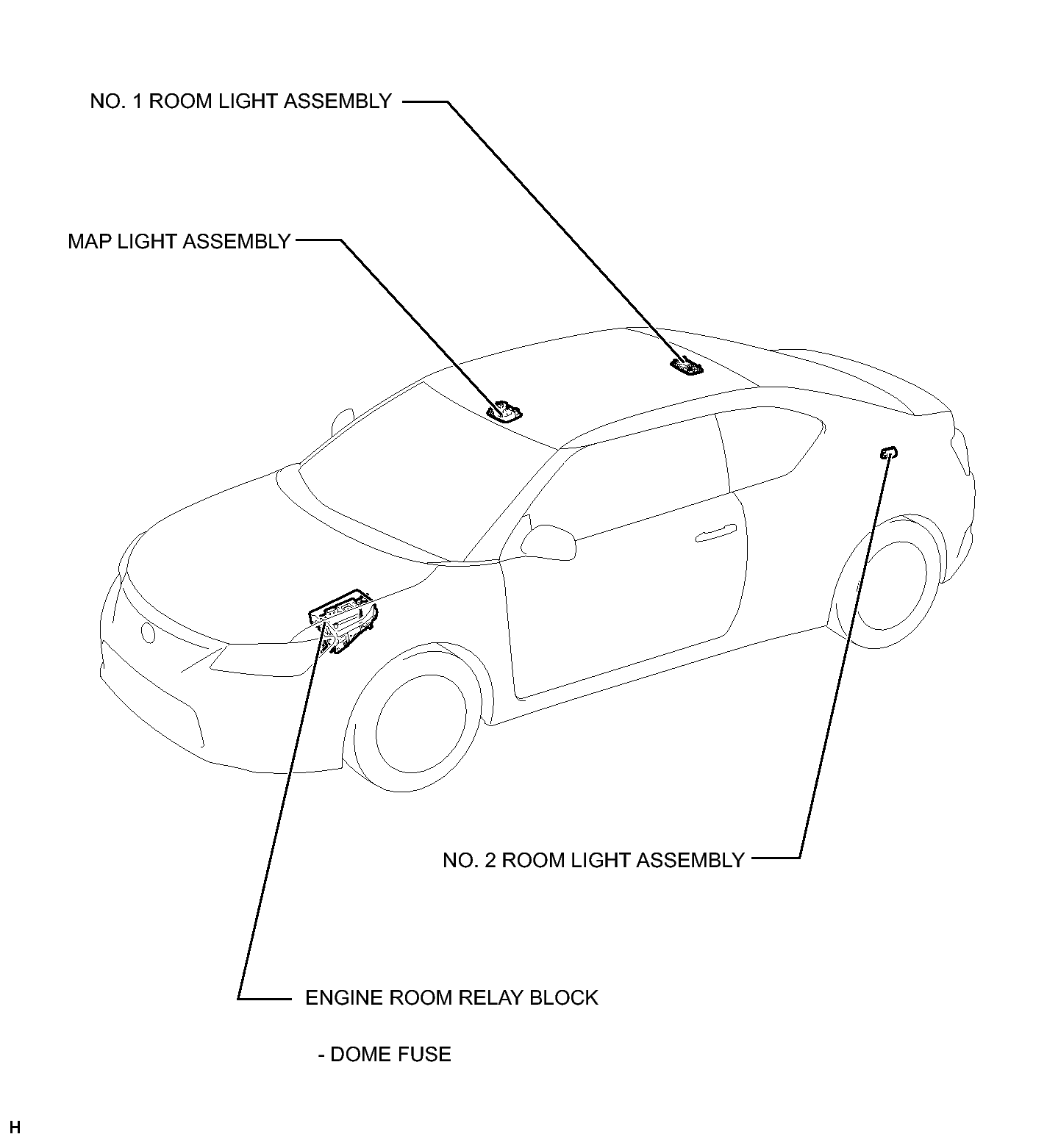

Fig 1: Identifying Lighting System Components Location (1 Of 3)
GTY314075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

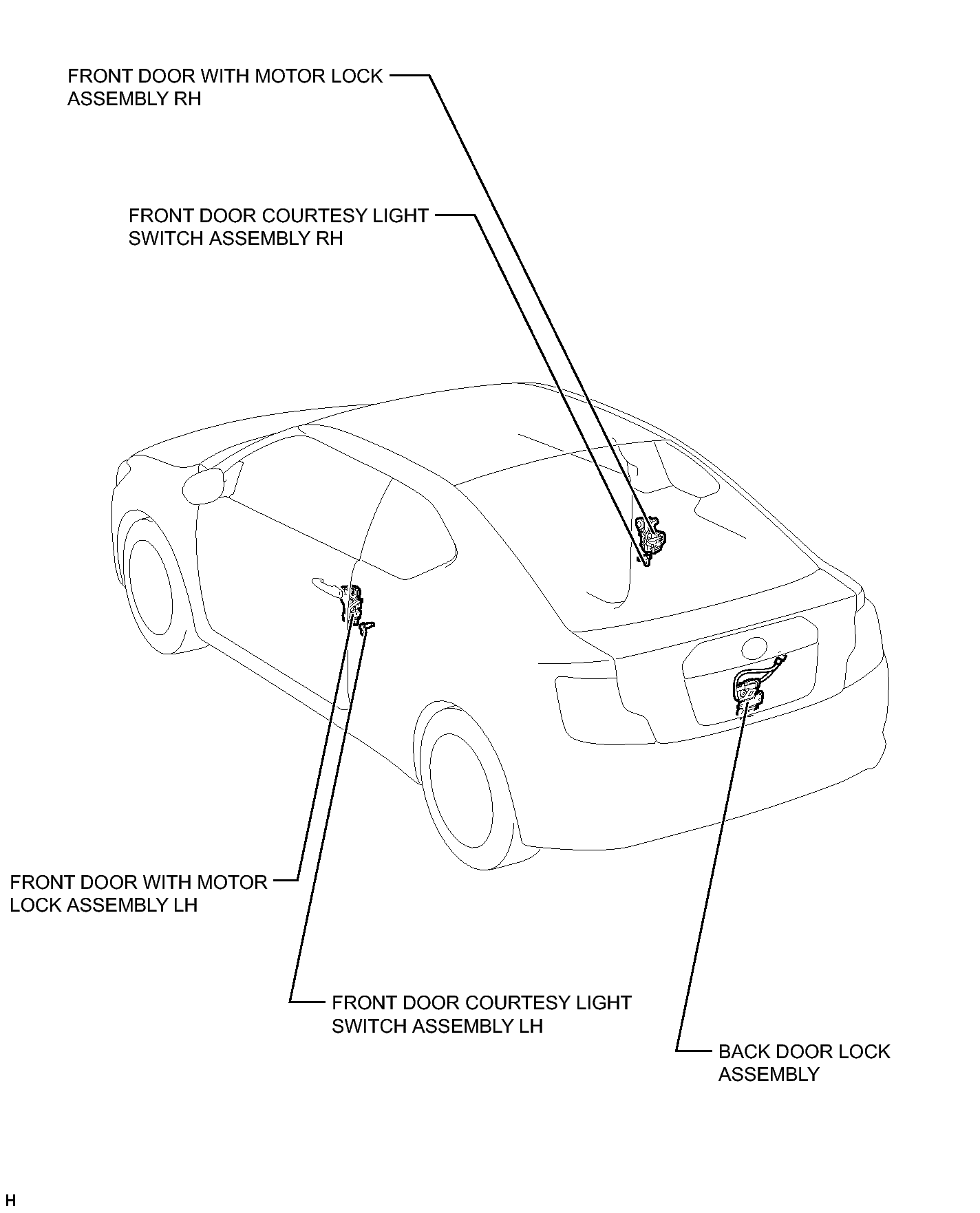

Fig 1: Identifying Lighting System Components Location (2 Of 3)
GTY313530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

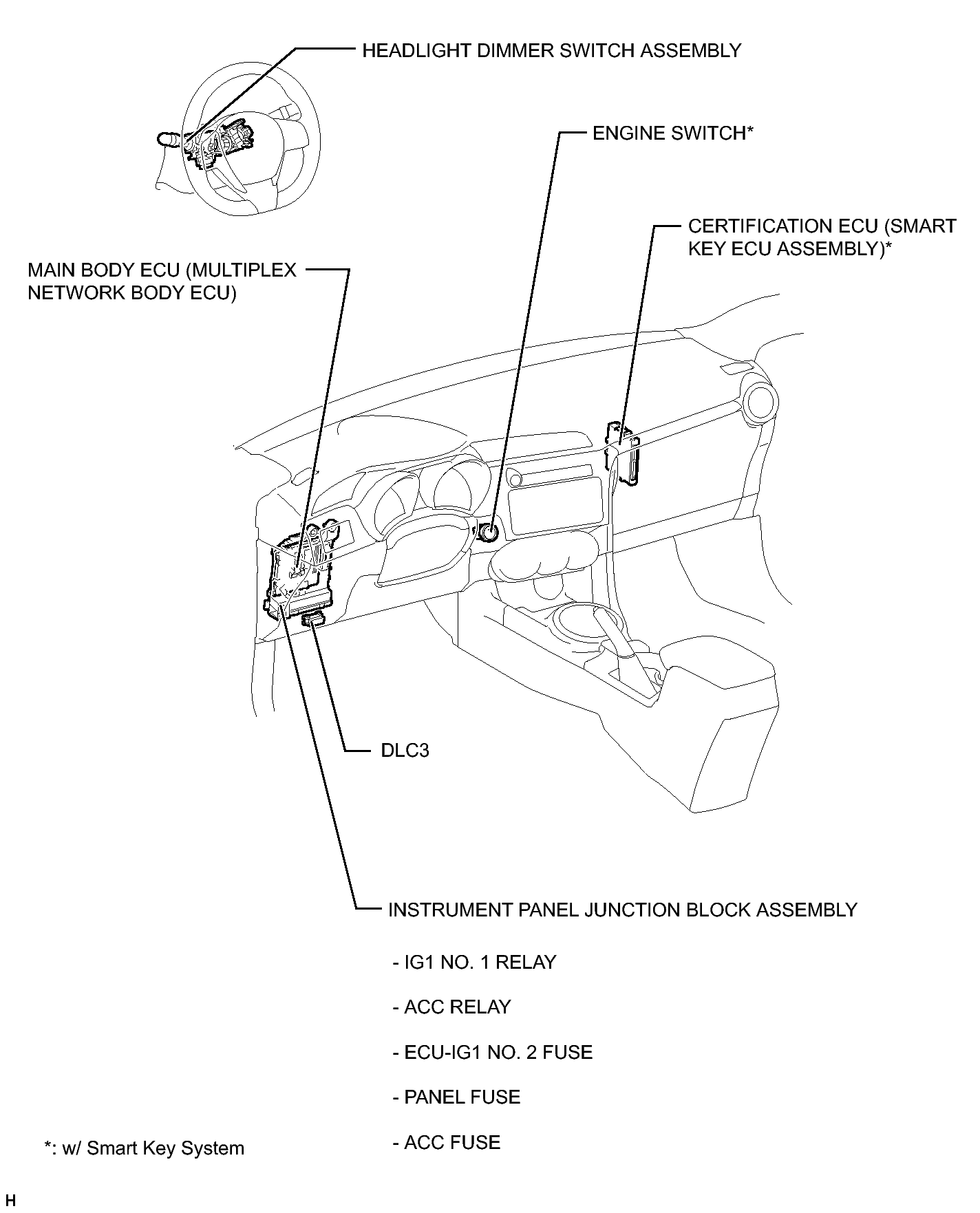

Fig 1: Identifying Lighting System Components Location (3 Of 3)
GTY310752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
