Parts Location: Illustration

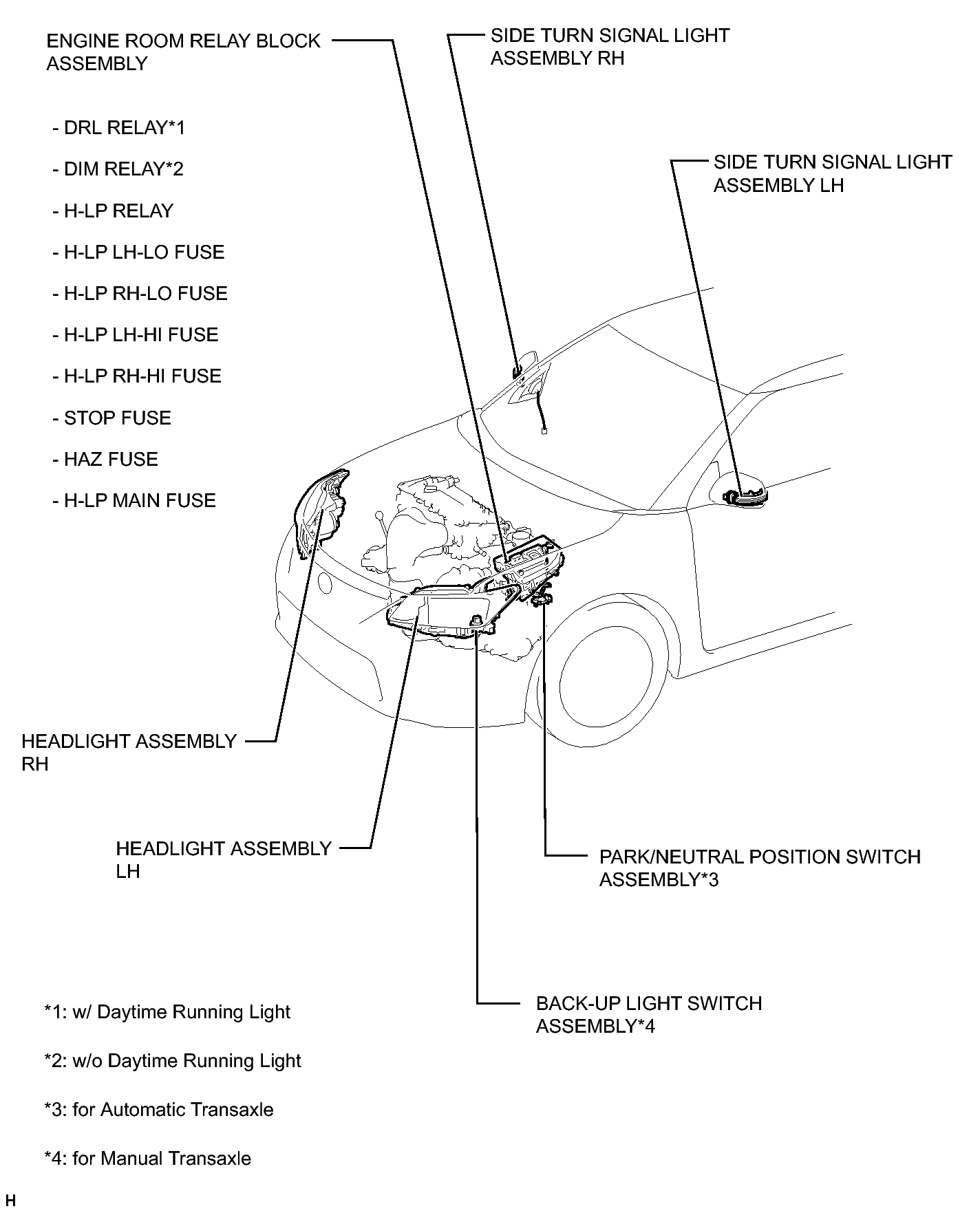

Fig 1: Identifying Lighting System Components Location (1 Of 3)
GTY310205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

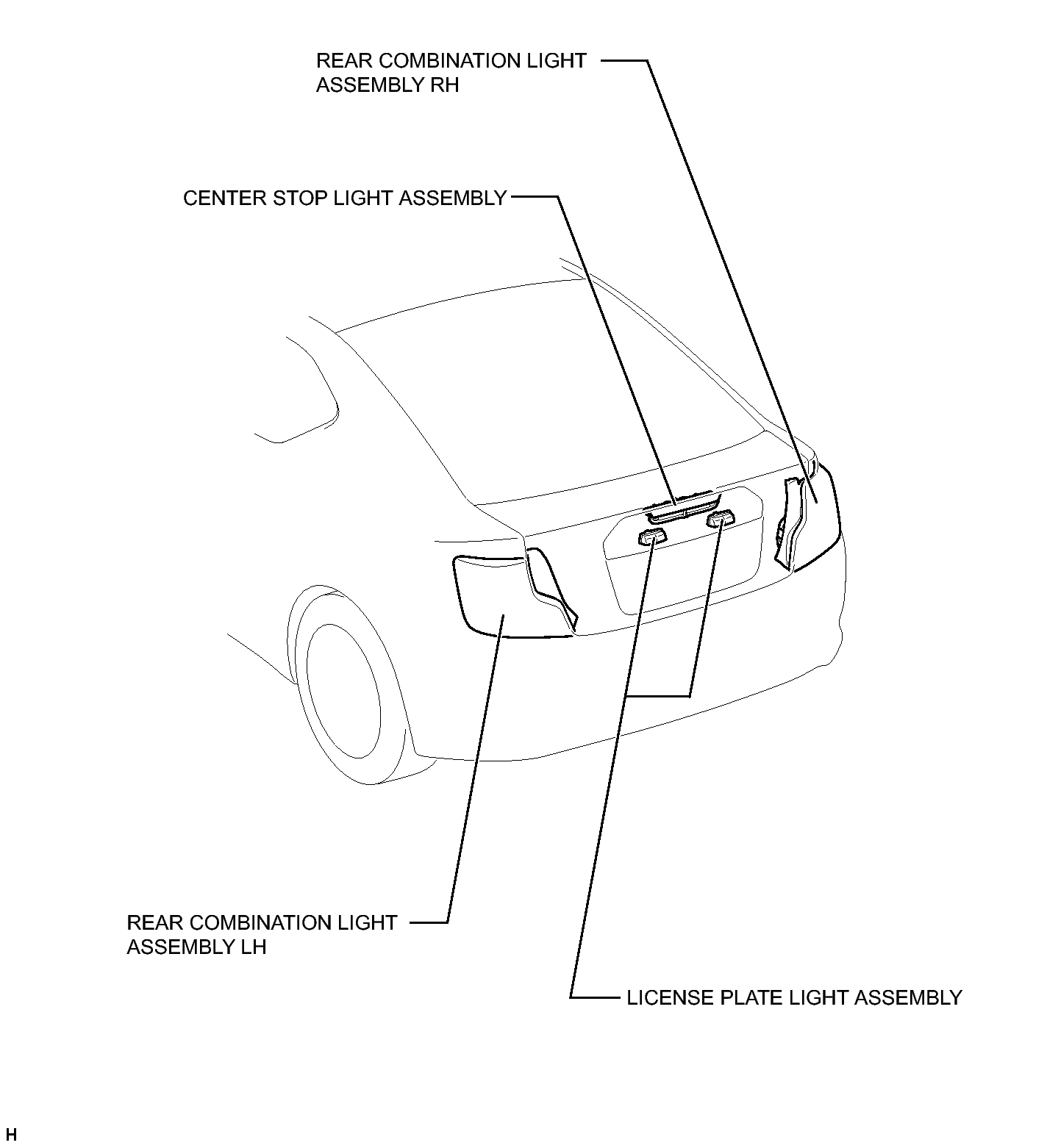

Fig 1: Identifying Lighting System Components Location (2 Of 3)
GTY311548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

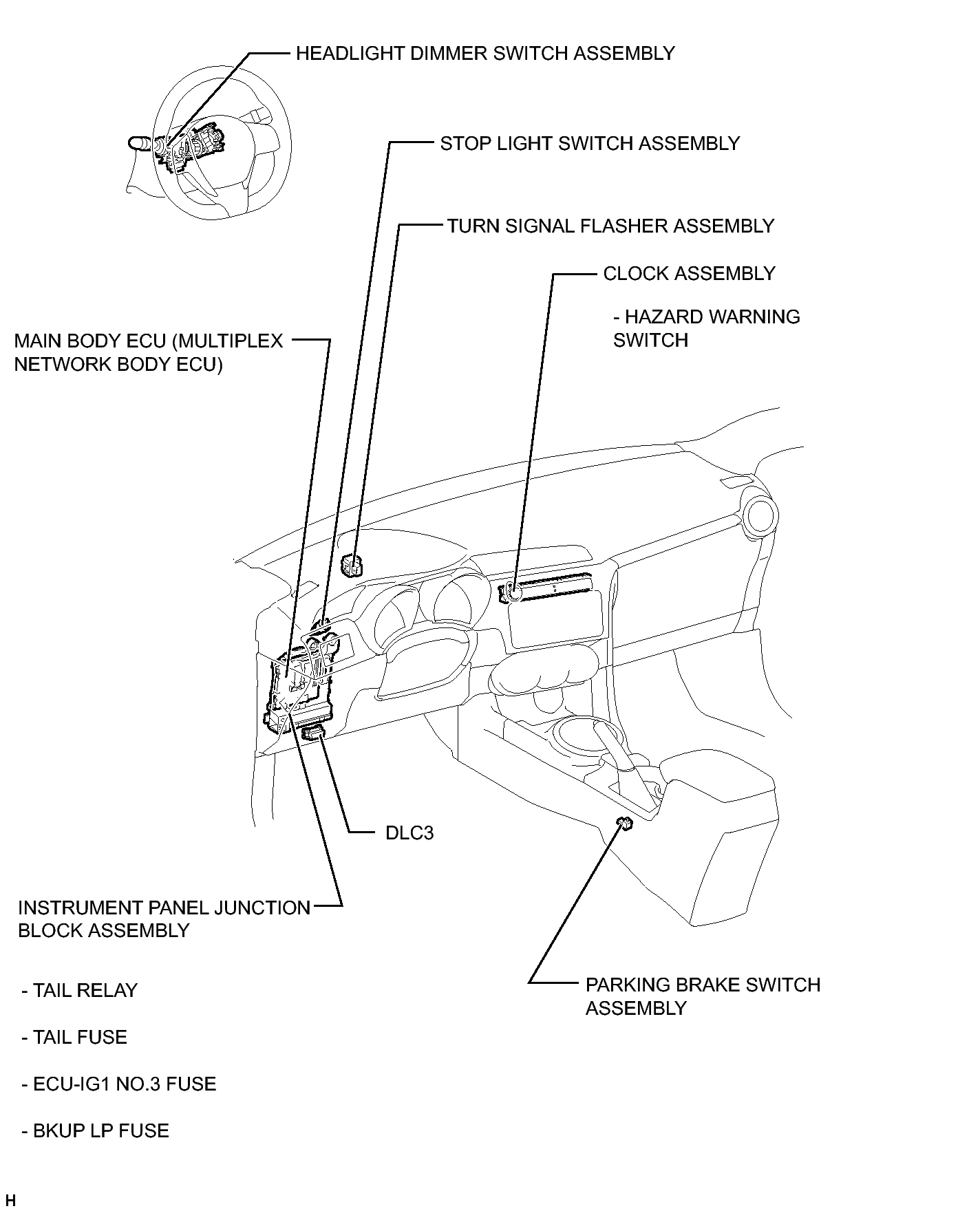

Fig 1: Identifying Lighting System Components Location (3 Of 3)
GTY344332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
