Daytime Running Light Relay Circuit: Wiring Diagram

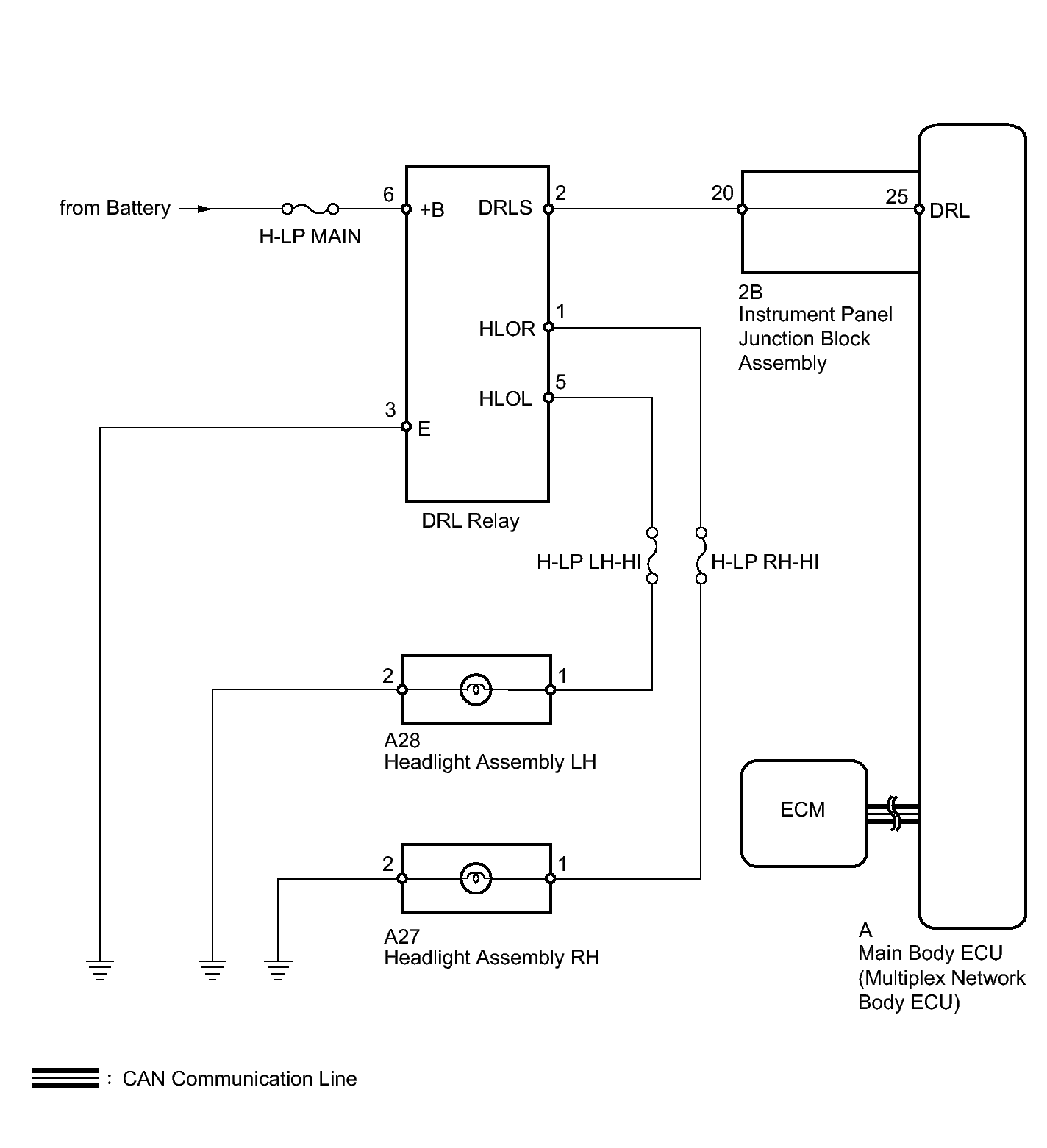

Fig 1: Daytime Running Light Relay Circuit Diagram

GTY313544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
