Short to B+ in CAN Bus Line: Wiring Diagram

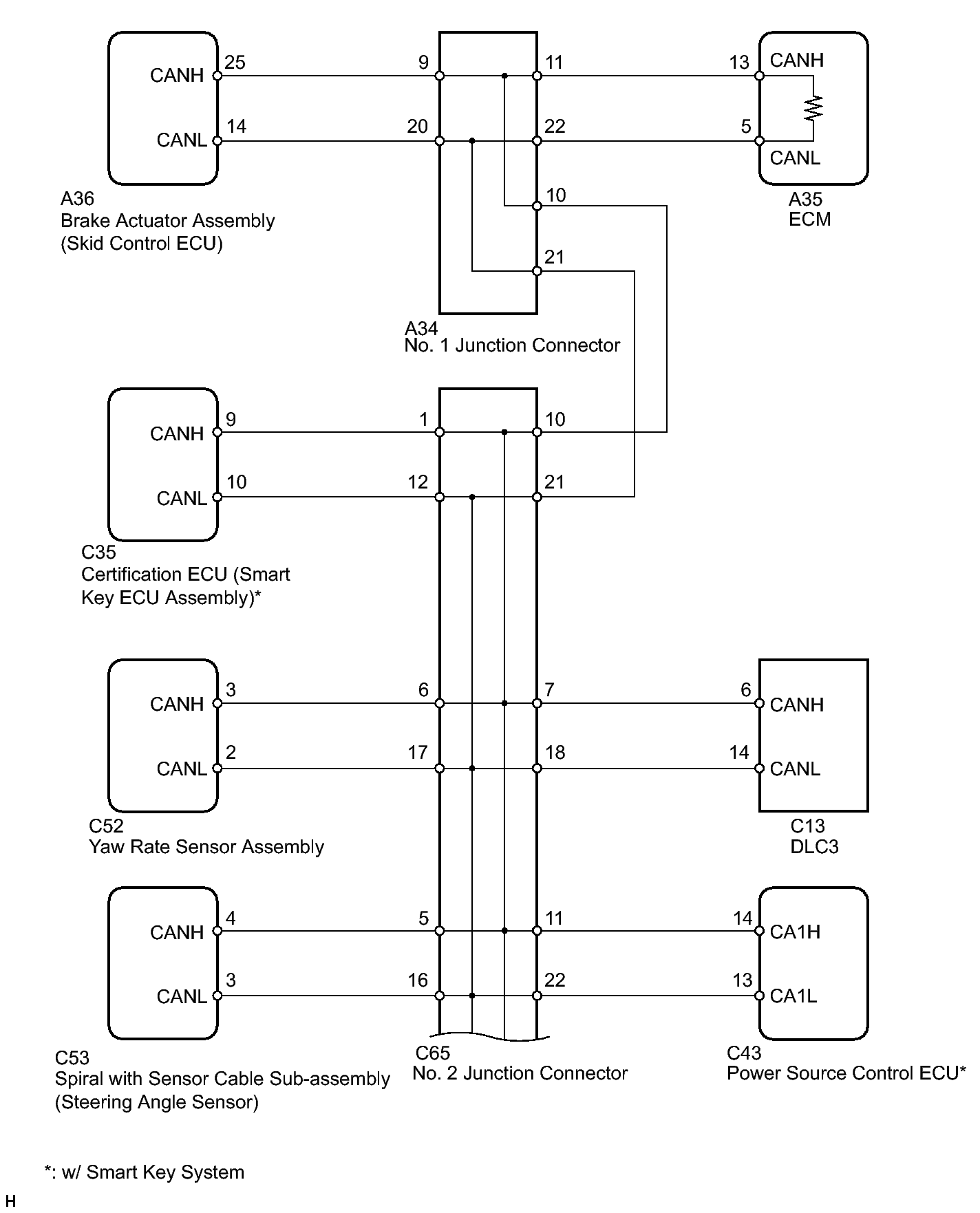

Fig 1: CAN Bus Line - Wiring Diagram (1 Of 2)
GTY312851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

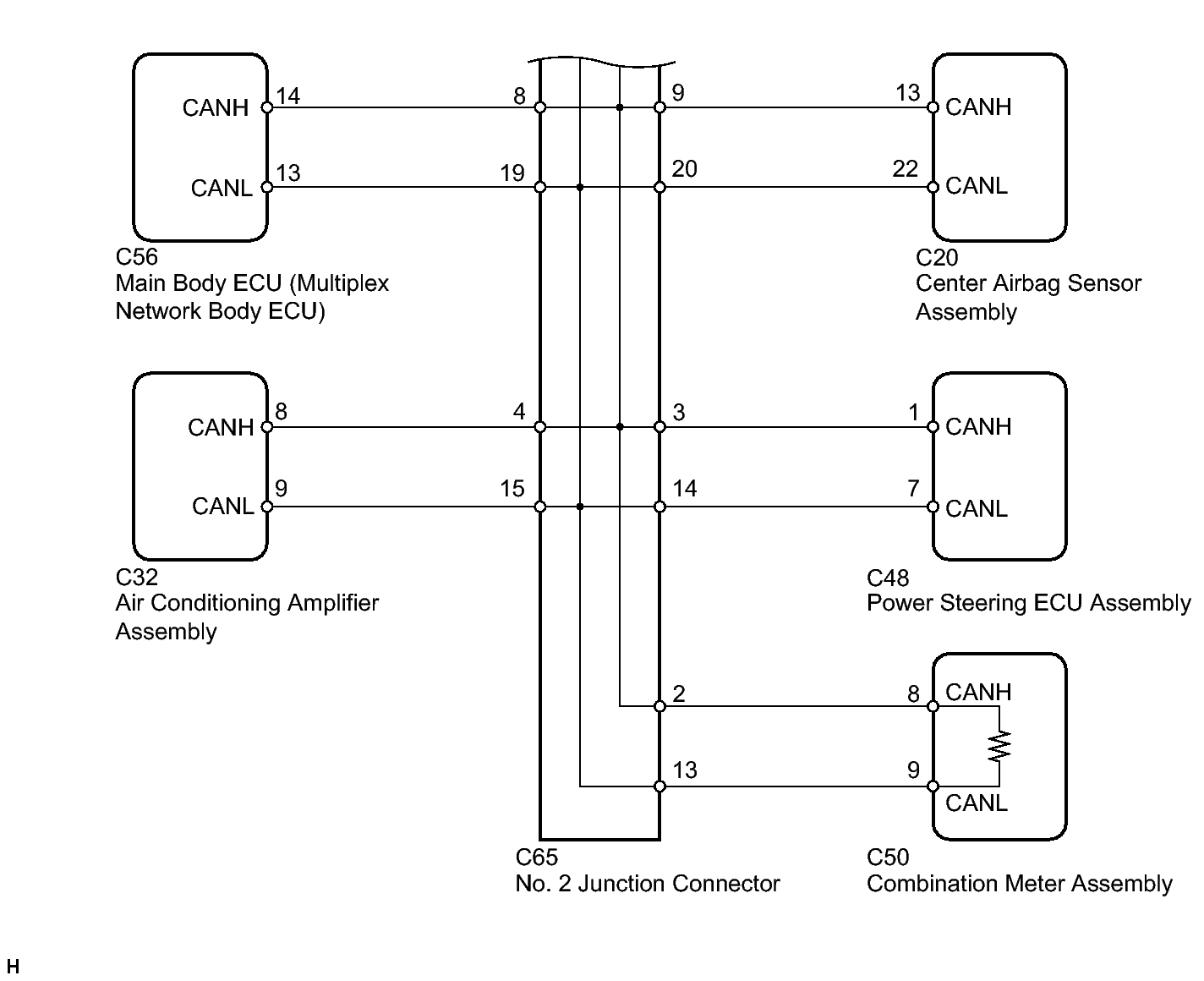

Fig 2: CAN Bus Line - Wiring Diagram (2 Of 2)
GTY312679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
