Location of Connector Joining Wire Harness and Wire HarnessLocation of Ground Points

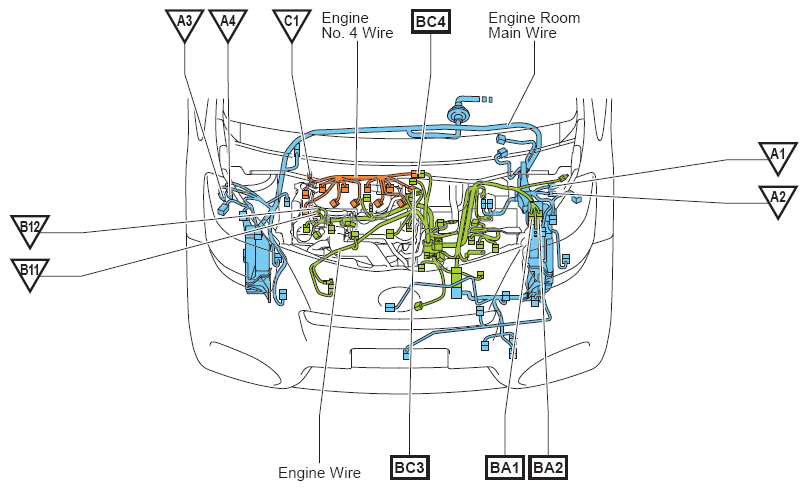

Fig 1: Locating Wiring Harnesses & Ground Points
G08759768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

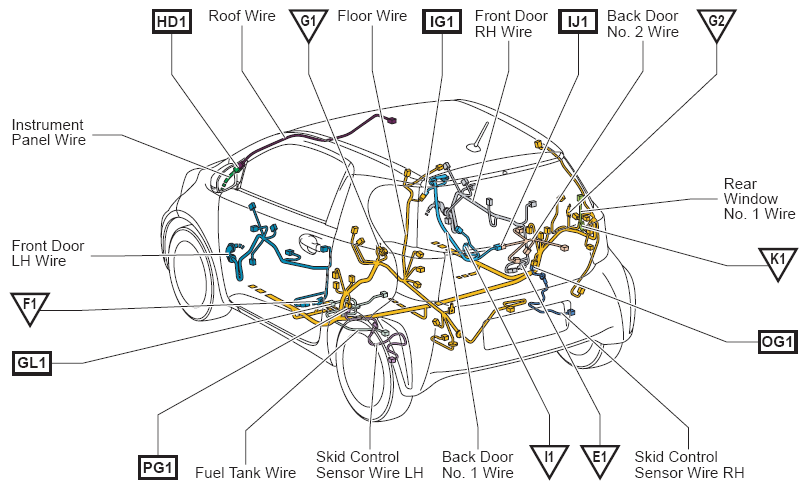

Fig 1: Locating Wiring Harnesses & Ground Points
G08759771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
