Glossary Of Terms And Symbols

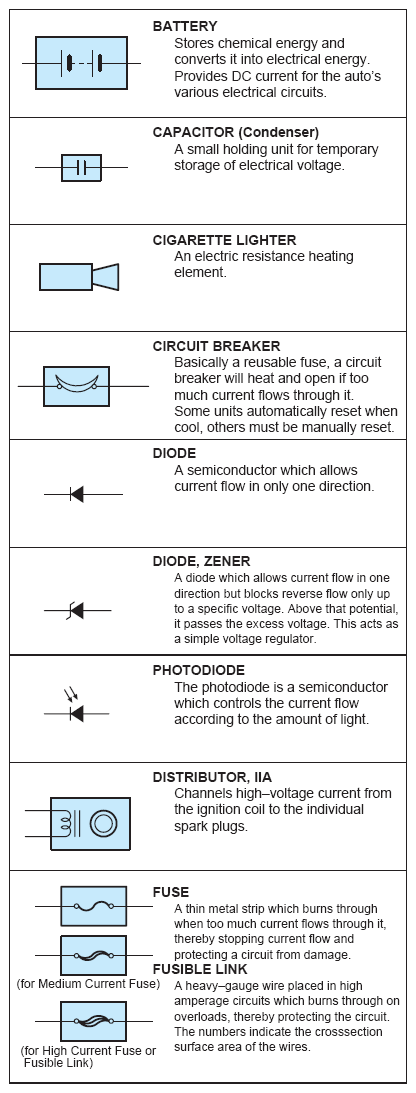

Fig 1: Glossary Of Terms And Symbols (1 Of 4)
G08759729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

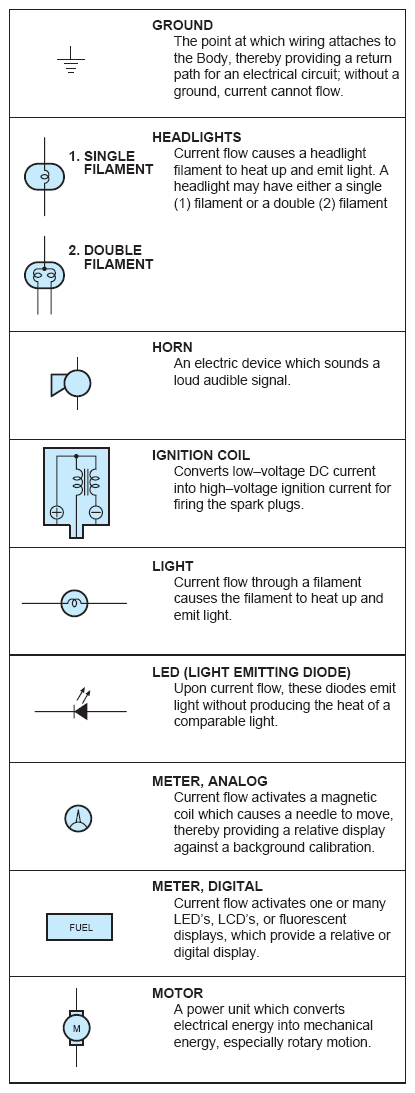

Fig 2: Glossary Of Terms And Symbols (2 Of 4)
G08759730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

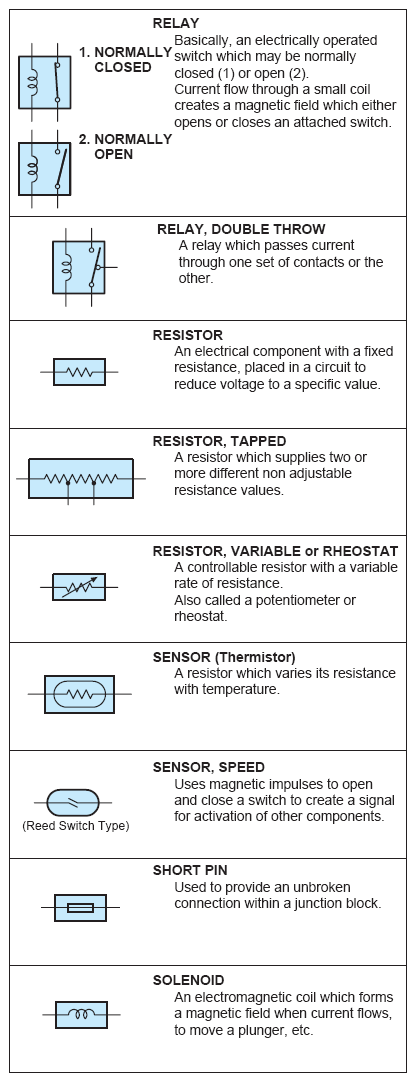

Fig 3: Glossary Of Terms And Symbols (3 Of 4)
G08759731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

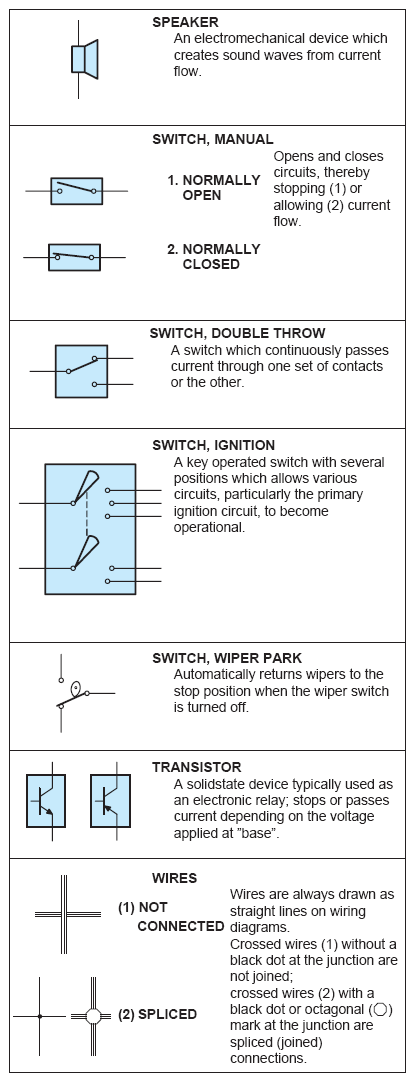

Fig 4: Glossary Of Terms And Symbols (4 Of 4)
G08759732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
