Light Control Rheostat: Components: Illustration

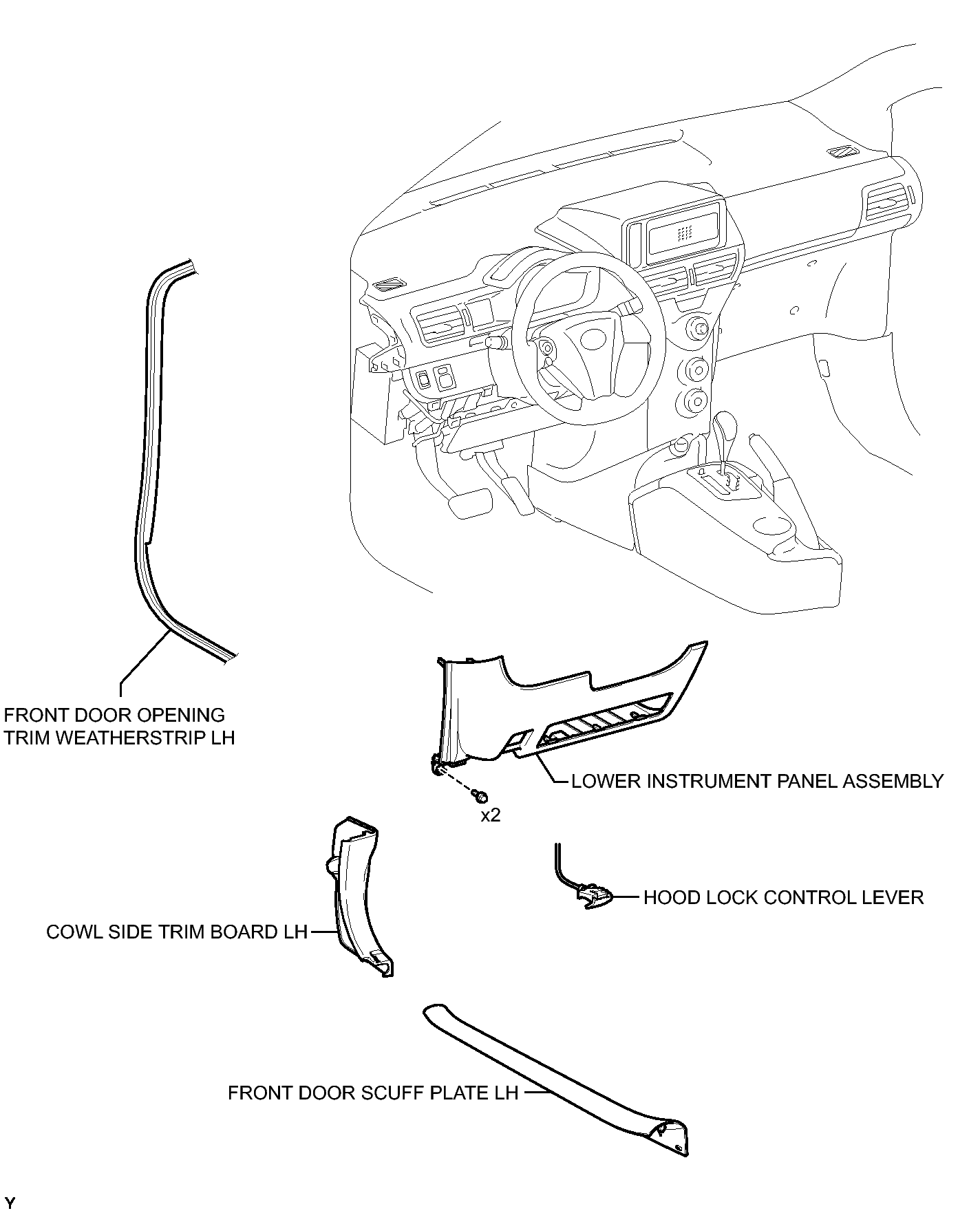

Fig 1: Identifying Light Control Rheostat Replacement Components (1 Of 2)
GTY345793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

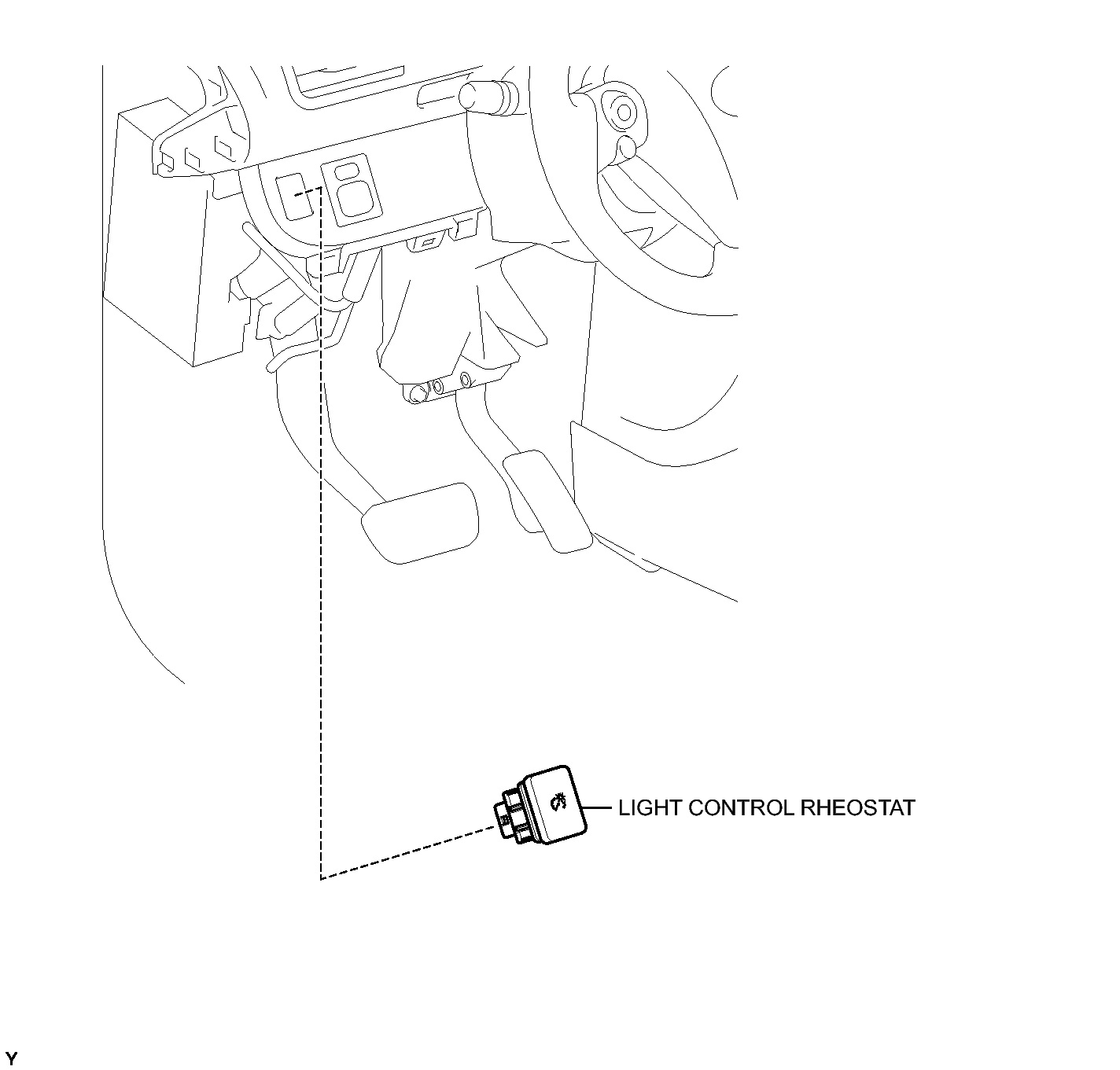

Fig 2: Identifying Light Control Rheostat Replacement Components (2 Of 2)
GTY346571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
