Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points

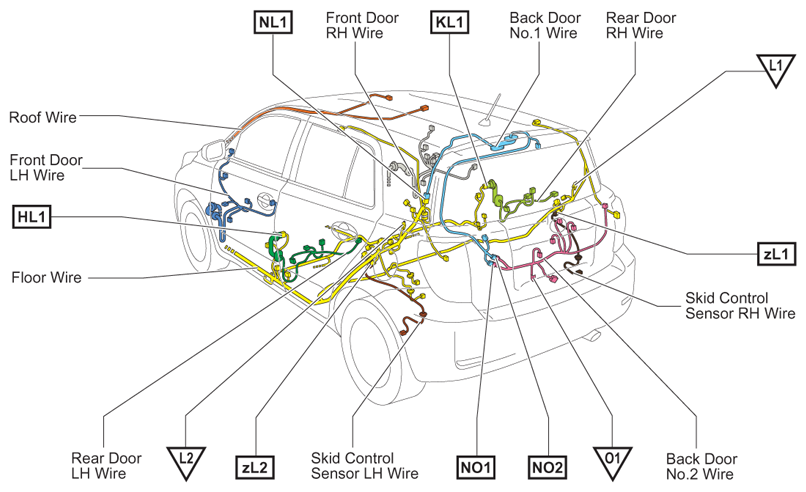

Fig 1: Locating Wire Harnesses And Ground Points

G07596070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
