Upper Instrument Panel: Installation: Installation

1. Install a new instrument panel cushion as shown in the illustration.
   Fig 1: Identifying No 5 Instrument Panel Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new instrument panel cushion as shown in the illustration.
   Fig 2: Identifying No 3 Instrument Panel Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new instrument panel cushion as shown in the illustration.
   Fig 3: Identifying No 2 Instrument Panel Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new instrument panel cushion as shown in the illustration.
   Fig 4: Identifying No 1 Instrument Panel Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new instrument panel cushion as shown in the illustration.
   Fig 5: Identifying Instrument Panel Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If there is excess on the edge of the instrument panel cushion, then wrap the excess cushion under the back of the instrument panel before installation.

1. Engage the 3 claws and install the instrument panel register.
   Fig 6: Identifying No. 1 Instrument Panel Register Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for both sides.

1. Install the heater to register duct with the 2 <A> screws.
   Fig 7: Locating No 1 Heater To Register Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the heater to register duct with the 2 <A> screws.
   Fig 8: Locating No 2 Heater To Register Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and 2 clips.
   Fig 9: Identifying No. 2 Instrument Panel Box Door Claws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument panel box door with the 2 <B> screws.

1. Install the cup holder with the 3 <A> screws.
   Fig 10: Locating Instrument Panel Cup Holder Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

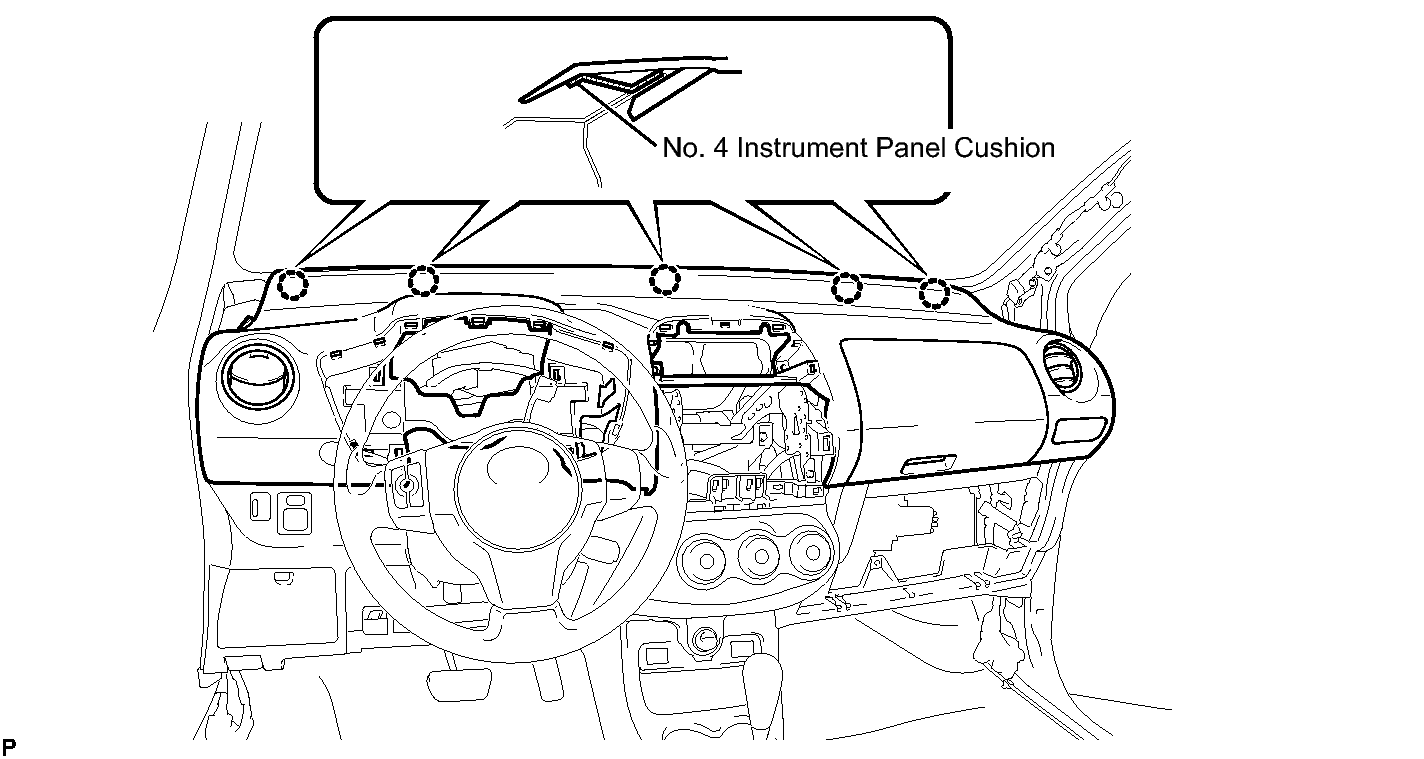

1. Engage the 5 claws at the front of the instrument panel.
   NOTE:

   If the No. 4 instrument panel cushion is peeling off or torn, then replace it with a new part.

   Fig 11: Identifying Upper Instrument Panel Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

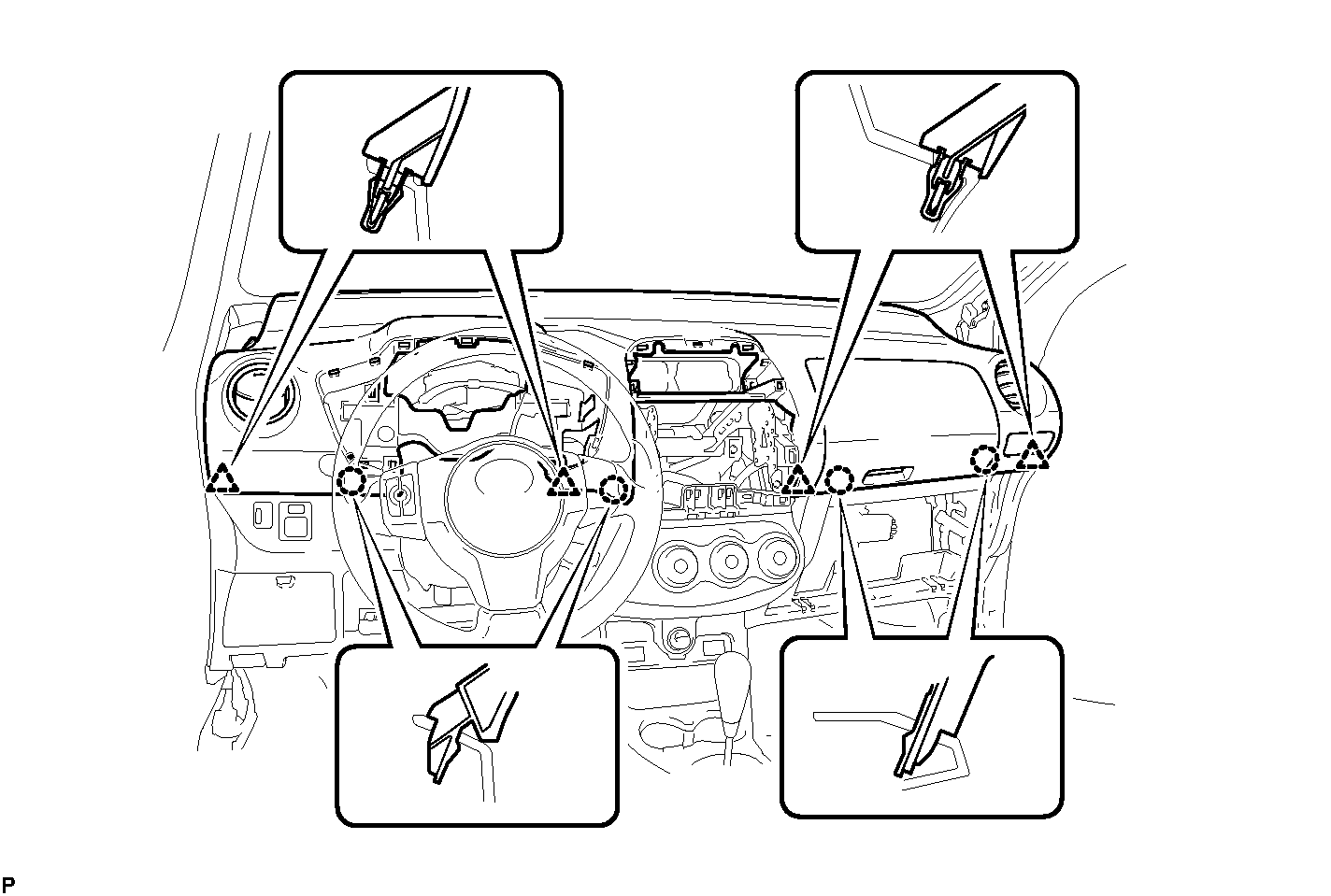

2. Engage the 4 clips and 4 claws at the rear of the upper instrument panel.
   Fig 12: Identifying Upper Instrument Panel Clips And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

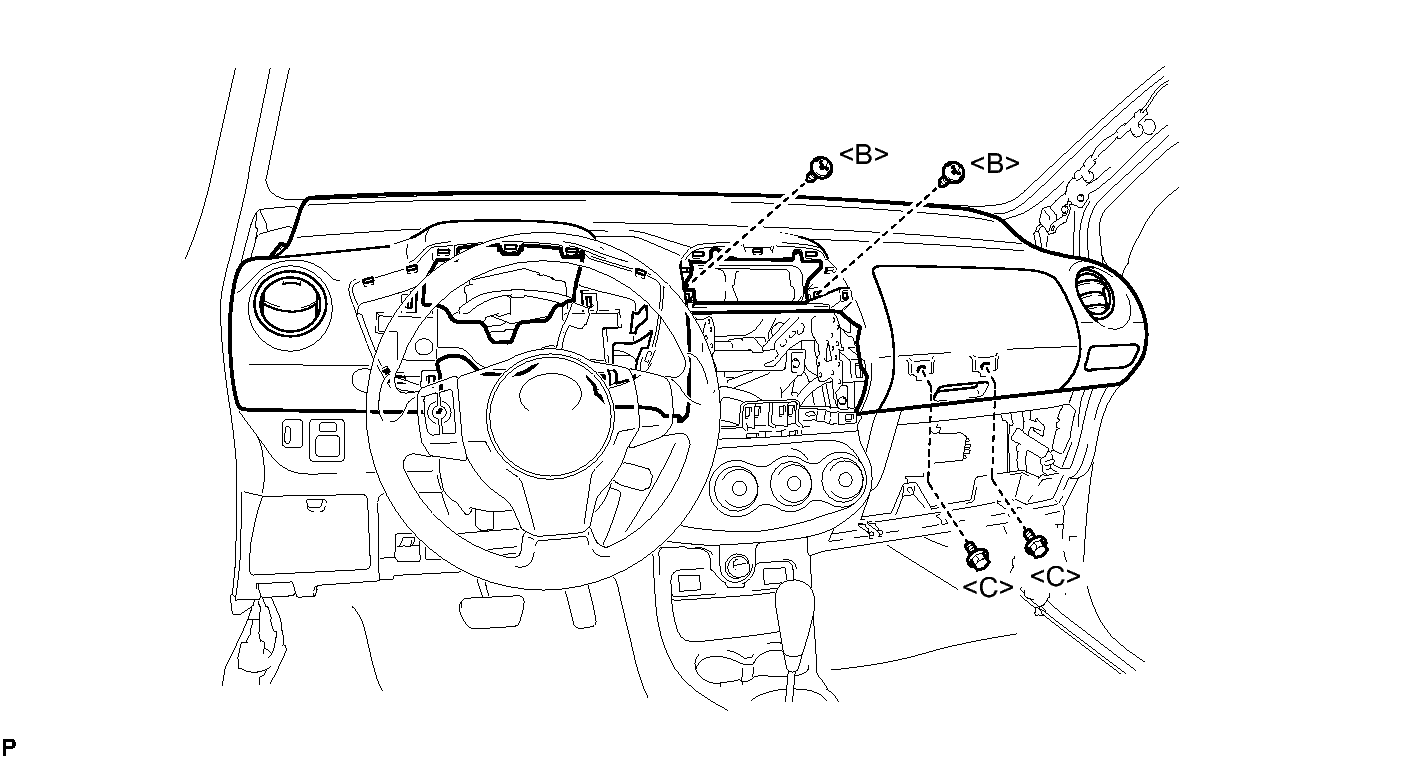

3. Install the upper instrument panel with the 2 <B> screws and 2 <C> bolts.
   Fig 13: Identifying Upper Instrument Panel Bolts And Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 20 N*m ( 204 kgf*cm, 15 in.*lbf)

   for bolt <C>

4. Connect the airbag connector and clamp.
   Fig 14: Locating Airbag Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Installing Glove Compartment Door Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 hinges horizontally to install the glove compartment door.
   NOTE:

   Engage the 2 hinges horizontally. Otherwise, the hinge may be damaged, making re-installation impossible.

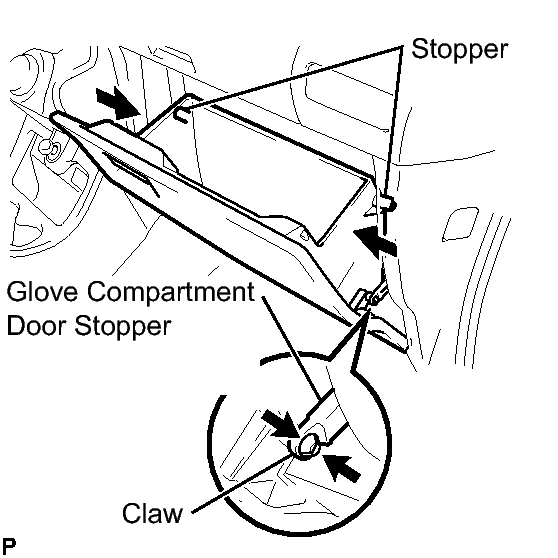

2. While pushing in the sides of the glove compartment door as indicated by the arrows in the illustration, close the door to engage it to the 2 stoppers.
   Fig 16: Installing Glove Compartment Door Assembly (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the glove compartment door stoppers onto the glove compartment door.

Fig 17: Identifying Instrument Cluster Finish Panel Retainer Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 6 claws and install the instrument cluster finish panel retainer.

Fig 18: Installing Instrument Cluster Finish Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 7 clips and 2 claws and install the instrument cluster finish center panel.

1. Install the front door opening trim weatherstrip RH.

1. Install the front door opening trim weatherstrip LH.

Torque: 5.4 N*m ( 55 kgf*cm, 48 ft.*lbf)

Refer to DIAGNOSIS SYSTEM
