Lower Instrument Panel: Installation: Installation

INSTALL POWER OUTLET SOCKET COVER . Refer to INSTALLATION - Step 1
INSTALL POWER OUTLET SOCKET ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL CUSHION

Fig 1: Identifying Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the cushion to the lower instrument panel.
INSTALL STEREO JACK ADAPTER ASSEMBLY

Fig 2: Identifying Stereo Jack Adapter (AUX) Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 2 claws and install the stereo jack adapter (AUX).
2. Engage the 2 claws and install the stereo jack adapter (i Pod).

  Fig 3: Identifying Stereo Jack Adapter (I Pod) Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LIGHT CONTROL RHEOSTAT

Fig 4: Identifying Light Control Rheostat Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 2 claws and install the light control rheostat.
INSTALL OUTER MIRROR SWITCH ASSEMBLY

Fig 5: Identifying Outer Mirror Switch Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 2 claws and install the outer mirror switch.
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL

Fig 6: Identifying No. 1 Instrument Cluster Finish Panel Seal Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 4 claws and install the instrument cluster finish panel seal.
INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

Fig 7: Locating Glove Compartment Door Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the claw and install the glove compartment door stopper.
INSTALL LOWER INSTRUMENT PANEL
1. Engage the 4 claws and install the lower instrument panel.
2. Connect the 7 clamps.

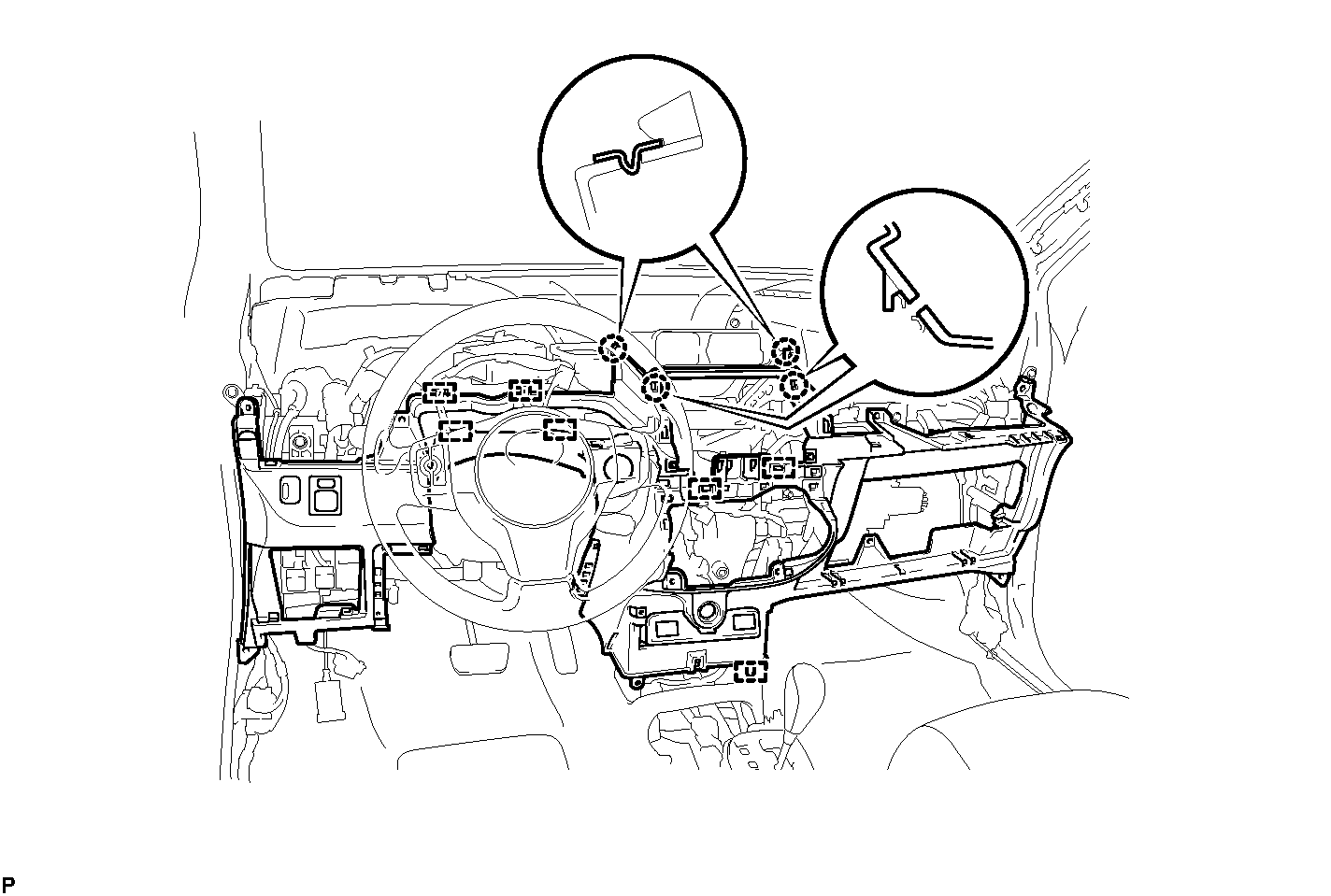

  Fig 8: Identifying Lower Instrument Panel Clamps And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the lower instrument panel with the 5 <D> or <E> screws, <H> screw, <I> screw, and 2 <F> bolts.
  HINT:

  The <E> screws have larger diameter and should be used for repair installation.

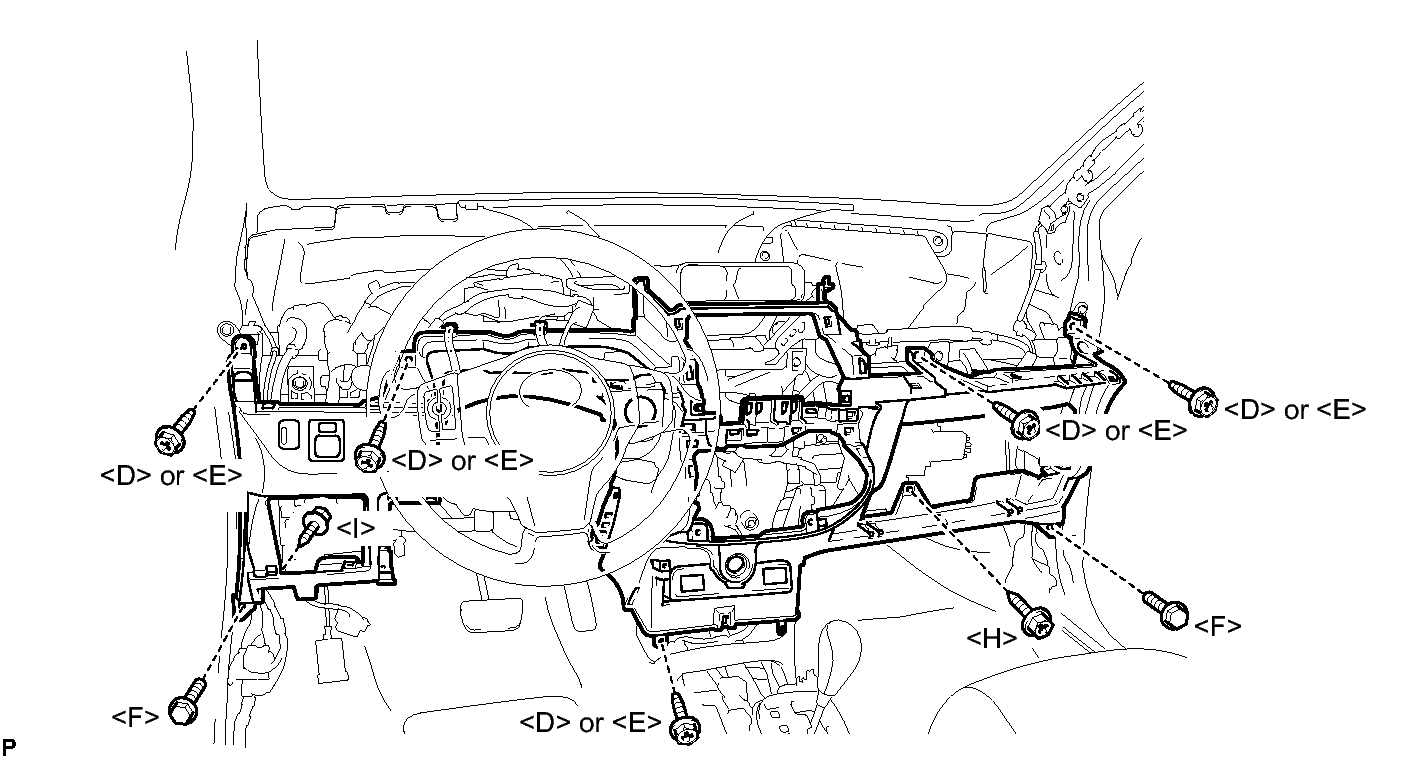

  Fig 9: Identifying Lower Instrument Panel Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws and install the DLC3 connector.

  Fig 10: Identifying DLC3 Connector Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTENNA CORD SUB-ASSEMBLY

Fig 11: Identifying Antenna Cord Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the 3 clamps and install the antenna cord.
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Fig 12: Identifying Hood Lock Control Lever Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 3 claws to connect the hood lock control lever.
INSTALL NO. 1 RADIO BRACKET

Fig 13: Locating No 1 Radio Bracket Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the radio bracket with the 2 bolts.
INSTALL NO. 2 RADIO BRACKET

Fig 14: Locating No 2 Radio Bracket Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the radio bracket with the 2 bolts.
INSTALL INSTRUMENT PANEL BOX

Fig 15: Installing Instrument Panel Box
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Insert the instrument panel box.
2. Engage the 2 hinges with the instrument panel open.
3. Close the instrument panel box.
INSTALL INSTRUMENT PANEL UNDER TRAY

Fig 16: Identifying Instrument Panel Under Tray Clip And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the clip and 6 claws and install the instrument panel under tray.
2. Install the 2 <A> screws.
3. Engage the 4 claws and install the instrument panel under tray.

  Fig 17: Identifying Instrument Panel Under Tray Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE BOX

Fig 18: Identifying Front Console Box Clip And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the clip and 2 claws and install the front console box.
2. Install the 2 <H> screws.
CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL AIR CONDITIONING PANEL ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL CONSOLE BOX CARPET . Refer to INSTALLATION - Step 2
INSTALL REAR CONSOLE BOX COVER . Refer to INSTALLATION - Step 3
INSTALL UPPER CONSOLE PANEL . Refer to INSTALLATION - Step 4
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 5
INSTALL COWL SIDE TRIM BOARD RH . Refer to INSTALLATION - Step 45
INSTALL COWL SIDE TRIM BOARD LH . Refer to INSTALLATION - Step 46
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 48
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 47
INSTALL FRONT DOOR SCUFF PLATE RH . Refer to INSTALLATION - Step 49
INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 50
INSTALL UPPER INSTRUMENT PANEL See step 12
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY See step 13
INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER See step 14
INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY See step 15
INSTALL COMBINATION METER ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL INSTRUMENT CLUSTER FINISH PANEL . Refer to INSTALLATION - Step 2
INSTALL FRONT PILLAR GARNISH RH . Refer to INSTALLATION - Step 22
INSTALL FRONT PILLAR GARNISH LH . Refer to INSTALLATION - Step 23
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH See step 20
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH See step 21
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m ( 55 kgf*cm, 48 ft.*lbf)
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
